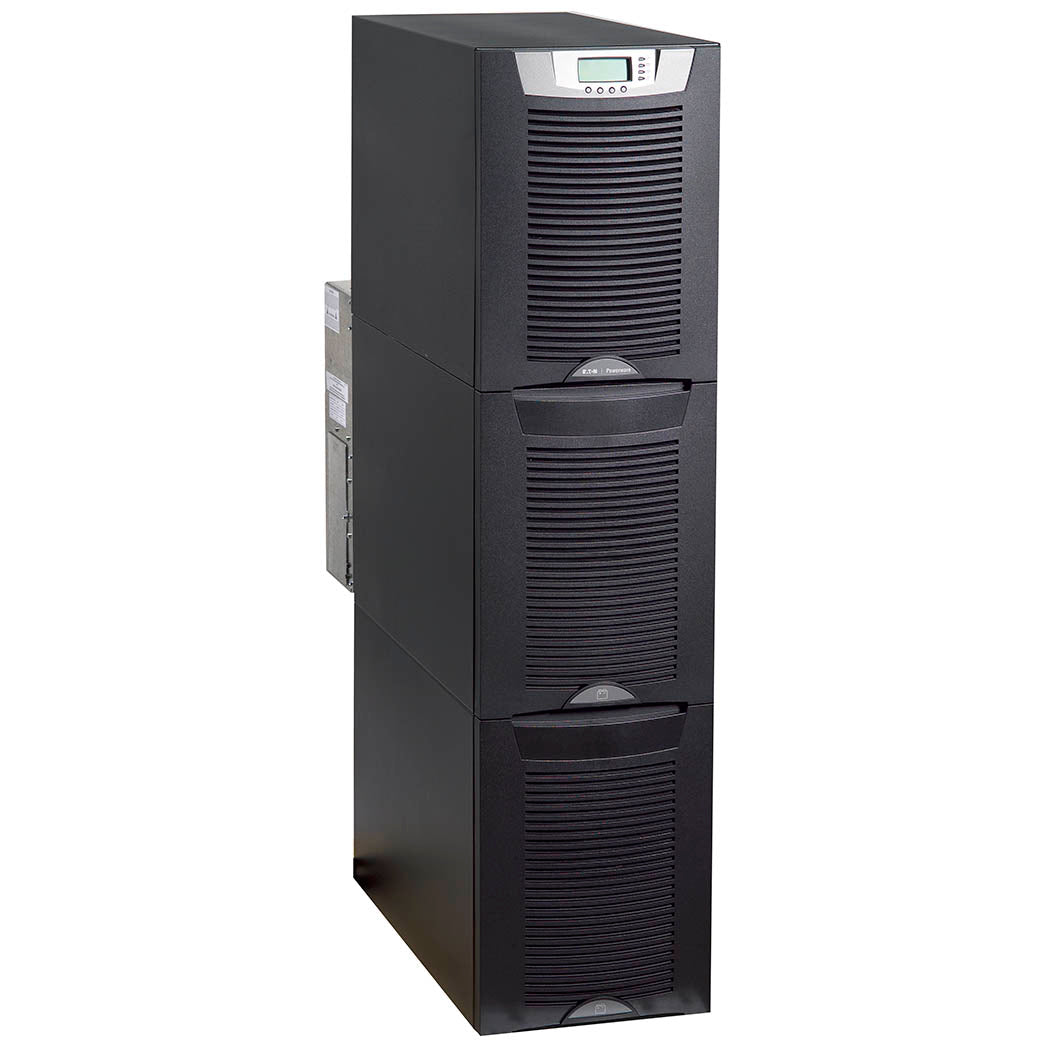

The Eaton 9355 UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solution. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.
|
|
| Power | |
| Ratings (kVA/Watts) | 10 kVA/9 kW and 15 kVA/13.5 kW at 0.9 power factor |
| Topology | Double conversion |
| Electrical Input | |
| Nominal input voltage | 208V/120V or 220V/127V three-phase 400V models also available |
| Input voltage range | -15%, +10% from nominal at 100% load without depleting battery |
| Operating frequency | 50/60 Hz (45 to 65 Hz) |
| Input power factor | >0.99 typical, >0.96 frequency converter |
| Input current distortion | 5% THD |
| Electrical Output | |
| Nominal output voltage | 208/120, 220/127 Vac |
| Output voltage regulation | ±1% static; ±5% dynamic at 100% resistive load change, <1 ms response time |
| Efficiency | 91%, typical |
| Heat dissipation (BTU/hr) | 10 kVA models: 3,798 @ 208V and 220V input 6,294 @ 480V and 600V (with input isolation transformer) 15 kVA models: 5,122 @ 208V and 220V input 8,134 @ 480V and 600V (with input isolation transformer) |
| Battery | |
| Battery type | 9 Ah, sealed, lead-acid, maintenance-free |
| Battery runtime | See battery backup time chart |
| Battery management | ABM technology |
| Battery replacement | Field-replaceable |
| Charger | Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current) |
| Start-on-battery | Allows start of UPS without utility input |
| General | |
| Diagnostics | Full system self-test at startup |
| UPS bypass | Automatic on overload or UPS failure |
| Parallel for redundancy | Yes, using Powerware Hot Sync technology and capacity |
| Dimensions and weights | See model selection table |
| Overload (normal operation) | 150% for 5 sec / 125% for 1 min (online), 110% for 10 min |
| Communications | |

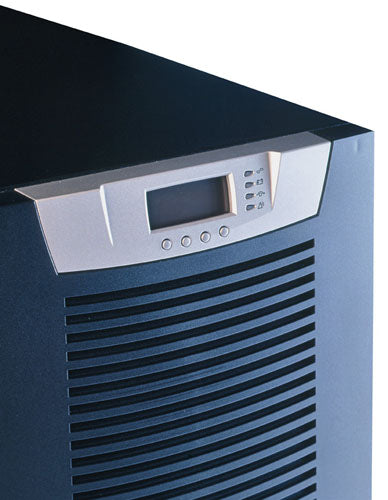

| LCD display | Graphical LCD with blue backlight |
| LEDs | (4) LEDs for notice and alarm |
| Audible alarms | Yes |
| Communication ports | (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
| Communication slots | (2) X-Slot communication bays |
| Power management software | Bundled Software Suite CD |
| Environmental | |
| Operating temperature | 50–104ºF (10–40ºC), 45ºC with 7.5% derating; Optimal battery performance: 77ºF (25ºC) |
| Storage temperature | 32–77ºF (0–25ºC); Recommended battery storage: 59–77ºF (15–25ºC) |
| Relative humidity | 0–95%, non-condensing |
| Audible noise | <56 dBA at 1 meter (noiseless room) typical |
| Altitude | 9,843 ft. (3000m) without derating |
| Certifications | |
| Safety certifications | UL1778 5th Edition, CSA C22.2 No. 107.3-14 |
| EMC compliance | 47 CFR Part 15/ICES-003 Class A |
| Quality | ISO 9001:2015, ISO 14001:2004 |
| Surge | ANSI C62.41 Category B3, IEC 61000-4-5 |
| Markings | cULus |
1. Due to continuous product improvements, program specifications are subject to change without notice.
Model Selection Table
| Power Rating (kVA/kW)1 |
Description | Input/Output Voltage |
Part Number2 | Base Runtime | Dimensions (HxWxD, in.) |
Weight (lb.)3 |
| 10 / 9 | 2-high w/32 battery | 208/208 | KA1011100000010 | 8 | 32.2 x 12.0 x 33.5 | 373.0 |
| 10 / 9 | 3-high w/64 battery | 208/208 | KA1012100000010 | 22 | 47.8 x 12.0 x 33.5 | 609.0 |
| 10 / 9 | 2-high w/32 battery | 220/2204 | KA1011200000010 | 8 | 32.2 x 12.0 x 33.5 | 373.0 |
| 10 / 9 | 3-high w/64 battery | 220/2204 | KA1012200000010 | 22 | 47.8 x 12.0 x 33.5 | 609.0 |
| 10 / 9 | 3-high w/32 battery and input isolation transformer | 480/208 | KA1013400000010 | 8 | 47.8 x 12.0 x 33.5 | 577.0 |
| 10 / 9 | 3-high w/32 battery and input isolation transformer | 600/208 | KA1013600000010 | 8 | 47.8 x 12.0 x 33.5 | 577.0 |
| 15 / 13.5 | 2-high w/32 battery | 208/208 | KA1511100000010 | 4 | 32.2 x 12.0 x 33.5 | 373.0 |
| 15 / 13.5 | 3-high w/64 battery | 208/208 | KA1512100000010 | 13 | 47.8 x 12.0 x 33.5 | 609.0 |
| 15 / 13.5 | 2-high w/32 battery | 220/2204 | KA1511200000010 | 4 | 32.2 x 12.0 x 33.5 | 373.0 |
| 15 / 13.5 | 3-high w/64 battery | 220/2204 | KA1512200000010 | 13 | 47.8 x 12.0 x 33.5 | 609.0 |
| 15 / 13.5 | 3-high w/32 battery and input isolation transformer | 480/208 | KA1513400000010 | 4 | 47.8 x 12.0 x 33.5 | 577.0 |
| 15 / 13.5 | 3-high w/32 battery and input isolation transformer | 600/208 | KA1513600000010 | 4 | 47.8 x 12.0 x 33.5 | 577.0 |
