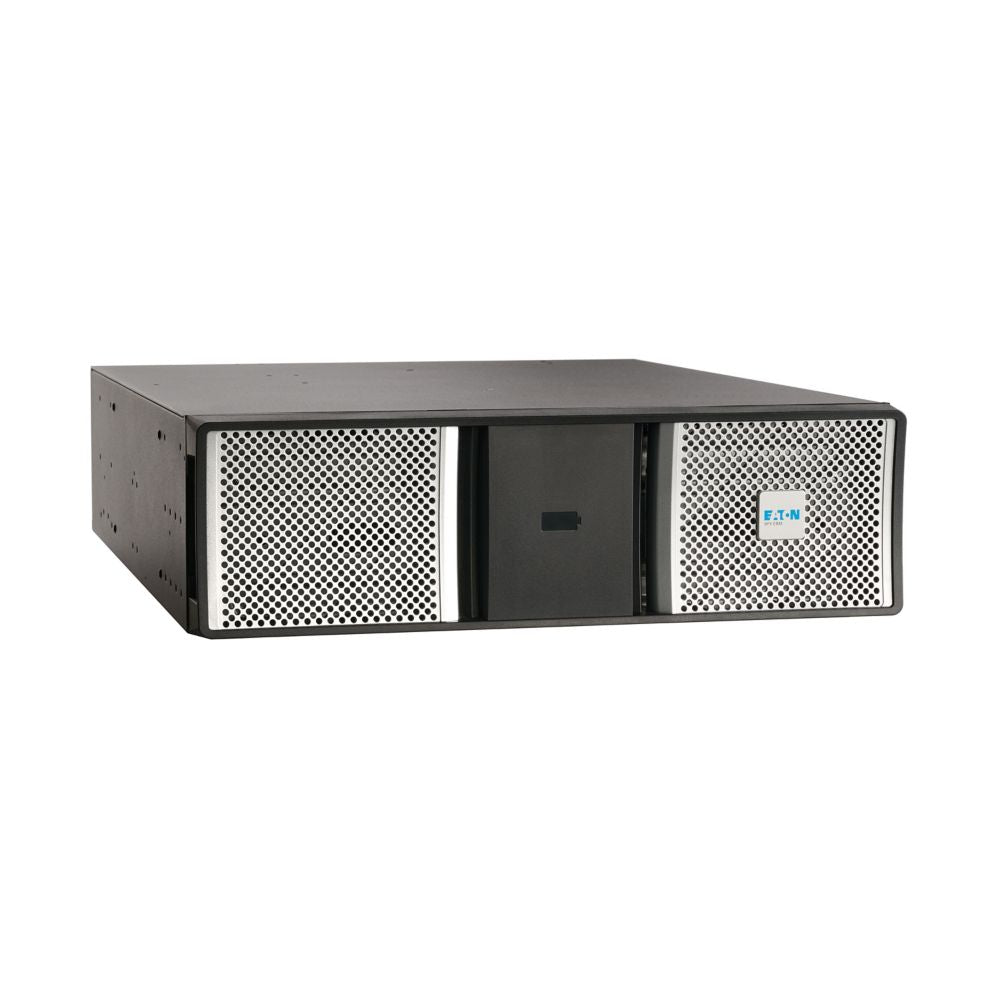

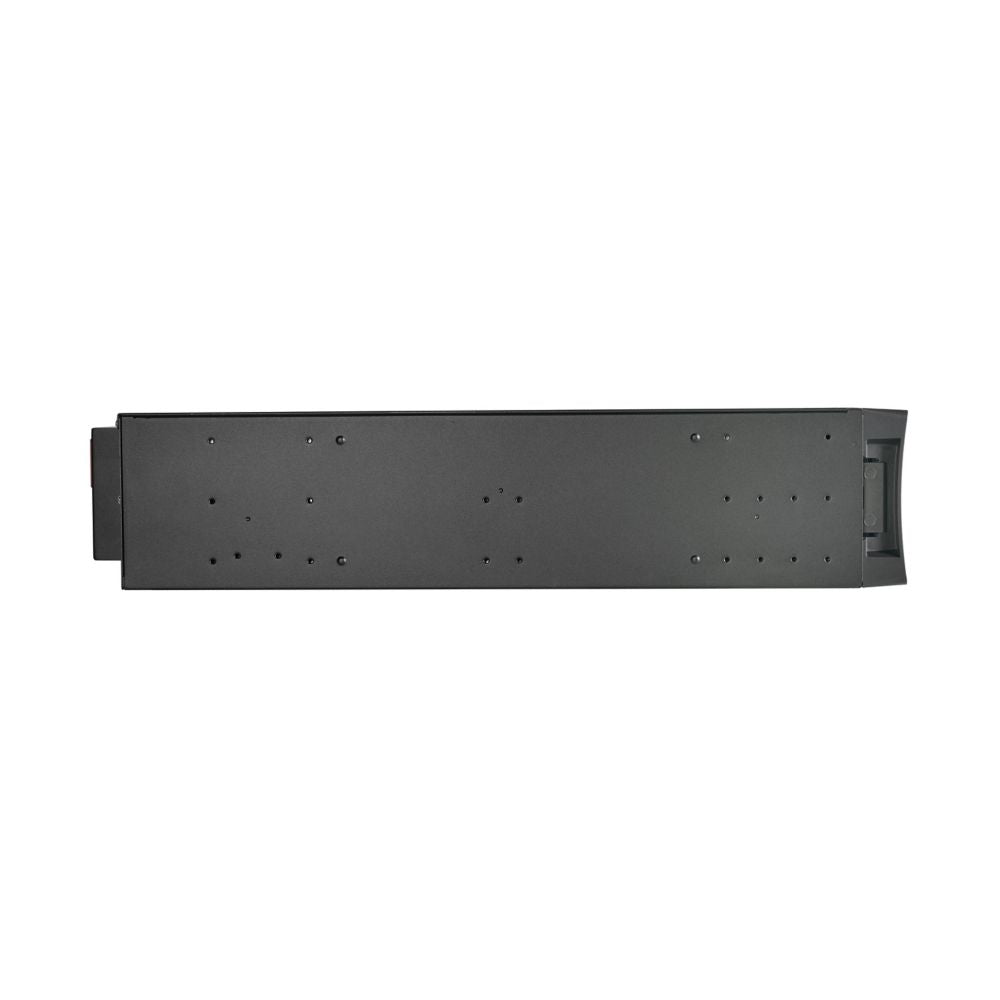

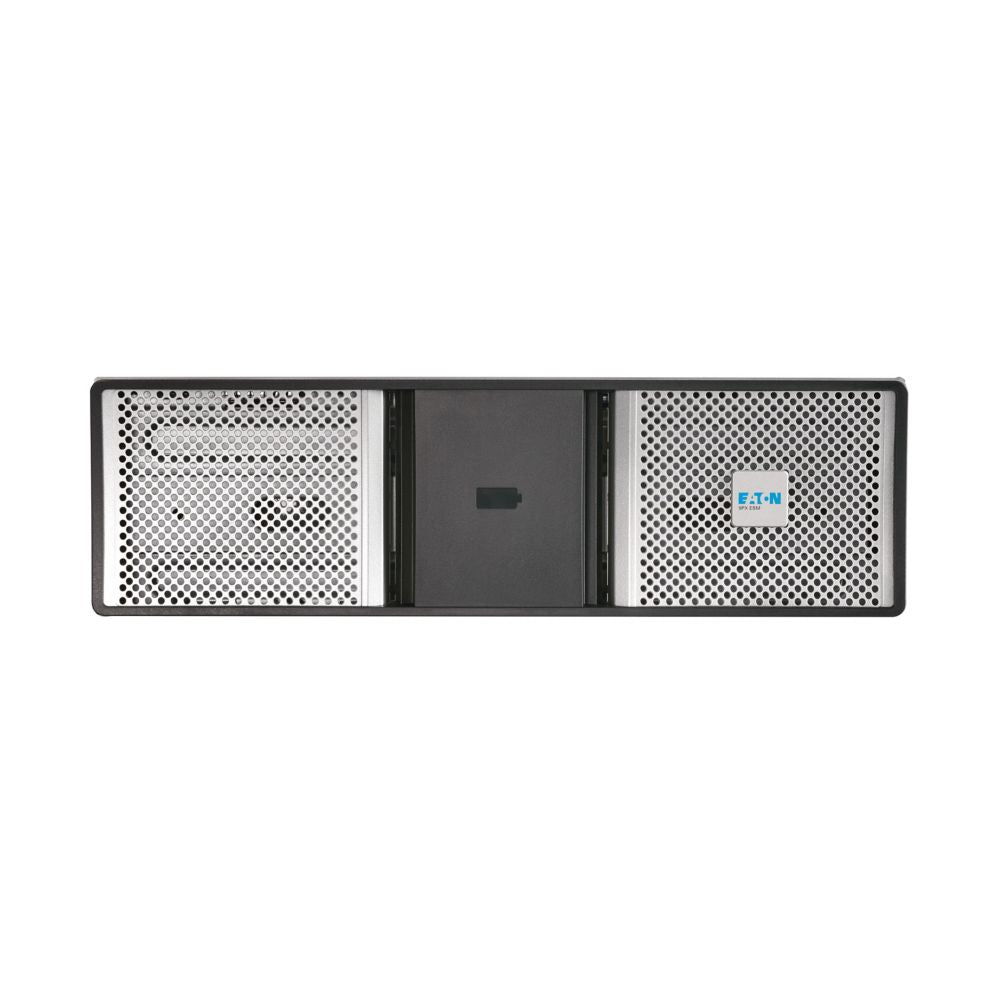

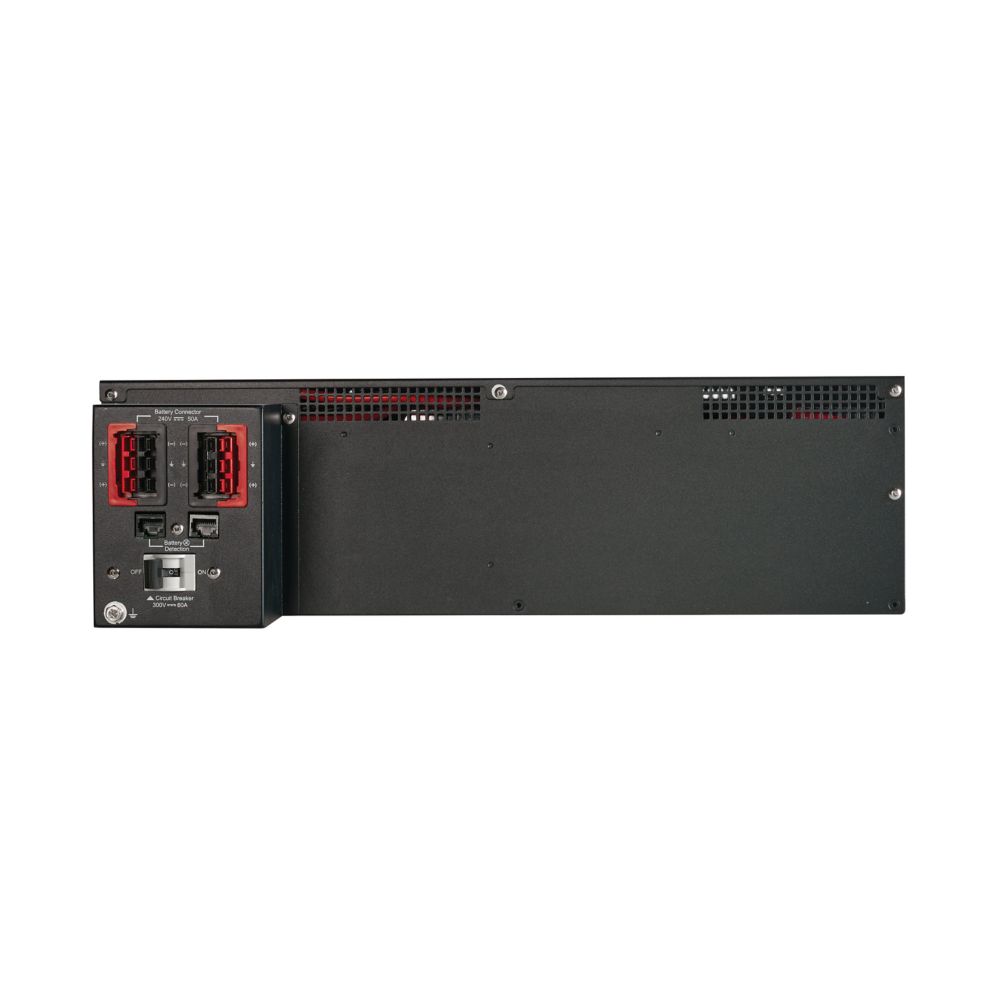

Eaton 9PX Gen 2 240V 3U Extended Battery Module (9PXEBM240RTG2)
Increase the runtime of your critical power system with the Eaton 9PXEBM240RTG2 Extended Battery Module (EBM). Designed specifically for compatible Eaton 9PX G2 8-11kVA UPS systems, this 240V external battery pack provides additional backup time during utility outages, allowing connected equipment to remain operational longer.
Key Features:
- Extends backup runtime for compatible Eaton 9PX G2 UPS systems
- Compatible with Eaton 9PX G2 8kVA and 11kVA 208/240V UPS models
- 240V sealed VRLA battery technology
- Hot-swappable battery module for simplified maintenance
- Supports up to 12 auto-detected external battery modules for maximum runtime

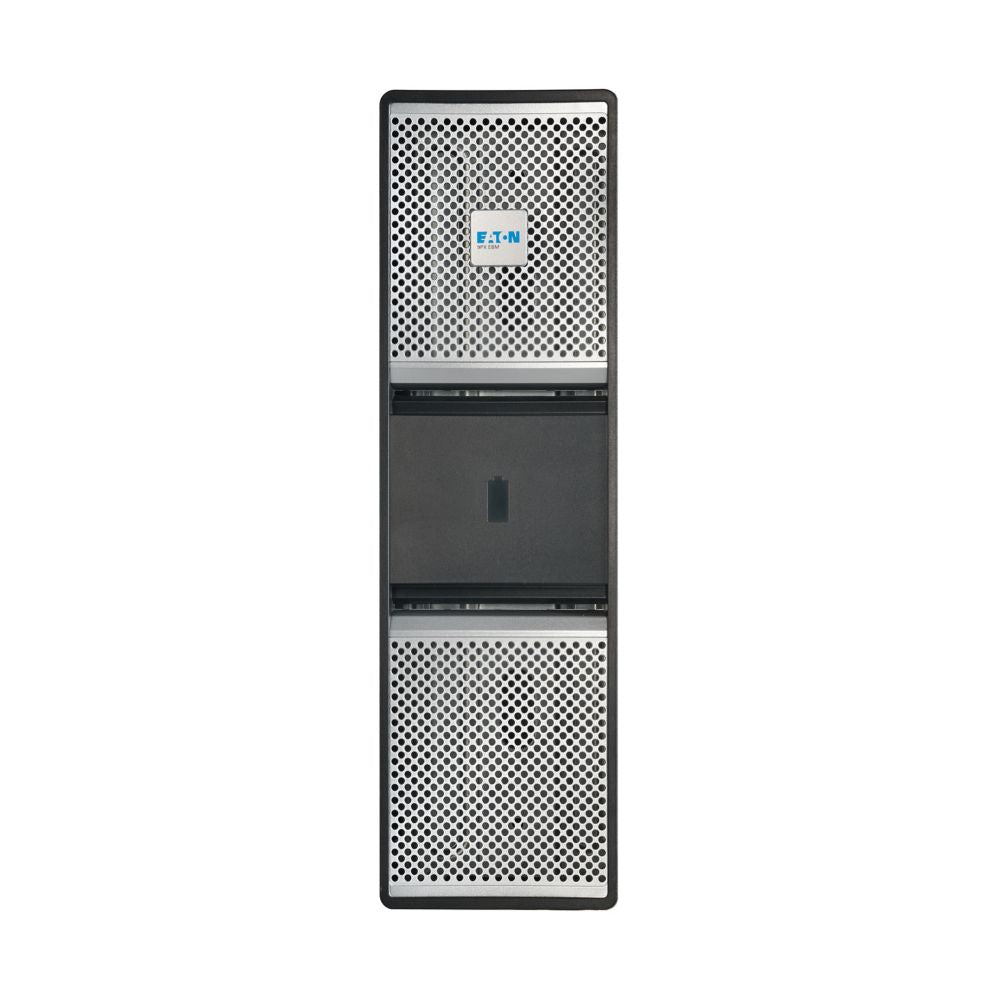

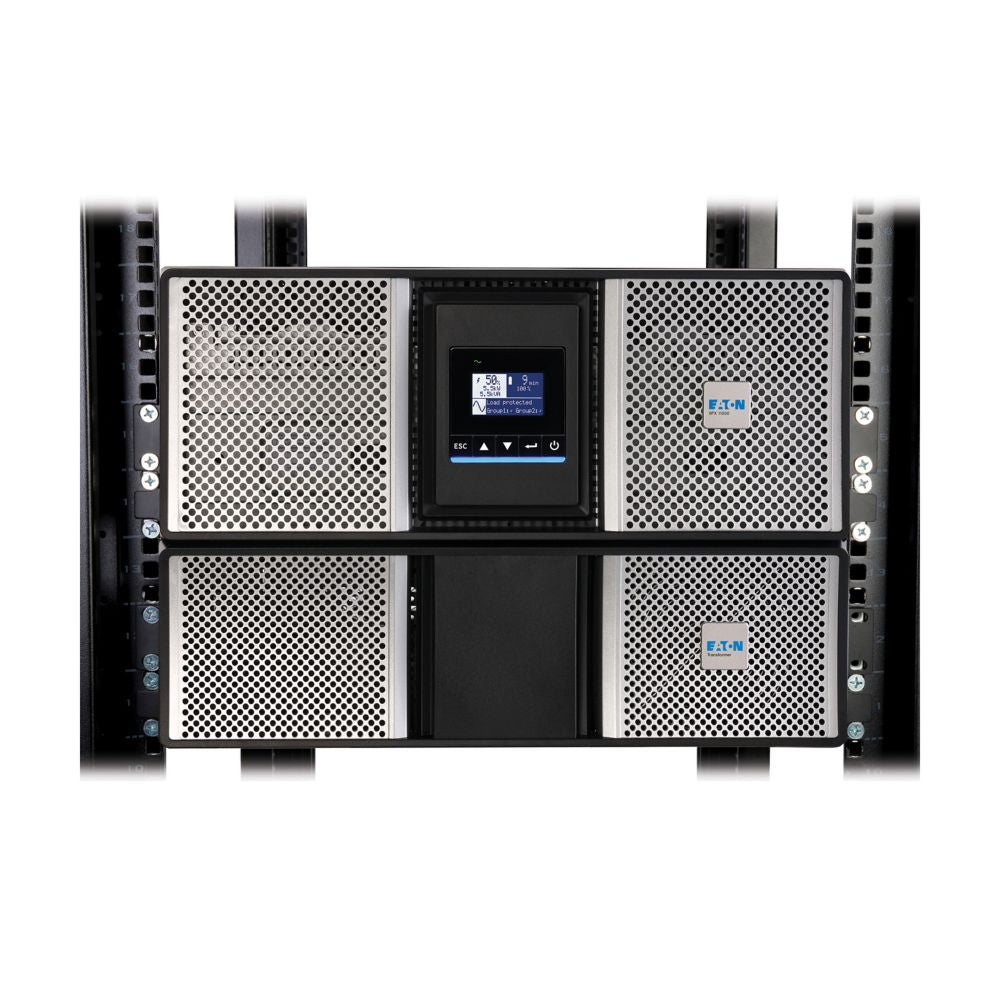

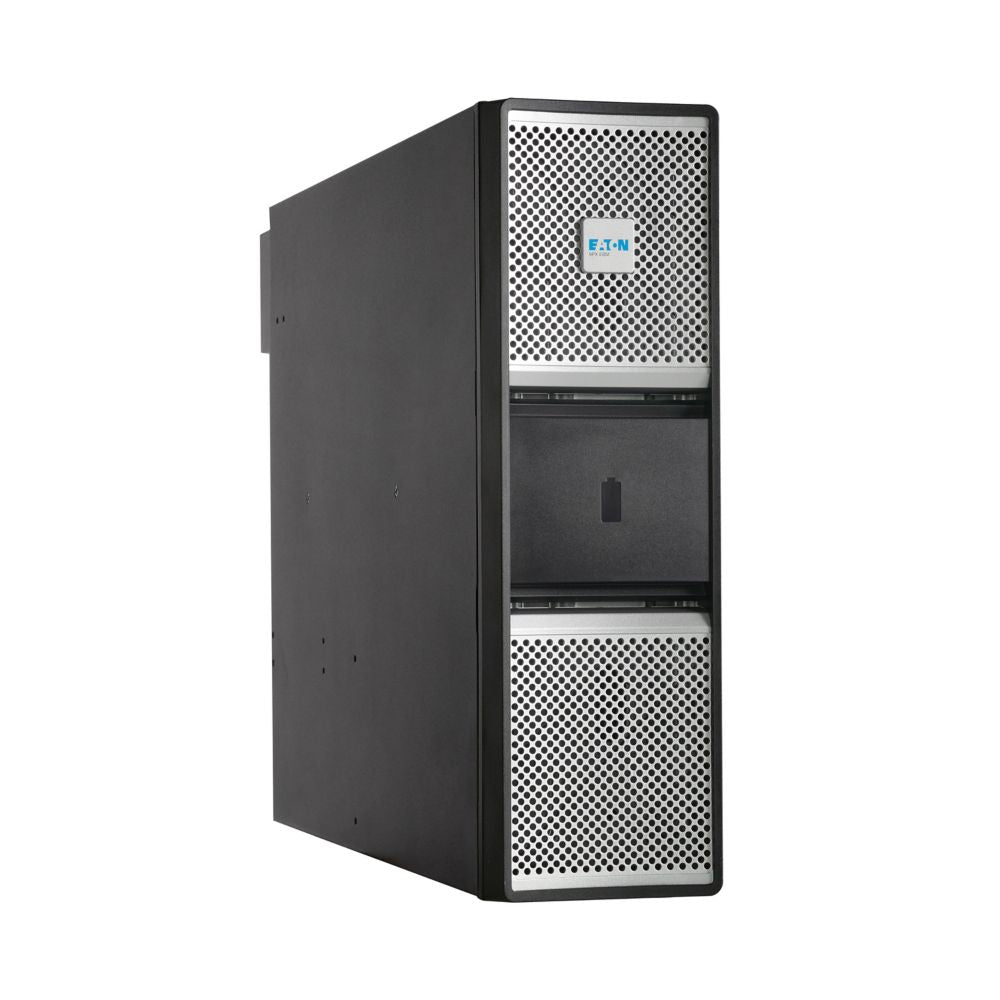

- Flexible 3U rackmount or tower installation

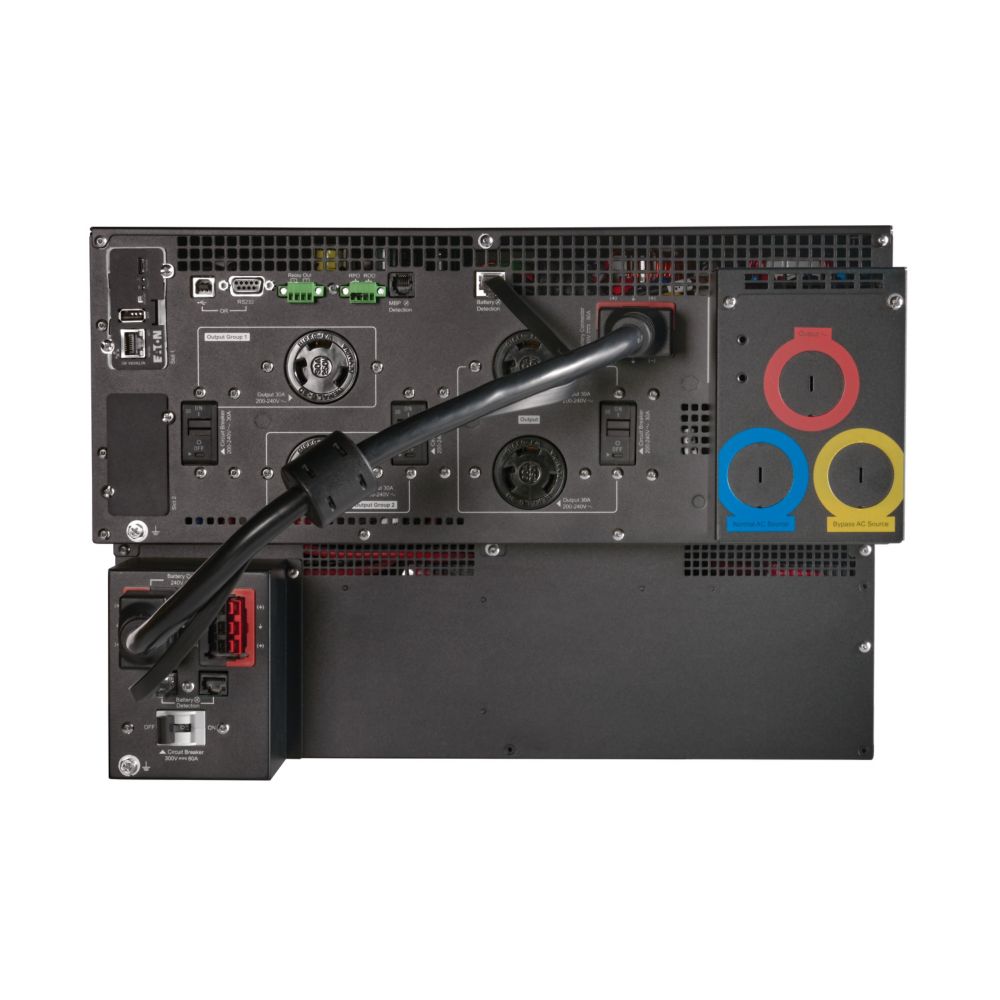

- Includes heavy-duty battery connection cable
- Includes 4-post rail kit and tower stands
- Rugged design for mission-critical environments
Compatible Systems:
- Eaton 9PX8KG2
- Eaton 9PX8KMG2
- Eaton 9PX8KTF5G2
- Eaton 9PX11KG2
- Eaton 9PX11KMG2,
- Eaton 9PX11KTF5G2
- Eaton 9PX11KTF11G2
- Eaton 9PX11KTF11MG2
What's Included:
- Eaton 9PXEBM240RTG2 Extended Battery Module
- External battery connection cable
- 4-post rack rail kit
- Tower support stands
- Quick Start Guide
Specifications:
- Model: 9PXEBM240RTG2
- Product Type: Extended Battery Module (EBM)
- Battery Type: Valve-Regulated Lead Acid (VRLA)
- Battery Voltage: 240V DC
- Form Factor: Rack/Tower
- Rack Height: 3U
- Dimensions: 5.1 x 17.3 x 26.4 in
- Weight: 136.7 lbs
- Installation: Rackmount or Tower
- Connection: High-current EBM cable included
- Expandability: Supports up to 12 EBMs per compatible UPS
- Warranty: 3 years
