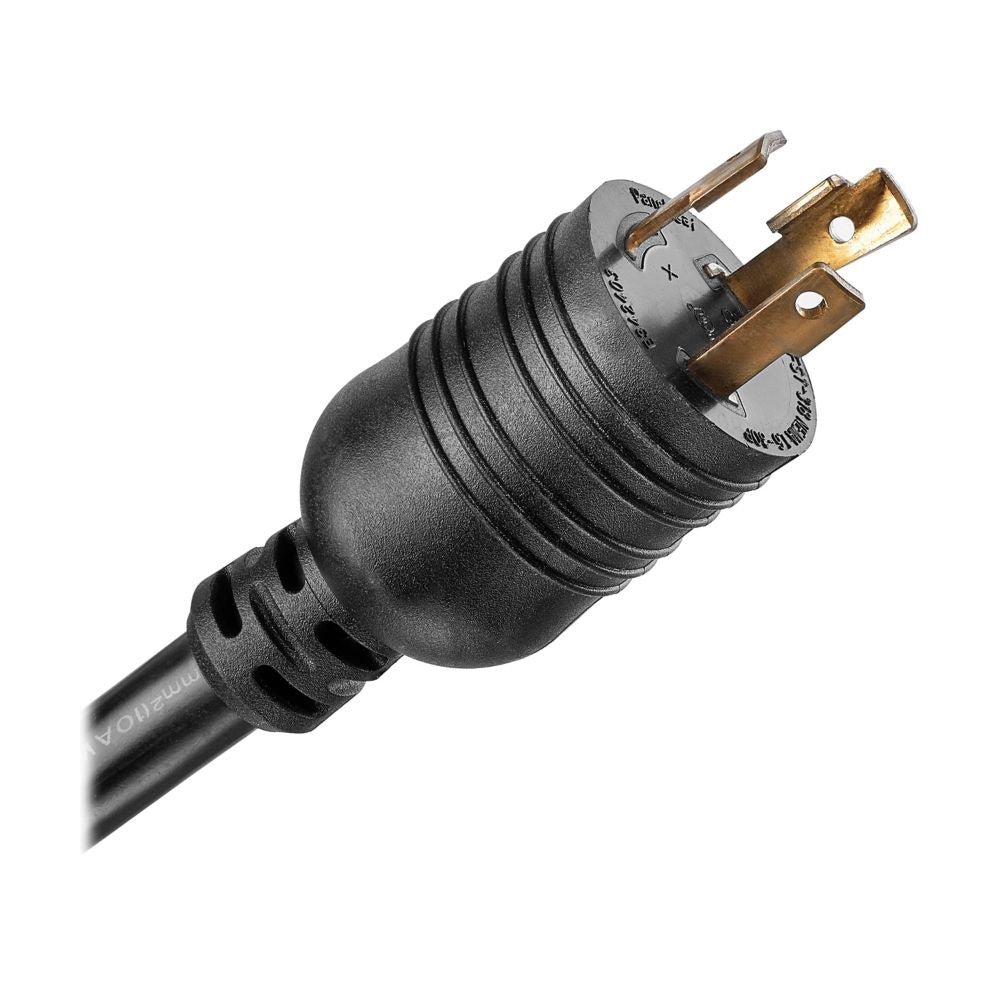

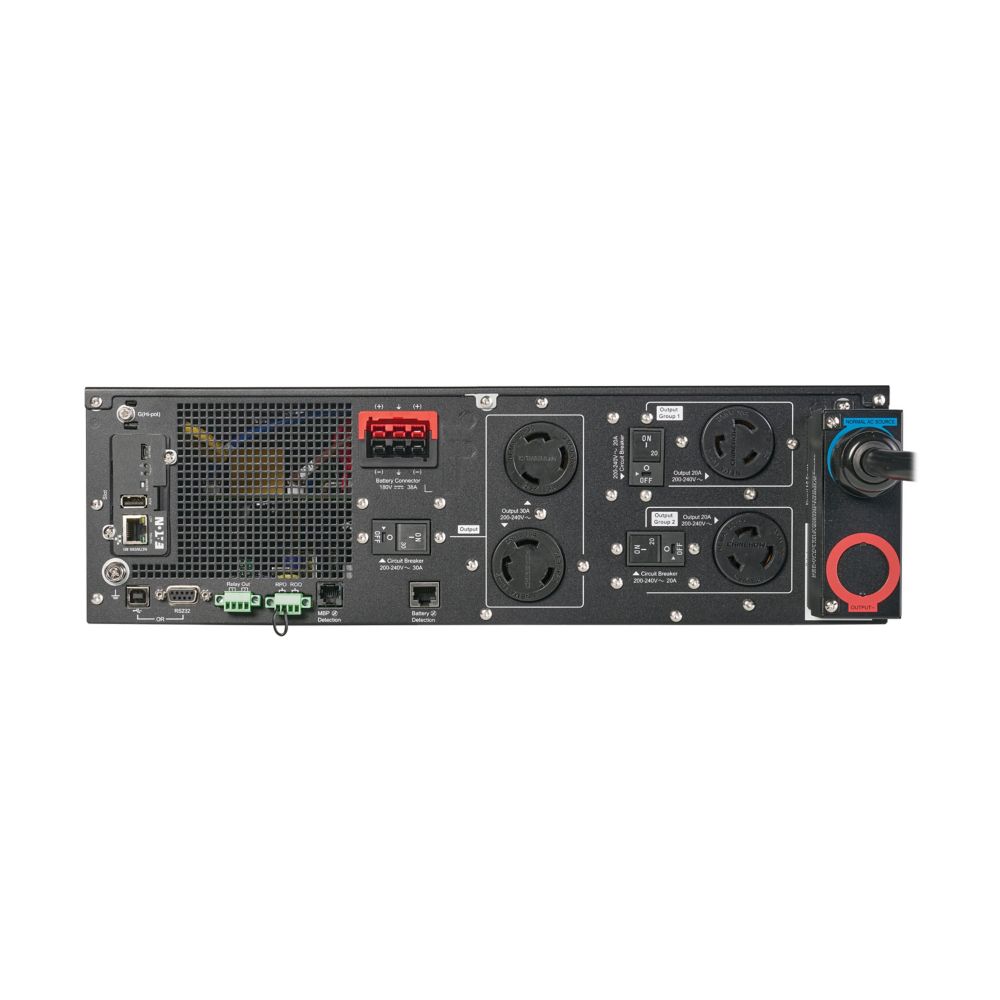

Eaton 9PX Gen 2 5kVA/5000VA/5000W Hardwired or 10ft. L6-30P Online UPS w/ Network Card (9PX5KG2)
Eaton’s 9PX G2 UPS systems provide high power density, enhanced battery management, best-in-class efficiency, maximum power reliability, simplified fleet management and certified cybersecurity.
Highlights:
- Online Double-Conversion UPS – delivers continuous, clean, and reliable power
- High Efficiency: Up to 97% in online mode, lowering energy and cooling costs

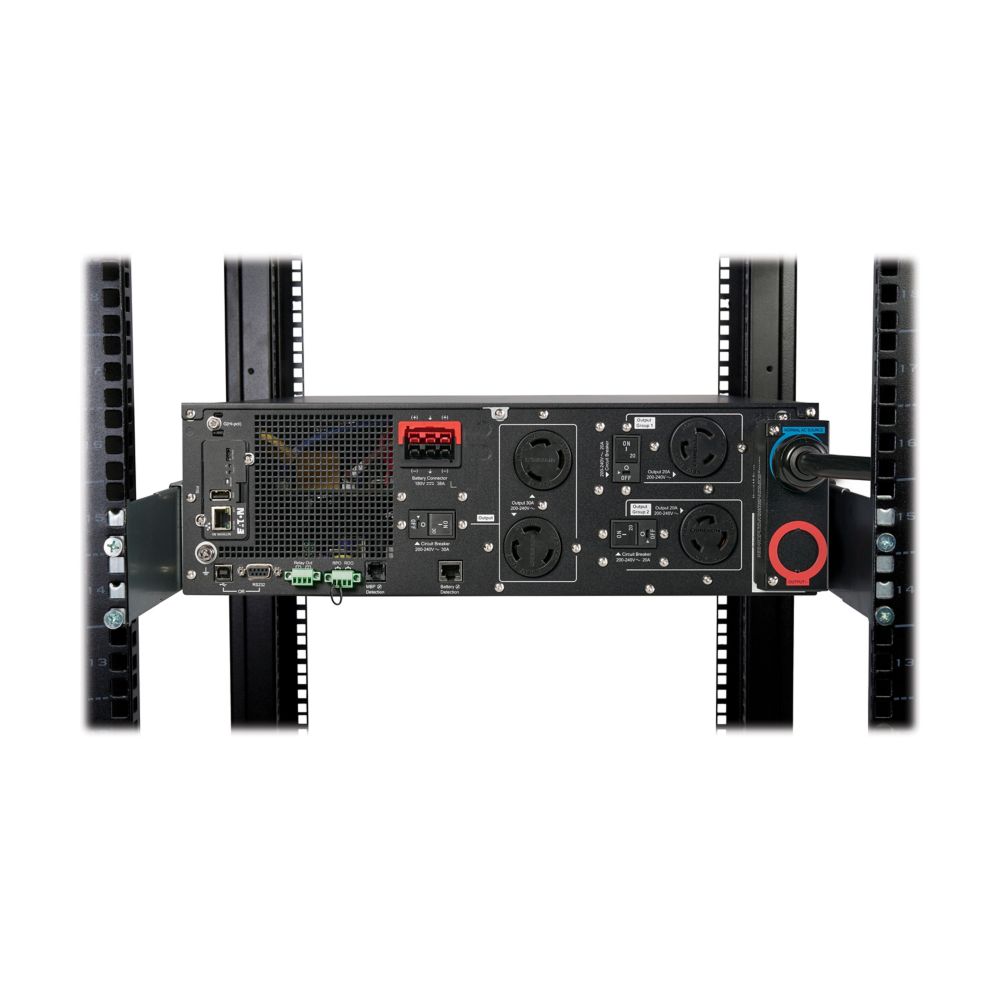

- Compact 3U Rack/Tower Design – saves space in server racks or network closets
- Advanced Battery Management (ABM+) – predictive analytics for battery health, optimized charging, and up to 50% longer battery life
- Hot-Swappable, Front-Accessible Batteries – ensures minimal downtime during maintenance
- Color LCD with Tilting Display – intuitive, high-visibility monitoring and control
- Cybersecure Network Card (NETWORK-M3 included) – for remote monitoring, SNMP/web management, RESTful APIs, and firmware updates
- Scalable Runtime – supports up to 12 extended battery modules (EBMs)
- Flexible Deployment – rackmount or tower with adjustable LCD orientation and included rail kit/tower stands
- Certified Cybersecurity & Compliance – UL/IEC cybersecurity certified, ENERGY STAR® qualified, RoHS compliant
Specifications:
- Power Rating: 5kVA/ 5000VA / 5000W
- Topology: Online, double-conversion
- Form Factor: 3U rack / tower convertible
- Input Voltage: 200/208/220/230/240V nominal
- Output Voltage: 200/208/220/230/240V nominal (selectable)
- Efficiency: Up to 97% online mode
- Battery: VRLA, hot-swappable, front access
- Runtime: Internal batteries; expandable with EBMs (up to 12)
- Interfaces & Ports: USB port, RS-232 port, Relay contact (output), Remote on/off, remote power off, EBM connectors & Network Management Card (NETWORK-M3, included)
- Outlet Types: Mix of hardwired and receptacle outputs (model-dependent; typically L6-30R or C19/C13 options)
- Display: Tilting color LCD + LED light bar status indicator
- Certifications: UL, cUL, ENERGY STAR®, CE, RoHS, FCC Class A
- Package contents: 5000VA 5000W 9PX G2 Online Double-Conversion UPS, NETWORK-M3 Gigabit network card, USB cable, RS-232 cable, Cable gland for hardwire connection, Rack-mounting hardware, Tower support stands & Quick Start Guide.
- Dimensions (HxWxD): 5.1 x 17.3 x 27 in
- Weight: 98.3 lbs
- Warranty: 3 years electronics & batteries
