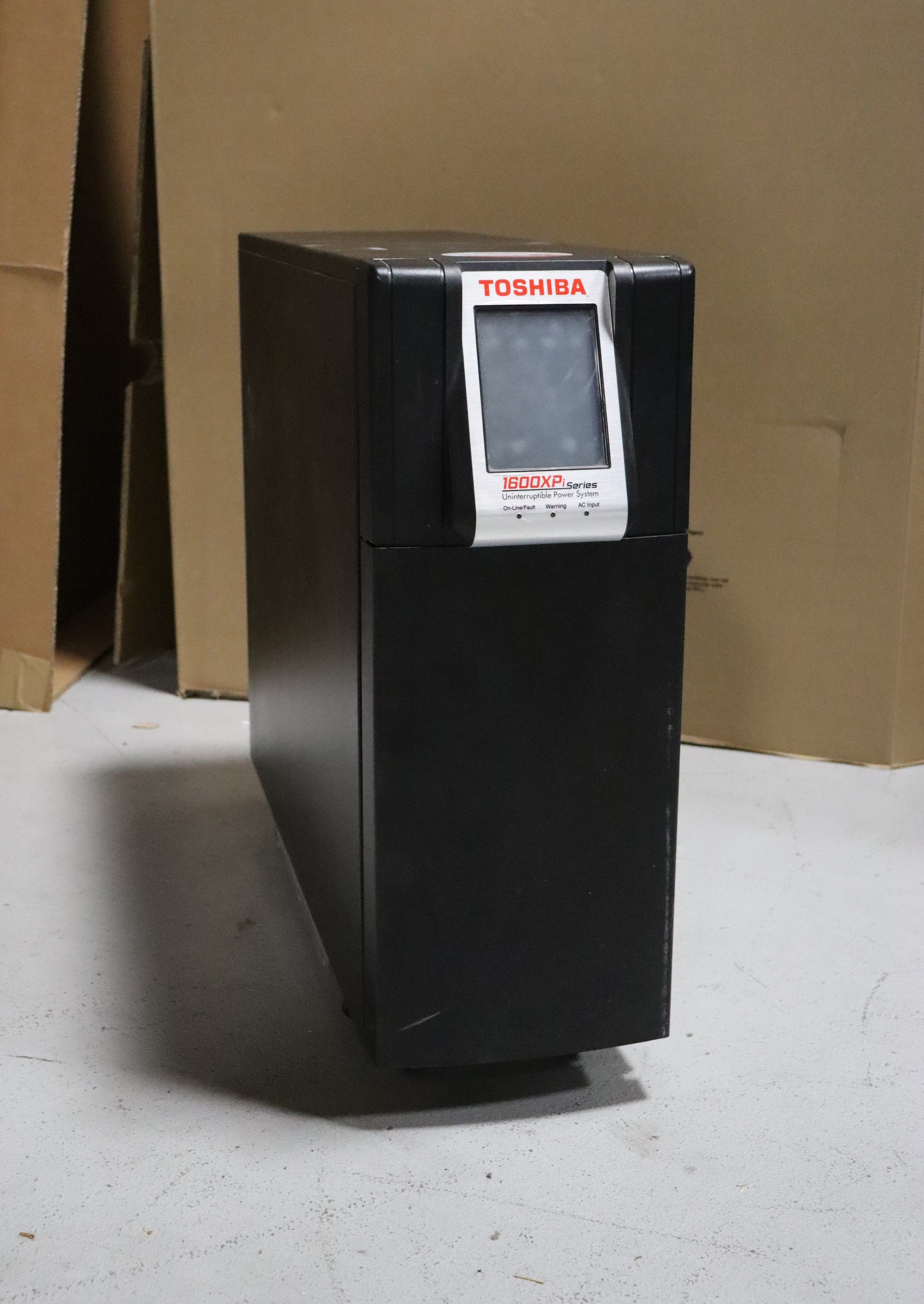

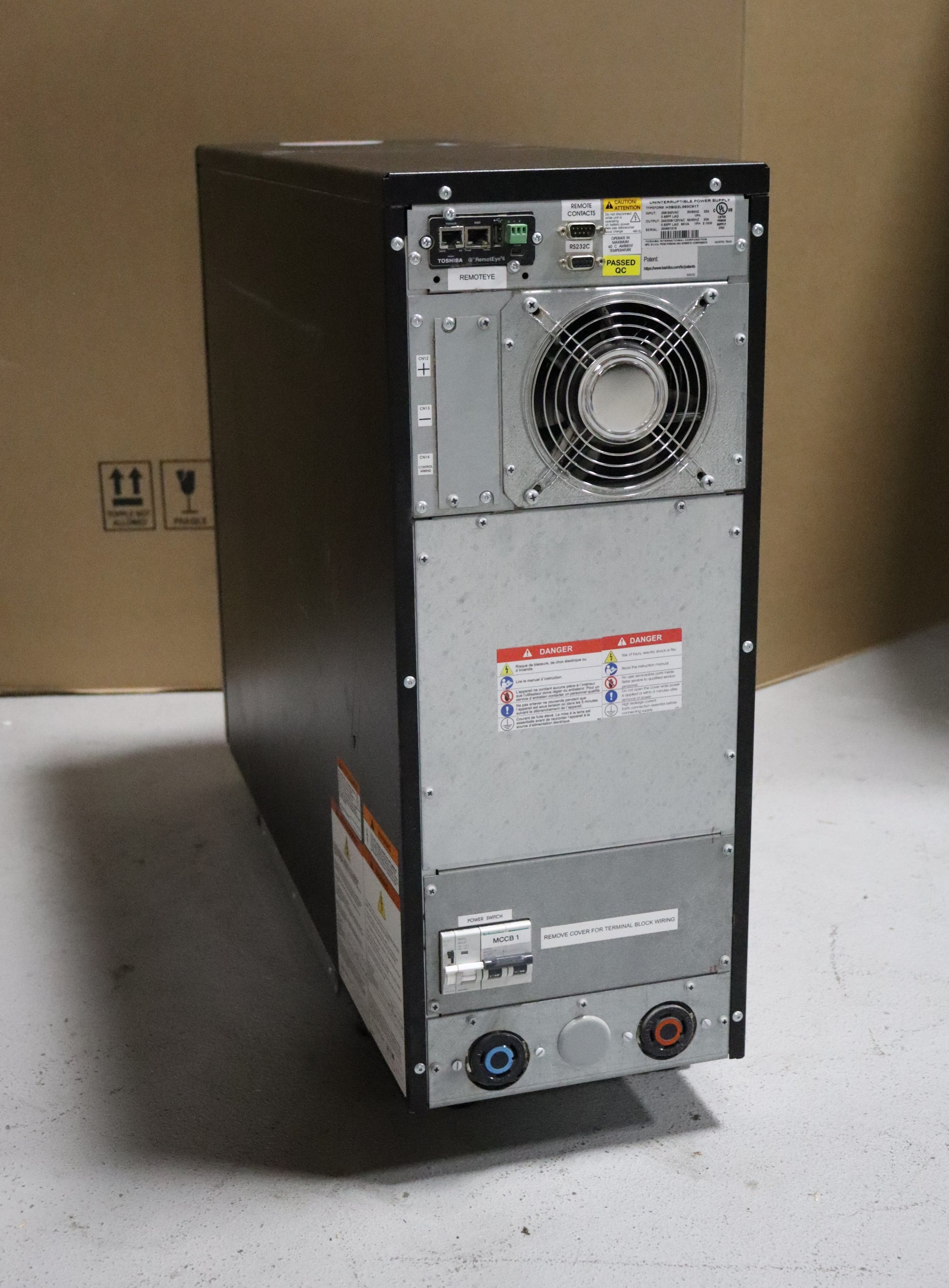

Toshiba 1600XPi 6kVA / 5.1KW 208/240V Hardwired In/Out Online Tower UPS (Pre-owned)

*Preowned* The 1600XP/XPi Series is single-phase double-conversion UPS, available in a range of sizes: 3.6 kVA, 6.0 kVA, 8.0 kVA, 10.0 kVA, 14 kVA, 18 kVA, and 22 kVA. Available in a tower design solution with a LCD touch-screen display that provides unmatched access for UPS monitoring and control. As a double-conversion online UPS, supplies uninterrupted, clean single-phase power to critical systems over large input voltage deviations without resorting to battery backup.

The 1600XPi Single phase UPS is an on-line double conversion tower design UPS ranging in capacity from 3.6 to 22 kVA. Toshiba uninterrupible power supply is designed to meet the growing demand in the information technology, healthcare, industrial, broadcasting and retail markets. The 1600XPi UPS ensures clean power, no power interruption in the event of a power outage, matching black color, and is compatible with 19" server racks. The tower design solution with LCD touch-screen display provides unmatched access for UPS monitoring and control. Toshiba UPS solutions offer emergency backup power to protect vital electronic resources from today’s all-too often blackouts, brownouts and power surges.

Why Choose the Toshiba 1600XPi UPS?

Built on a legacy of engineering excellence, the Toshiba 1600XPi Series provides true online double-conversion protection, robust performance, and flexible configuration options for IT, industrial, and commercial environments. Designed to meet the demands of today’s high-density systems, Toshiba UPS units offer exceptional reliability, efficiency, and control for everything from data centers to healthcare facilities.

Key Features:

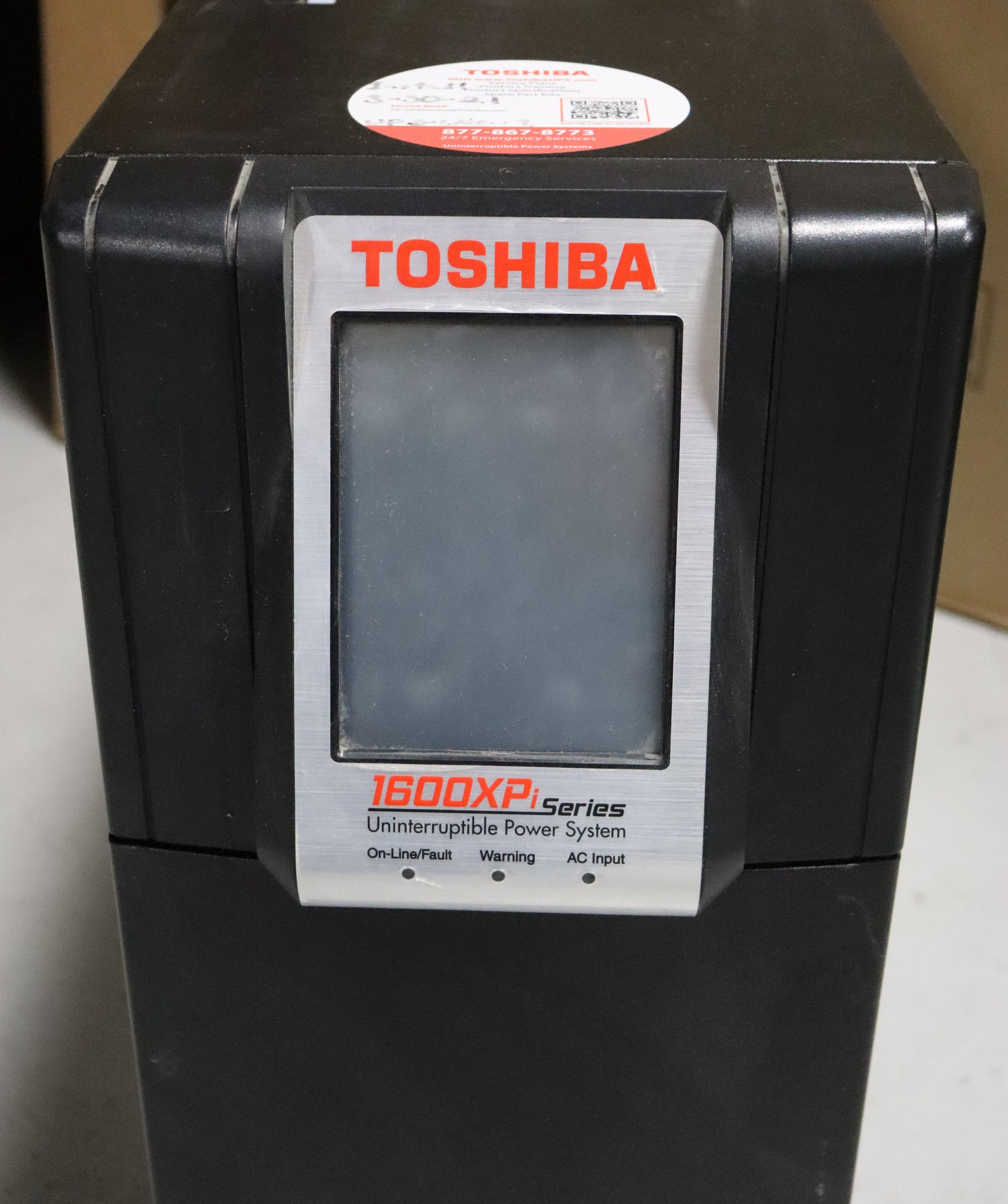

• Digital LCD Touchscreen Display

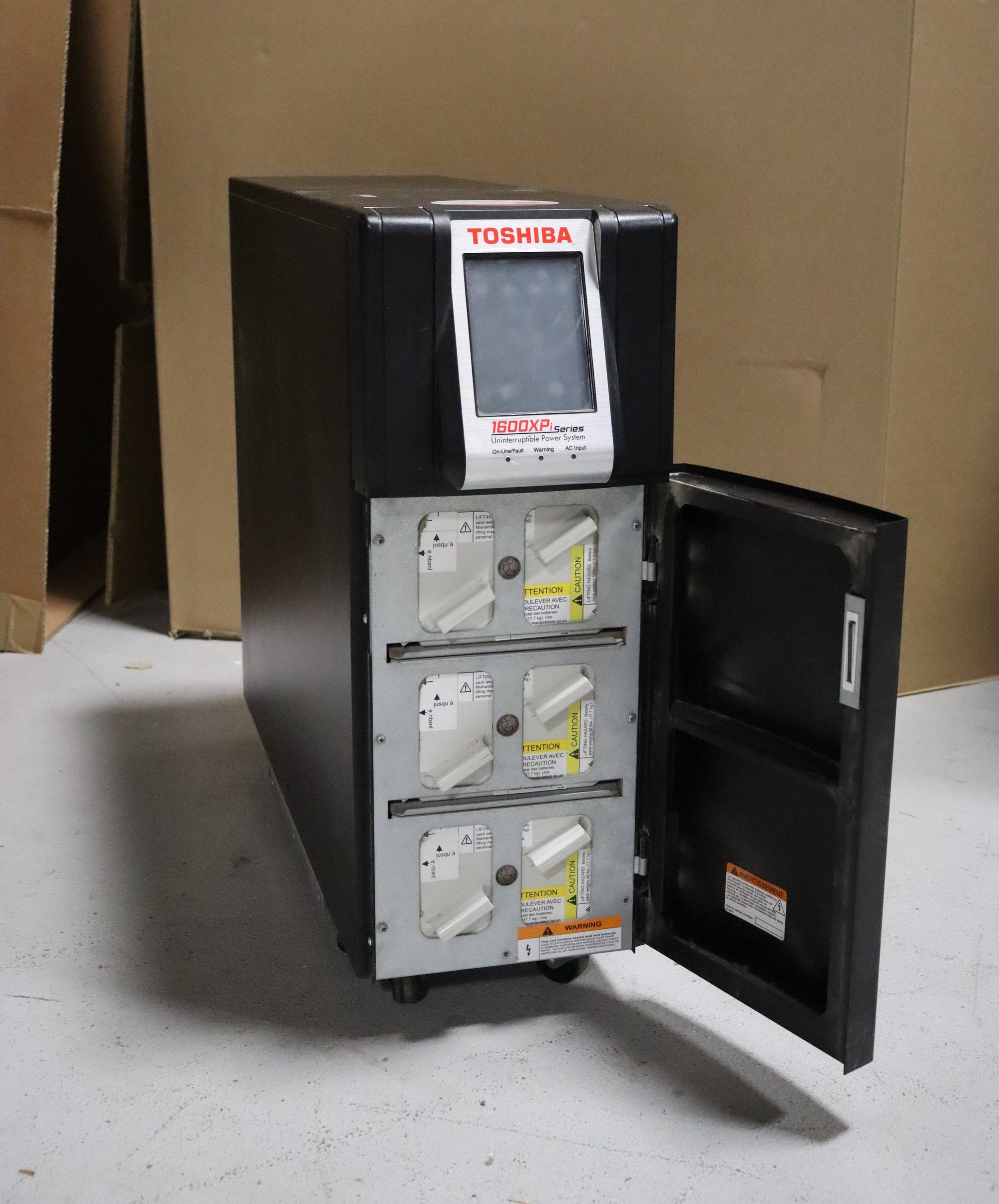

• Hot Swappable Batteries

• Internal Isolation Transformer

• Wide Input Voltage Window

• Wide Input Frequency Window

• Input Power Factor > 0.95

• Power Factor Correction

• Output Power Factor 0.85

Specifications:

• Model Number:     H3BG2L060C61T

• Capacity (kVA/kW) :    6.0/5.1KW

• Topology :    True On-Line, Double-Conversion
• Standard Voltage:     208/240V/120V

• Phase:     1PH
• Frequency:     50/60HZ

• DC Voltage:     216V

• Voltage THD :    < 3% for linear load; < 6% for non-linear load
• Overload Capacity :    Inverter: 125%-30 sec./150%-10 sec, Bypass: 125%-10 min./1000%-1 cycle
• Temperature Range:     32° to 104°F (0° to 40°C)
• Humidity :    30% to 90% Non-Condensing
• Heat Rejection :    3564 BTU/Hr
• Full-Load Efficiency :    0.83
• Altitude :    6600 ft. (2000 m) Maximum Without Derating
• Audible Noise :    60dBA @ 1 m Typical
• Dimensions :    10" x 34" x 27.5"
• Weight:     354lbs.
• Color :    O'Brien Black

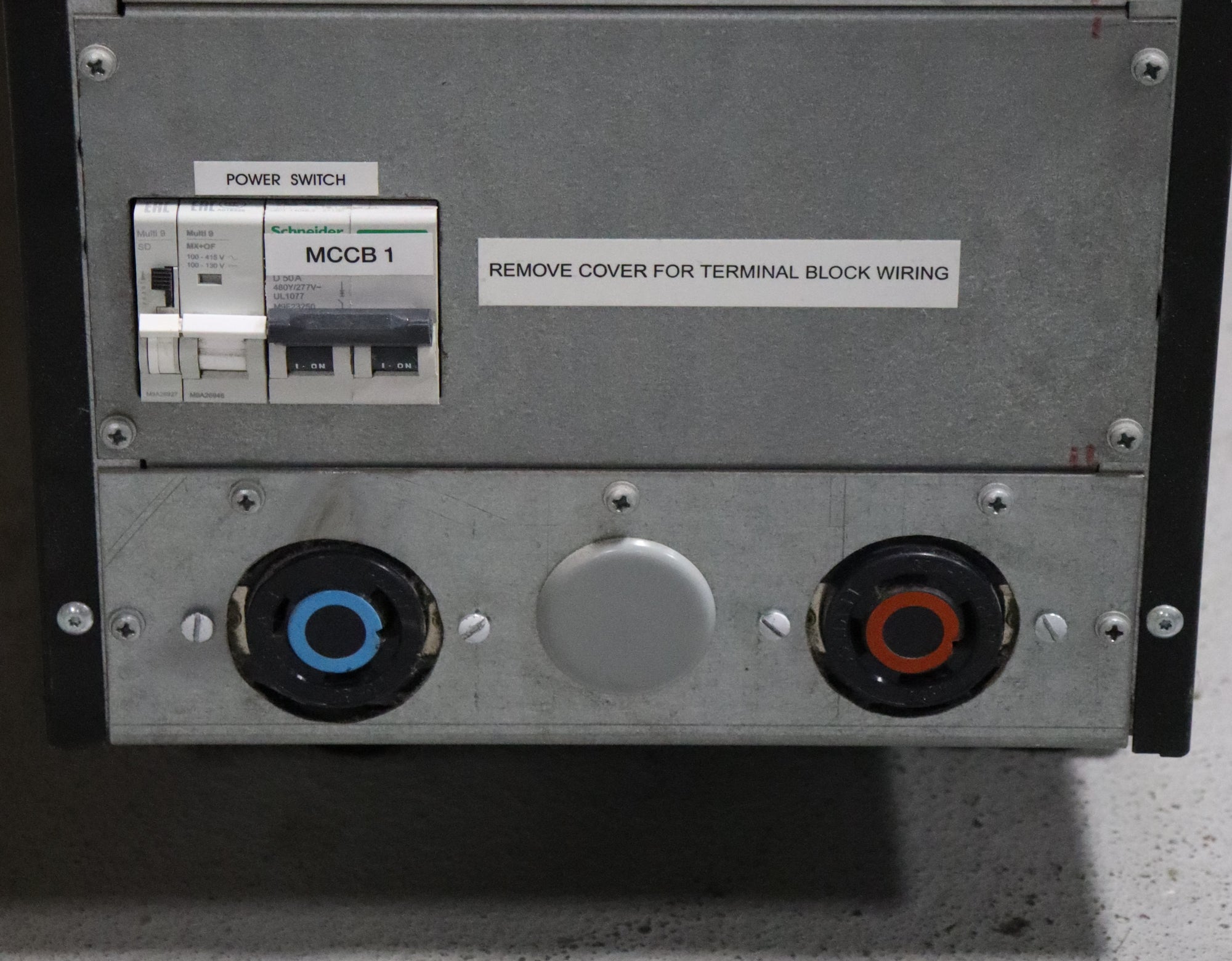

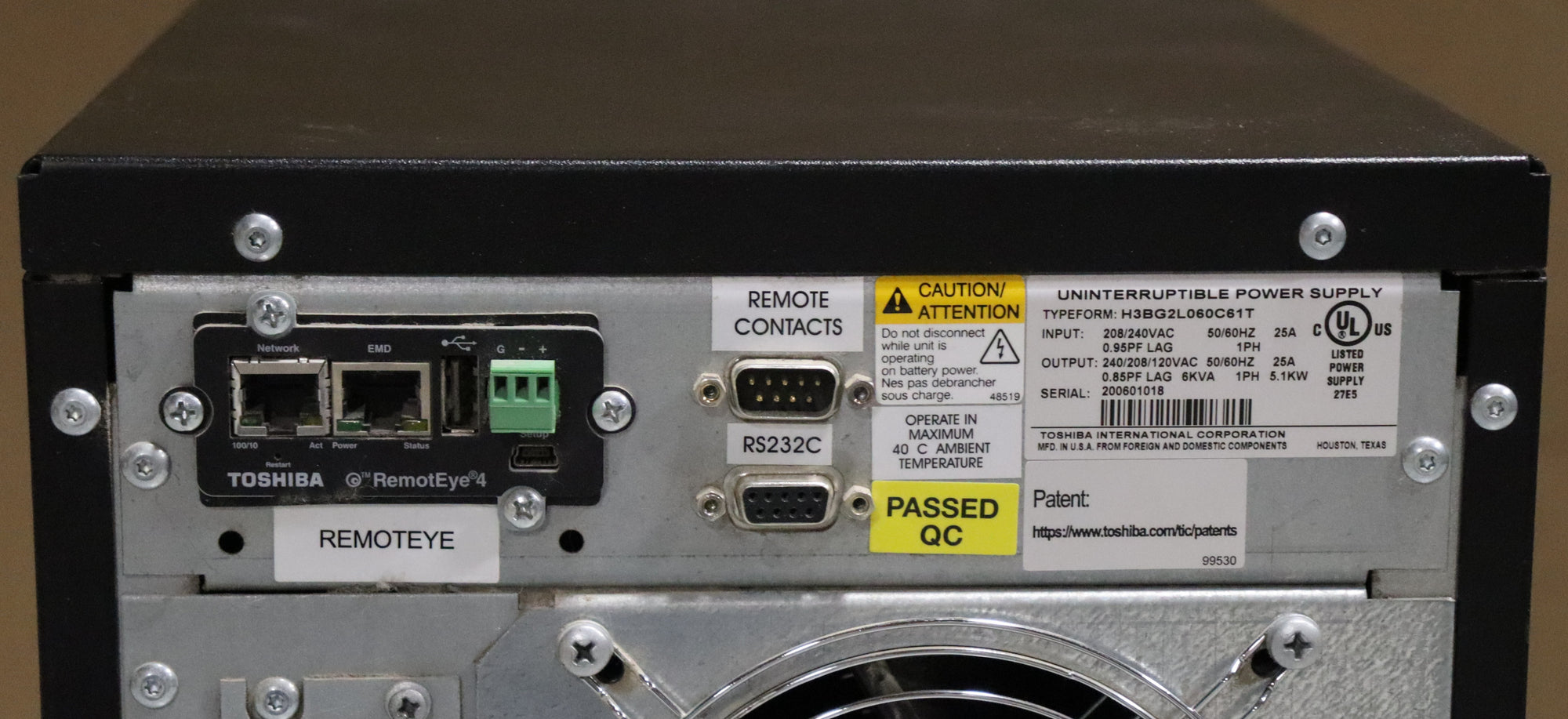

• Features :    Output Isolation Transformer, RS232 & Dry Contact Interface, Crest Factor of 3, Angled Terminal Blocks for Easy Installation, Casters for Mobility
• Standards :     UL 1778, CUL


Notes:

System may show minor signs of wear consistent with previous installation.

New internal batteries included.

Wiring and startup of system by trained/certified professional required.
