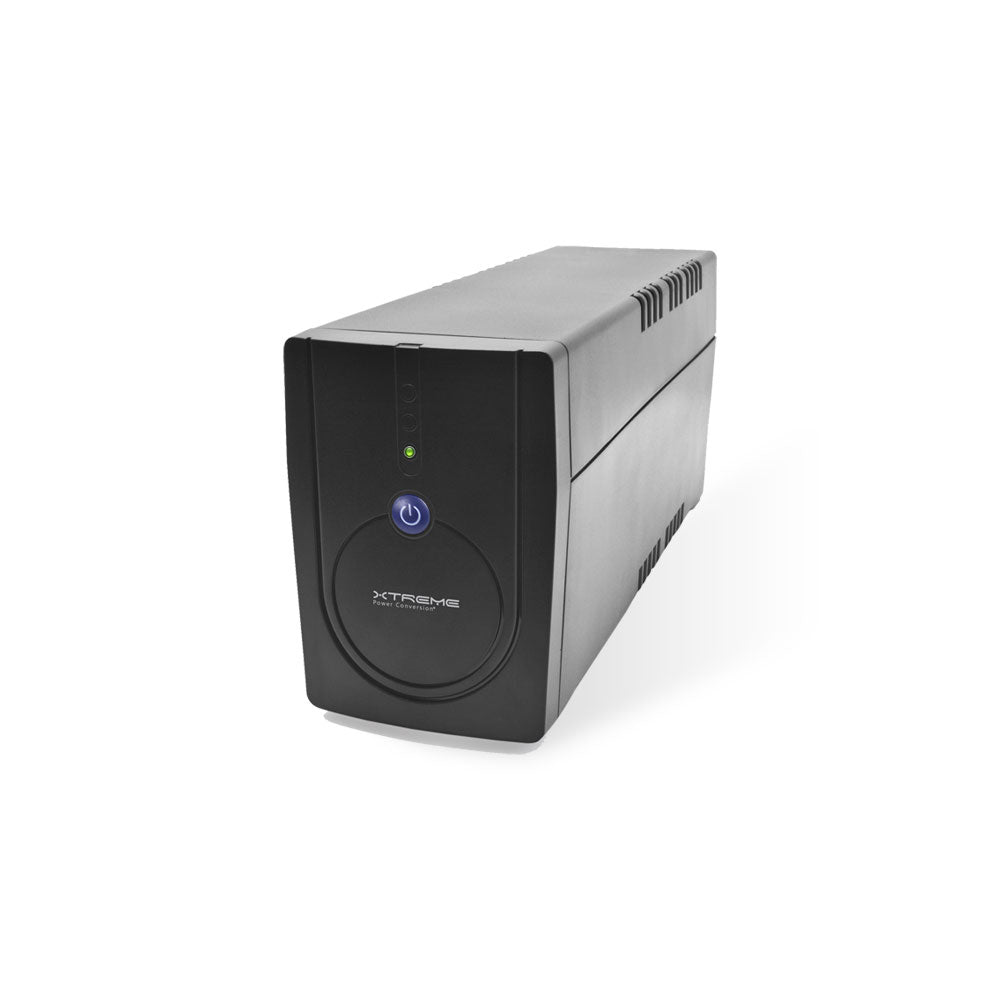

Xtreme Power Conversion C60-800 800VA / 480W 120V Standby Tower UPS
|
|
The compact C60 is a single phase standby UPS designed to deliver power protection to small routers, switches, VoIP equipment, phone systems, and kiosks. A vital addition to any home office, it enables graceful shutdown of equipment during a longer power outage.
Product Snapshot
| MODEL NUMBER | C60-800 | C60i-800 | |
|---|---|---|---|
| INPUT | Capacity | 800VA (480W) | |
| Nominal voltage | 120VAC | 230VAC | |
| Voltage range | 80–135VAC ± 5% | 175–254VAC | |
| Frequency range | 55–65Hz at 60Hz ± 1Hz | 45–55Hz at 50Hz ± 1Hz | |
| Surge protection | 158 J | ||
| AC power cord | 6 ft, IEC C13 to 5–15P | IEC C14 inlet only | |
| OUTPUT | Voltage (line mode) | 80–135VAC ± 5% | 175–254VAC |
| Voltage (battery mode) | 120VAC ± 10% | 230VAC ± 10% | |
| Voltage regulation | ± 2% | ||
| Frequency (line mode) | 55–65Hz at 60Hz ± 1Hz | 45–55Hz at 50Hz ± 1Hz | |
| Frequency (battery mode) | 60Hz ± 1Hz | 50Hz ± 1Hz | |
| Waveform | Sine wave (normal), simulated sine wave (battery mode) | ||
| Transfer time | 2–6 ms | ||
| Outlets | (2) NEMA 5–15R | (2) IEC C13 | |
| Overload capacity | 110% +20% / -10% for 5 min; 120% +20% / -10% immediately off | ||
| Efficiency | > 95% | ||
| BATTERY | UPS battery type | (1) 12V 9AH / 12VDC | |
| UPS charge current | 1A maximum | ||
| Recharge time | 8 hours to 90% capacity | ||
| PHYSICAL | Dimensions (W x D x H) | 4.0 x 13.0 x 5.7 in | |
| Weight | 7.5 lbs | ||
| ENVIRONMENT | Temperature | 32–104°F (0–40°C) | |
| Humidity | 0–90% | ||
| Altitude | 11,500 ft above sea level | ||
| INDICATORS & ALARMS | Line mode | Green LED illuminated | |
| Battery mode | Green LED flashing every 10 sec | ||
| Battery low | Green LED flashing every 1 sec | ||
| Fault mode | Off | ||
| Audible alarm | Battery mode – every 10 sec; low battery – every 1 sec; overload – ever 0.5 sec; fault – constant alarm | ||
| APPROVALS | UL 1778, FCC Class A, RoHS | TUV, CISPER 11 complaint, RoHs | |
| WARRANTY | 2 years electronics, 2 years battery (USA and Canada) | ||
