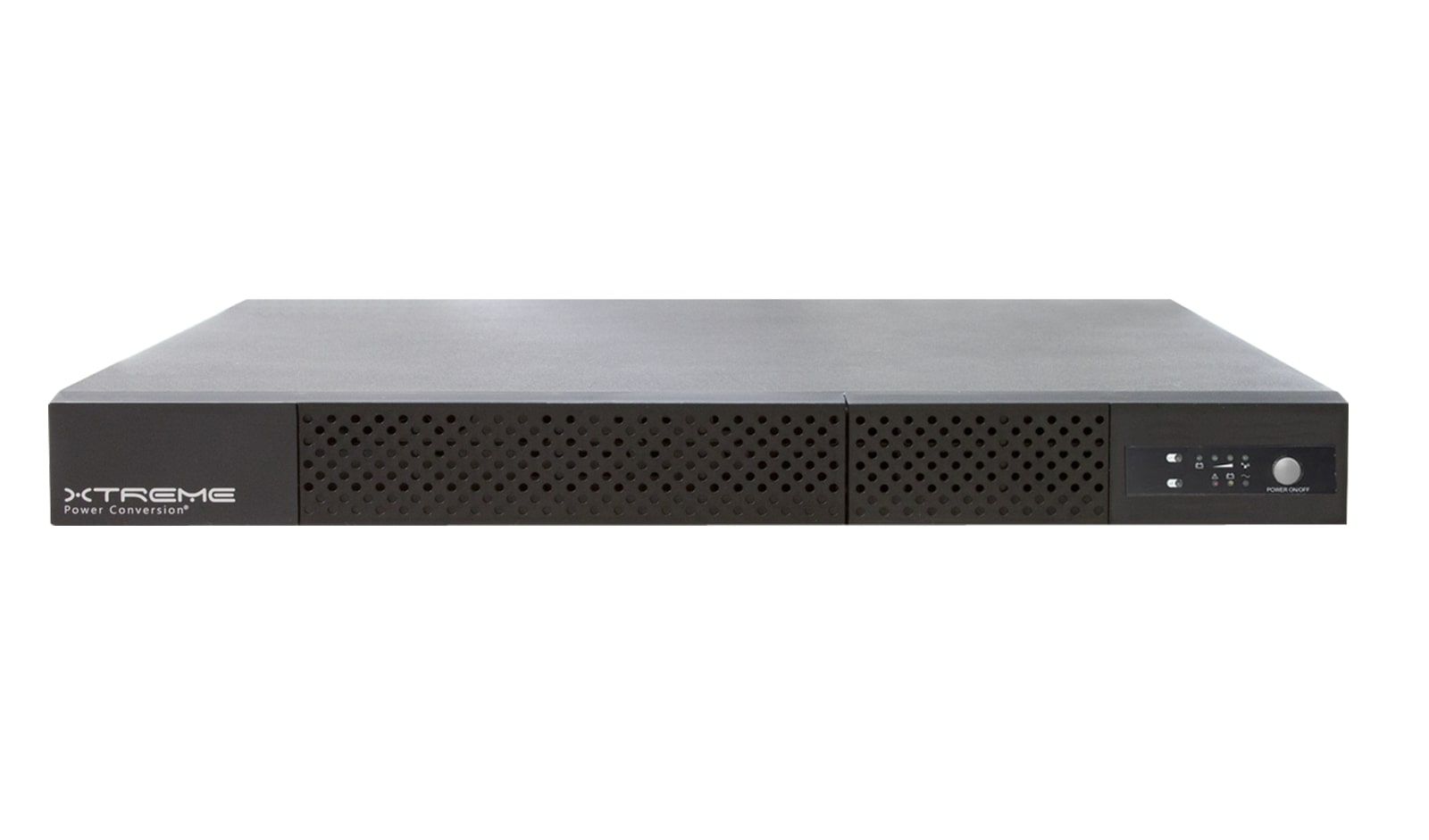

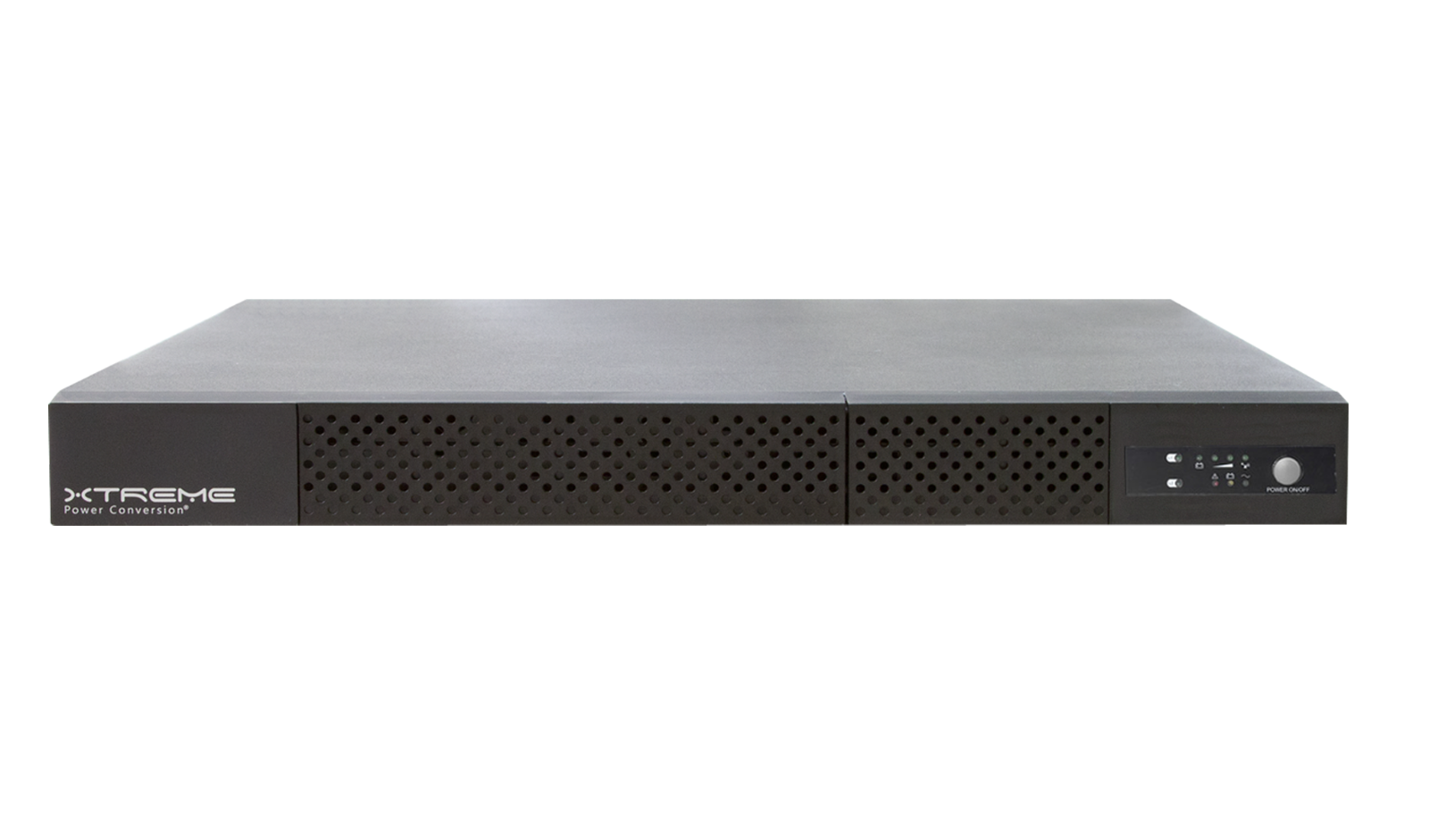

Xtreme Power Conversion P90c-1000 1000VA/800W 120V 1U Online Rackmount UPS
Xtreme Power Conversion P90c-1000 1000VA/800W 120V 1U Online Rackmount UPS
The P90 is a true online UPS that delivers continuous, high quality AC power to servers and network equipment with no break when transferring to battery.
The P90 provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, surges, and noise interference. The P90 offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
Product Snapshot
- Available models: 1000VA, 1500VA, 2000VA, 3000VA
- 98% efficiency in ECO mode
- Tower, wall, 2-post and 4-post rack mounting configurations available
- Extended battery runtimes with optional matching battery modules
- UL, cUL, CE, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
Specifications:
- Power rating: 1000VA / 800W
- Voltage: 120VAC
- Recharge Time: < 4 hours to 90% with 1A charger current
- Efficiency: Up to 98% ECO mode, 90% online mode
- Waveform: Pure sine wave, < 2% at full load
- Frequency: 50/60Hz ± 0.5Hz
- Overload capacity: ≤ 130% for 2 min; ≤ 200% for 10 sec; >200% for 1 sec
- Battery type: (4) 6V 290W
- Dimensions (W x D x H): 17.2 x 17.8 x 1.7 in
- Weight: 28 lbs
- Line cord: 5 ft, 5–15P
- Receptacles: (3) NEMA 5–15R
- Approvals: UL, cUL, RoHS, TAA compliant
