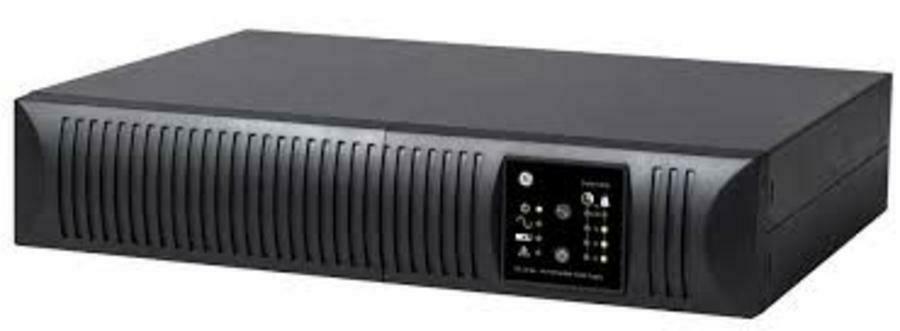

GE VH Series 24746 3000VA/2740W 120V Online Double Conversion Rack /Tower UPS
Double Conversion UPS, Rack/Tower Mounting, 3000 VA Rating, 2740 Watts, 120VAC Input Voltage, 50/60 Hz, Input Current 24A, Output Voltage 120VAC, 1 Phase, Backup Time (Full Load) 4 min., Number of Outlets (6) 5-20R, (1) L5-30R. Input Connection L5-30P Plug. Height 3.4 In., Depth 23 In., Width 17.3 In.,
Technical Specs
- On-Line/Double Conversion
- 3000VA Rating
- 2700W Rating
- Input Voltage - 120VAC
- Output Voltage -120VAC
- Backup Time (Full Load) 4 min.

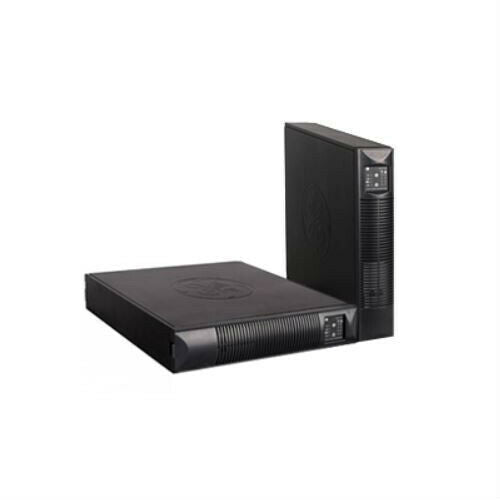

- Mounting - Rack/Tower
- Outlet Type - Surge
- Number of Outlets 7

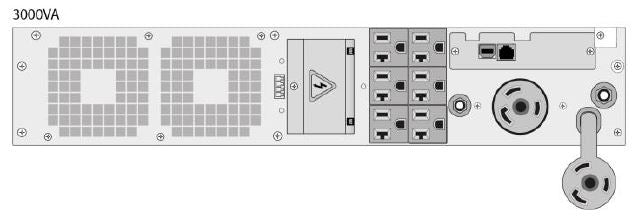

- Receptacle Configuration - 5-20R (6), L5-30R (1)
- Input Plug Configuration - L5-30P
- Transfer Time - 1 msec
- Width - 17.3"
- Depth - 23"
- Height - 3.4"

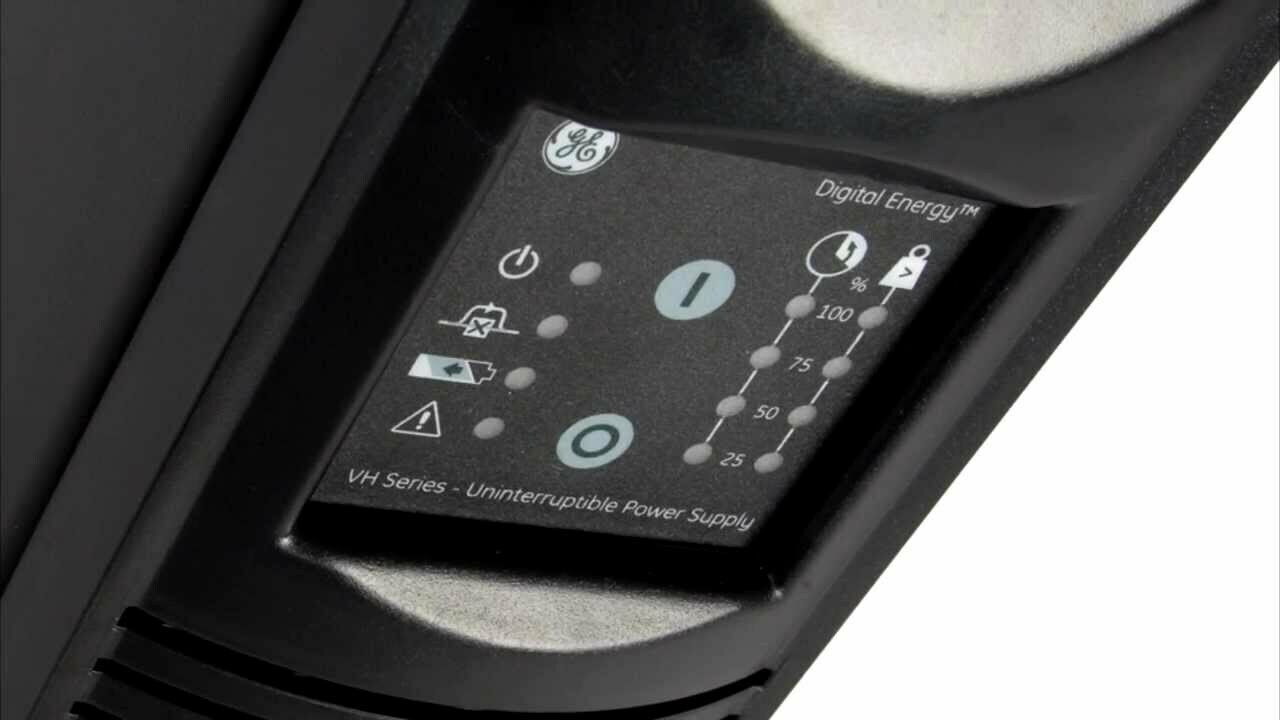

- .LED Display
- Hz50/60
- Input Current - 24A
- Phase1
