Eaton/Tripp Lite 1.9kW 120V 1U Single Phase Automatic Transfer Switch PDU (PDUMH20ATNET)
This Switched Automatic Transfer Switch / ATS PDU provides a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
Highlights:
- 1.9kW 120V ATS / Switched PDU, Single phase 20A 120V
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources

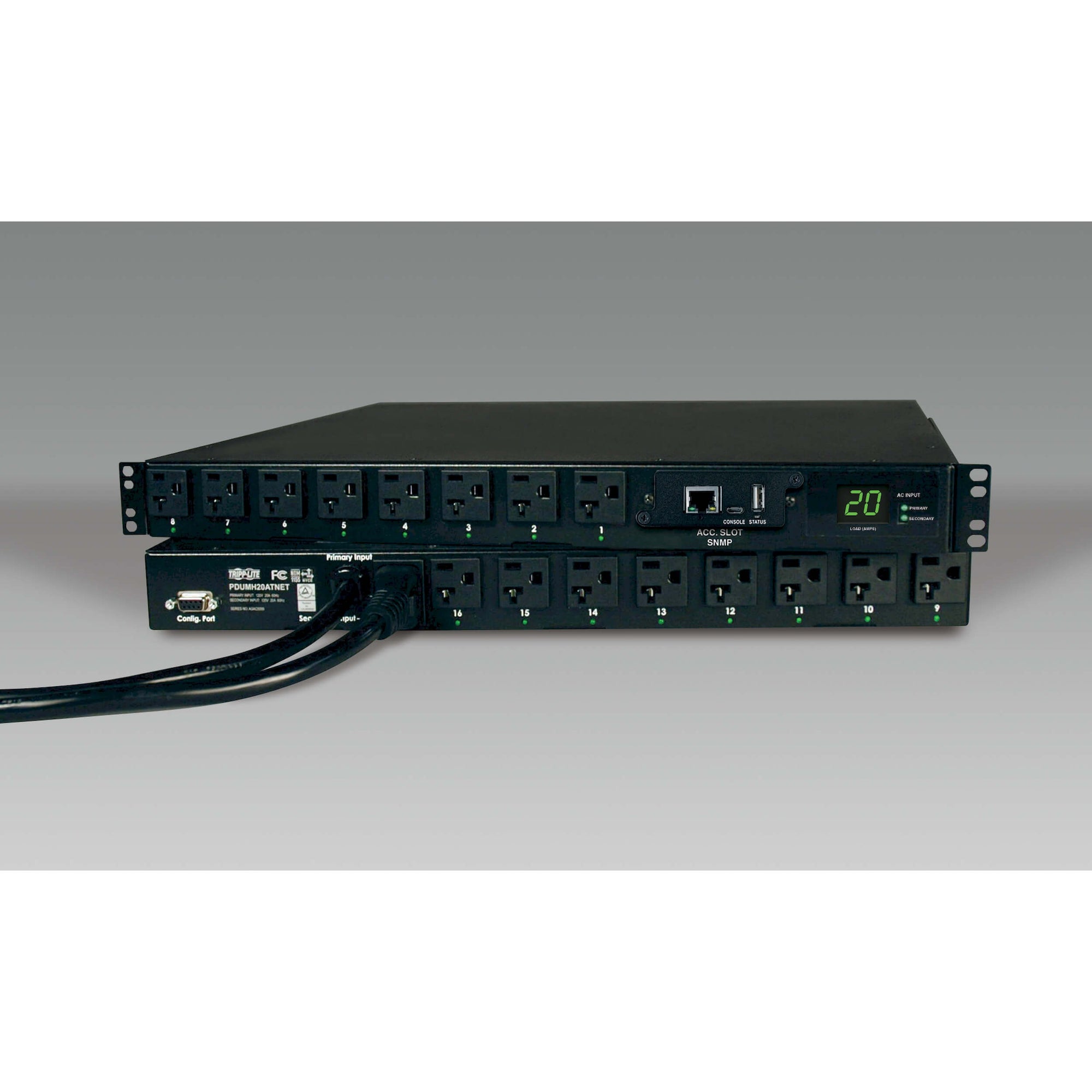

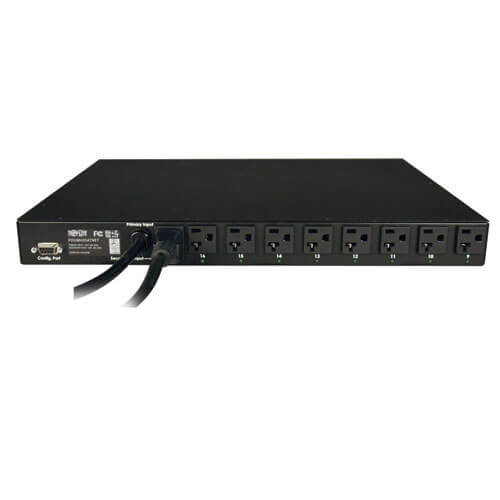

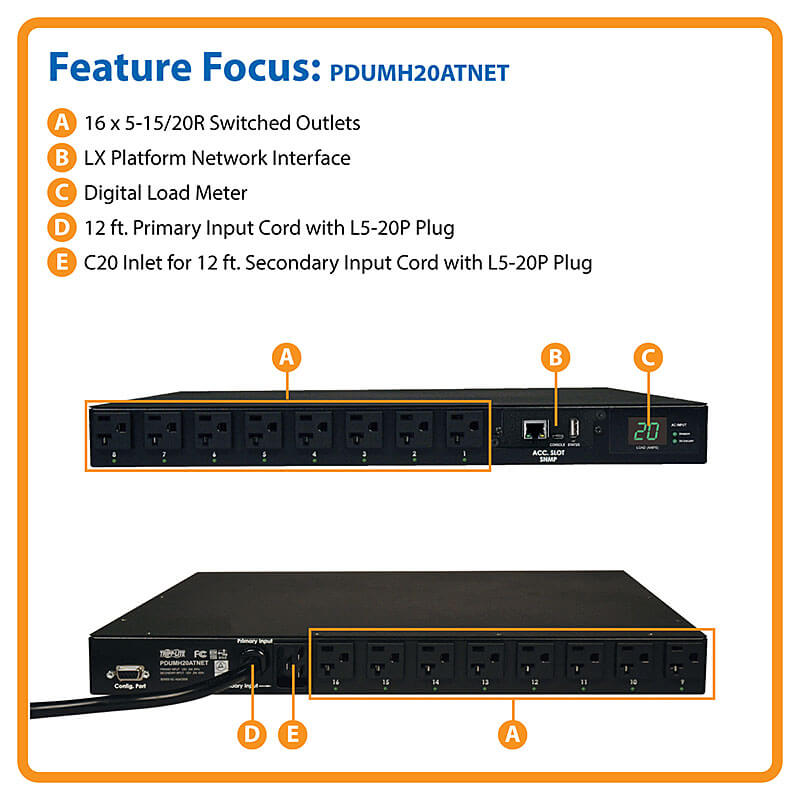

- 1U horizontal rackmount; 2 L5-20P / 5-20P inputs; 16 5-15/20R outlets
- Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
- 2-year limited warranty
Specifications:
| UPC code | 037332136411 |
| PDU type | Auto-transfer switch; switched |
| Input phase | Single phase |
| Voltage | 120V |
| Max input amps | 16 |

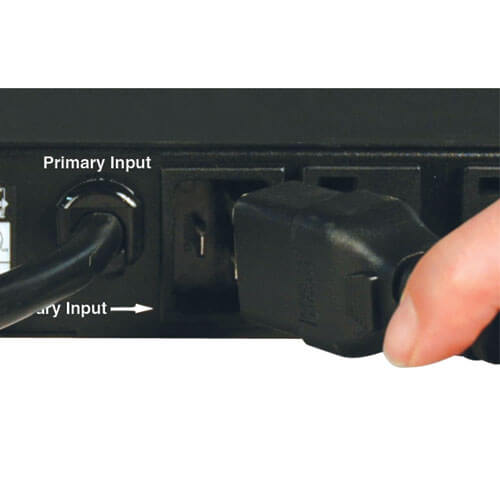

| Input connections | Primary: L5-20P and Secondary: C20 inlet and detachable C19-to-L5-20P cordset and adapters |
| PDU plug type | (2) NEMA 5-20P; (2) NEMA L5-20P |
| Input Cord | Set of two L5-20P cordsets with two 5-20P adapters enable connection to separate PRIMARY and SECONDARY power sources |
| Input cord length | 12ft |
| Output capacity | 1.92kW (120V) / 16A total capacity; 16A max per outlet |
| Frequency | 50/60Hz |
| Output receptacles | (16) 5-15/20R |

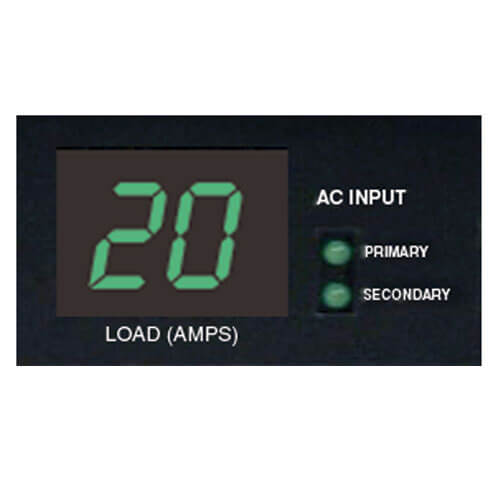

| Front panel LCD display | Digital display reports total PDU output current in amps |

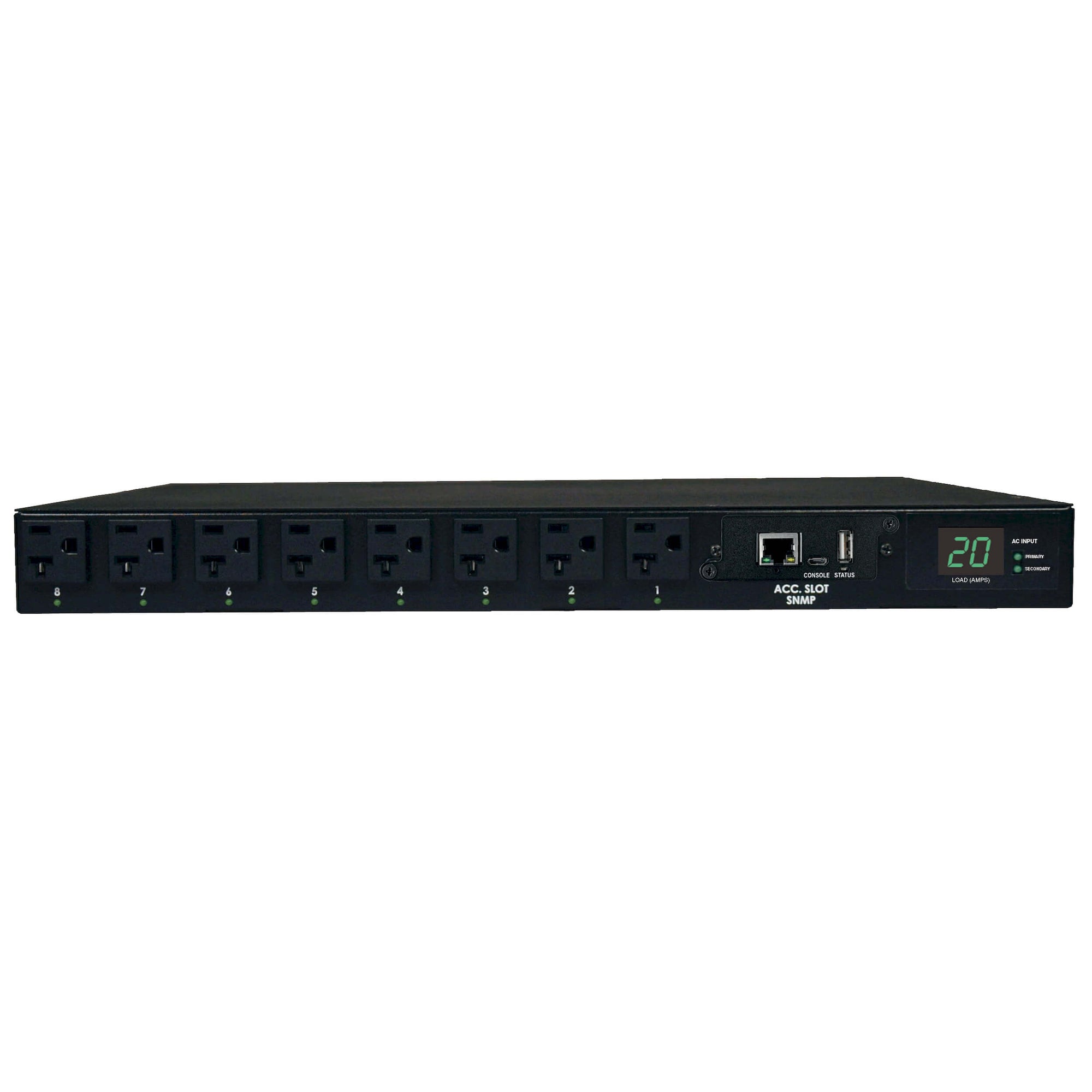

| Front panel LEDs | 16 front panel LEDs display power on / off status for each outlet, plus 2 LEDs for power status on each input line cord; Digital current meter display shows the amount of power consumption in amps for entire output of PDU. Pre- installed WEBCARDLX provides Ethernet Link and Status LED's for network activity along with a system status LEDfor monitoring system operation. |
| Switches | Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment |
| PDU form factor | Horizontal (1U) |
| Dimensions | 1.75 x 17.5 x 14.5in |
| Weight | 12.2 Lbs |
