Eaton 5PX 5PX1500iRT 1440VA/1440W 208/230V Rack/Tower Line Interactive UPS
$1,107.99
Eaton 5PX 5PX1500iRT 1440VA/1440W 208/230V Rack/Tower Line Interactive UPS
General | |
Topology | Line interactive |

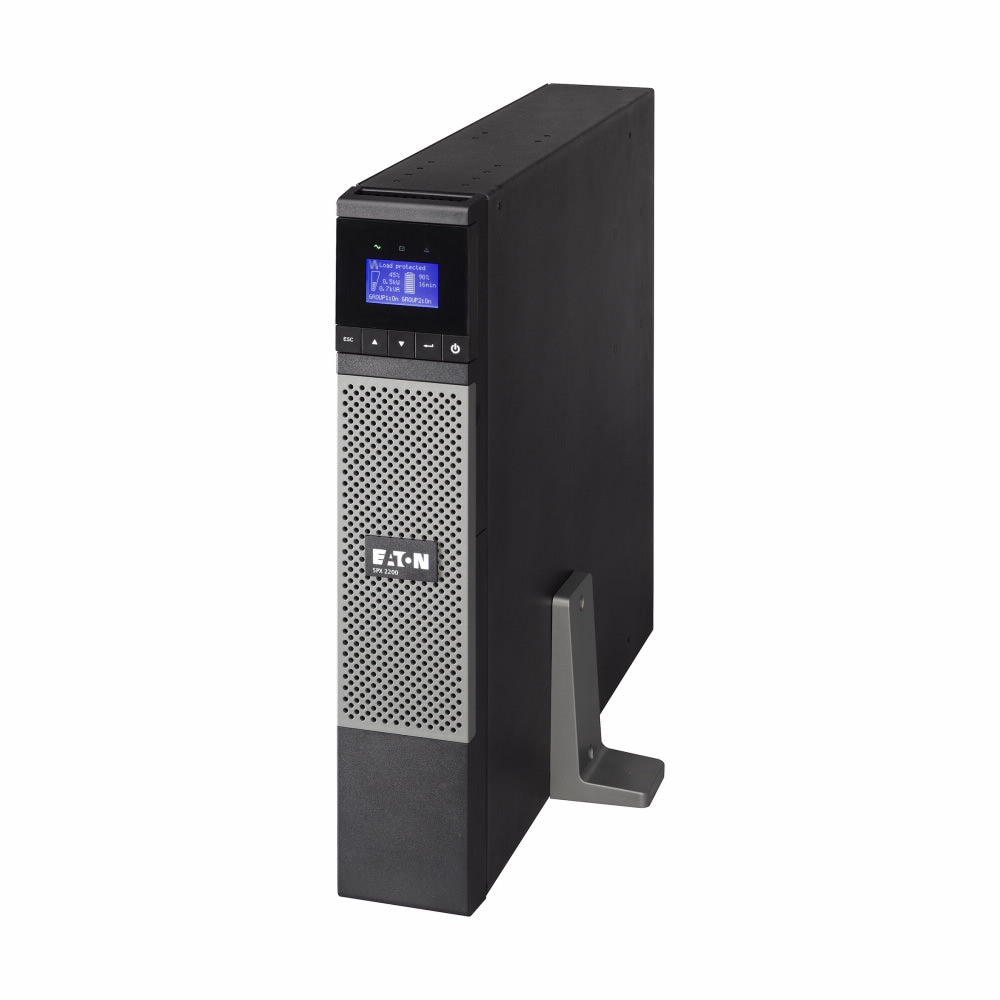

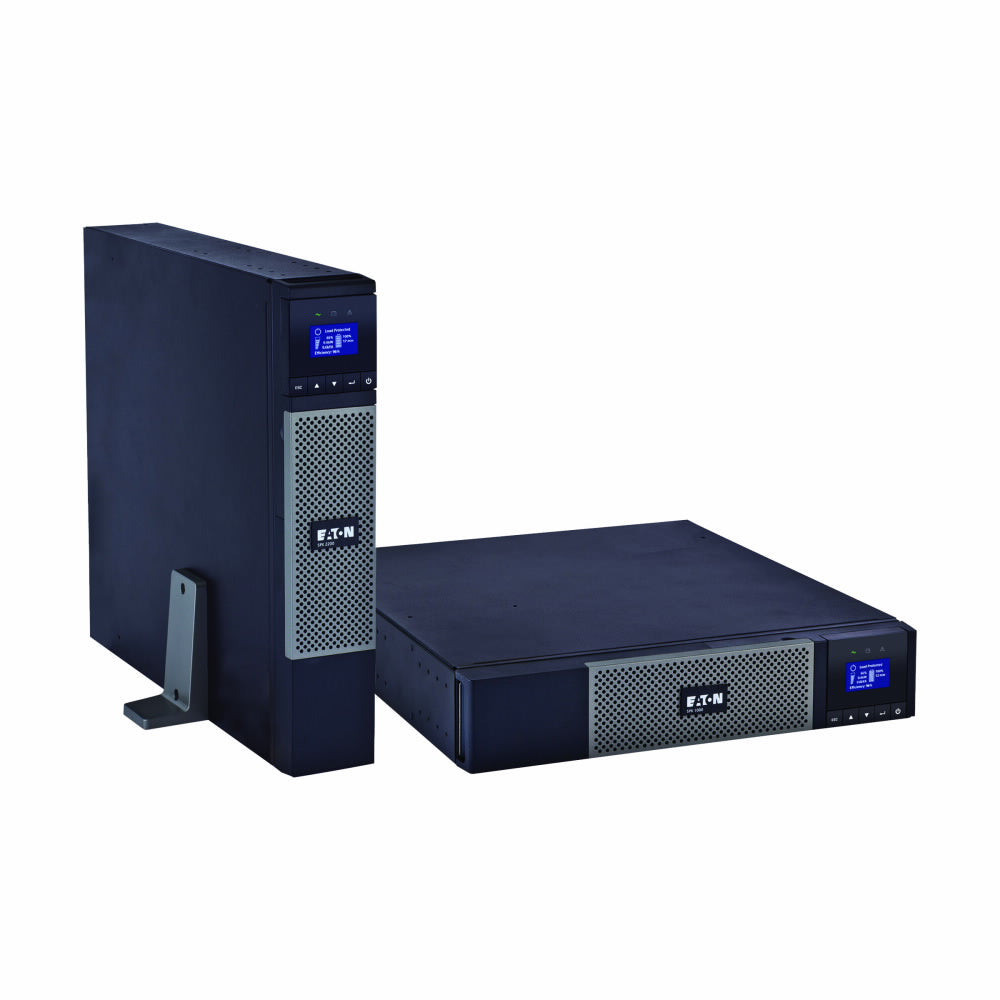

Configuration | Rack/Tower |
Catalog Number | 5PX1500iRT |
Color | Black |
Rating (VA/Watts) | 1500/1350 |
Diagnostics | Full system self-test at power up |
Dimensions (H x W x D, inches) | 3.4 x 17.4 x 20.6 |
Dimensions (H x W x D, mm) | 86 x 441 x 522 |
Weight (kg) | 28 |
Weight (lbs) | 61 |
Warranty | 3 years on electronics, 3 years on batteries with registration |

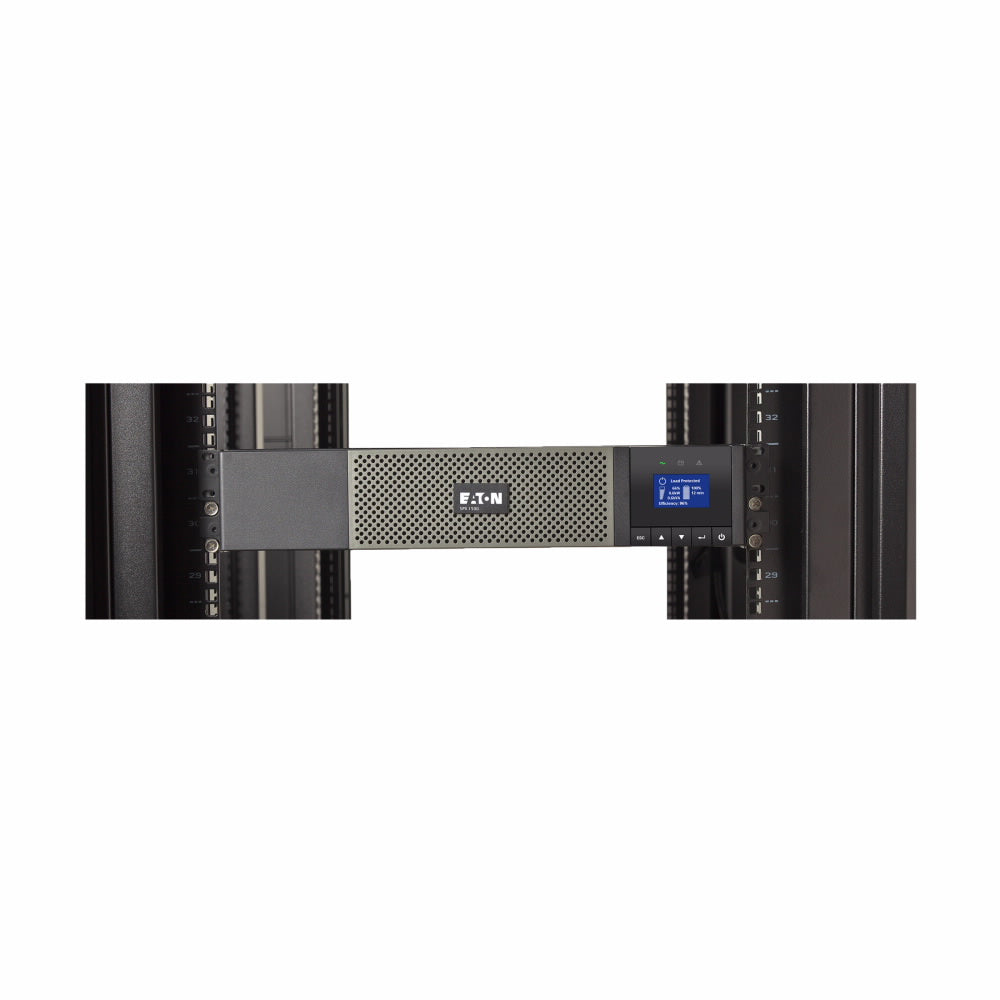

Rail Kit Included | Tower stands and 4-post rail kit included |
Contents (Ships with the following items) |
5PX1500iRT Four-post rail kit User manual CD Tower pedestals Intelligent Power Software Suite CD Quick start guide RS-232 serial cable USB cable 2 IEC to IEC jumper cables Phillips head screw driver |
Electrical Input | |
Connection |
(1) IEC-320-C14
|
Input Voltage Range | 160–294 Vac (adjustable to 150–294 Vac) |
Nominal Voltage | 230 Vac (adjustable to 200/208/220/230/240 Vac) |
Frequency | 50/60 Hz (auto-sensing) |
Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
Input Power Factor | 0.9 |
Electrical Output | |

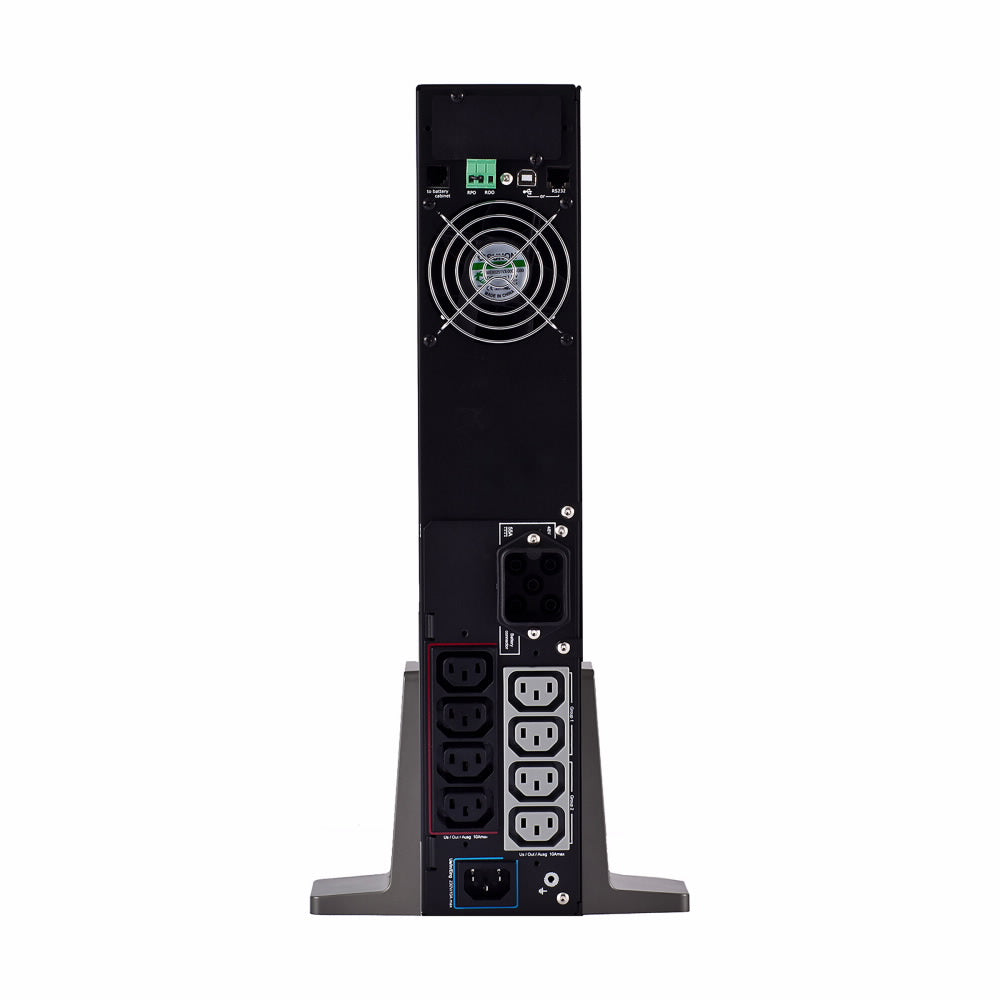

Output Receptacles |
(8) IEC-320-C13
|
On Utility Voltage Regulation | 184–265 Vac |
On Battery Voltage Regulation | -10%, +6% of nominal |
Output Frequency | 50/60 Hz ±0.1 % (autosensing) |
Transfer Time | 1–4 ms typical |
Load Segments | Group 1: (2) C13 outlets Group 2: (2) C13 outlets view load segments application note |
Communications | |

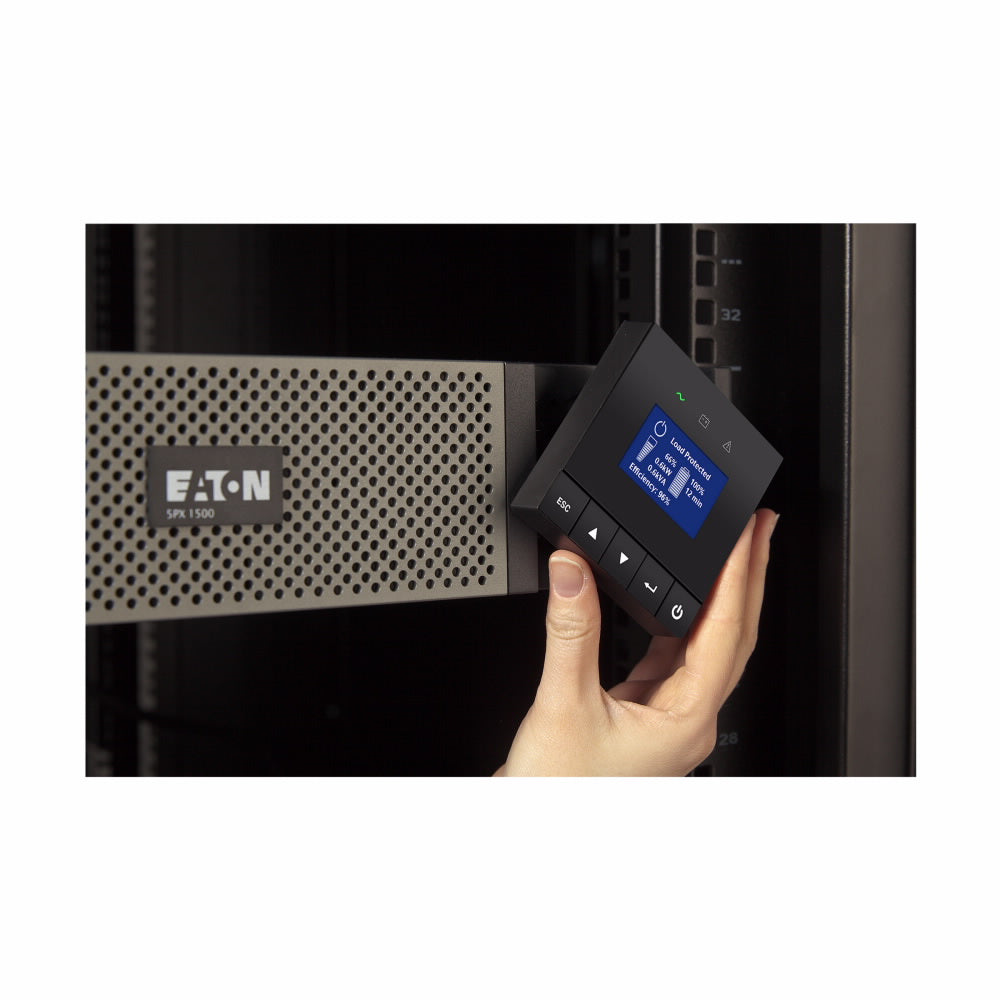

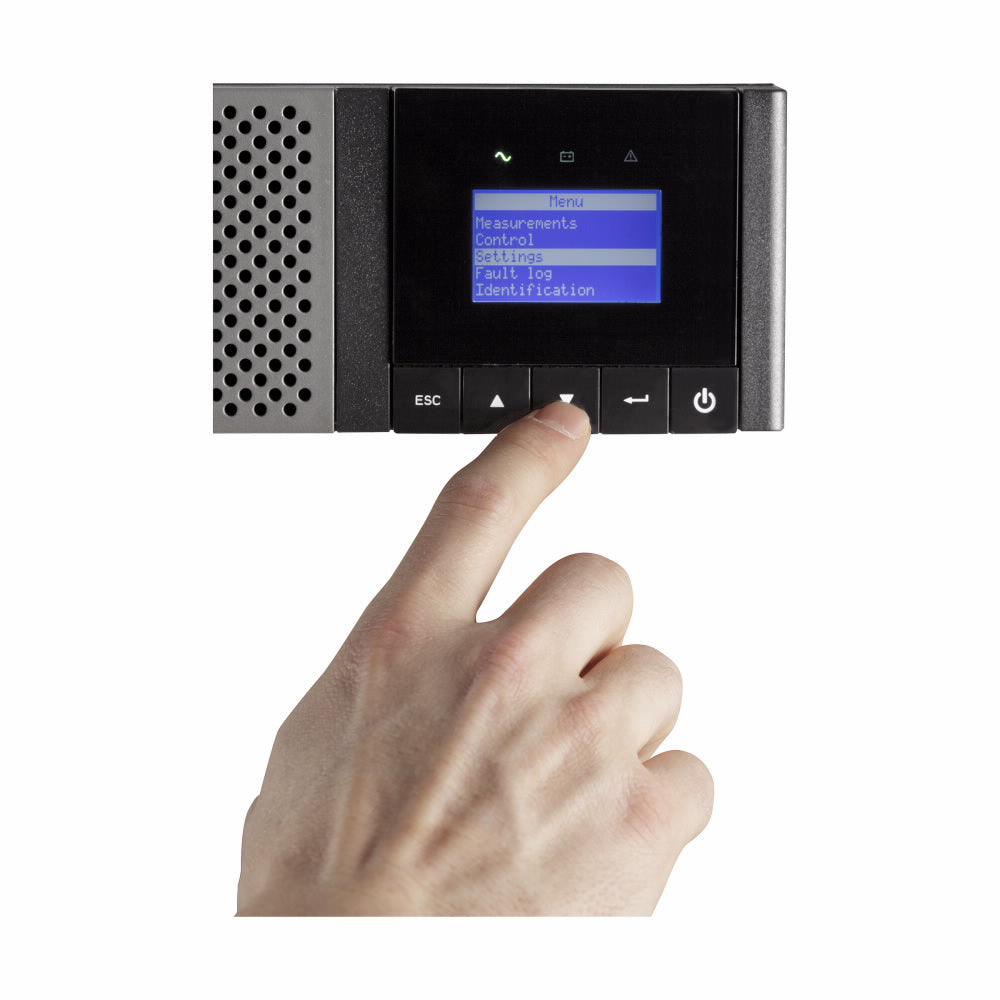

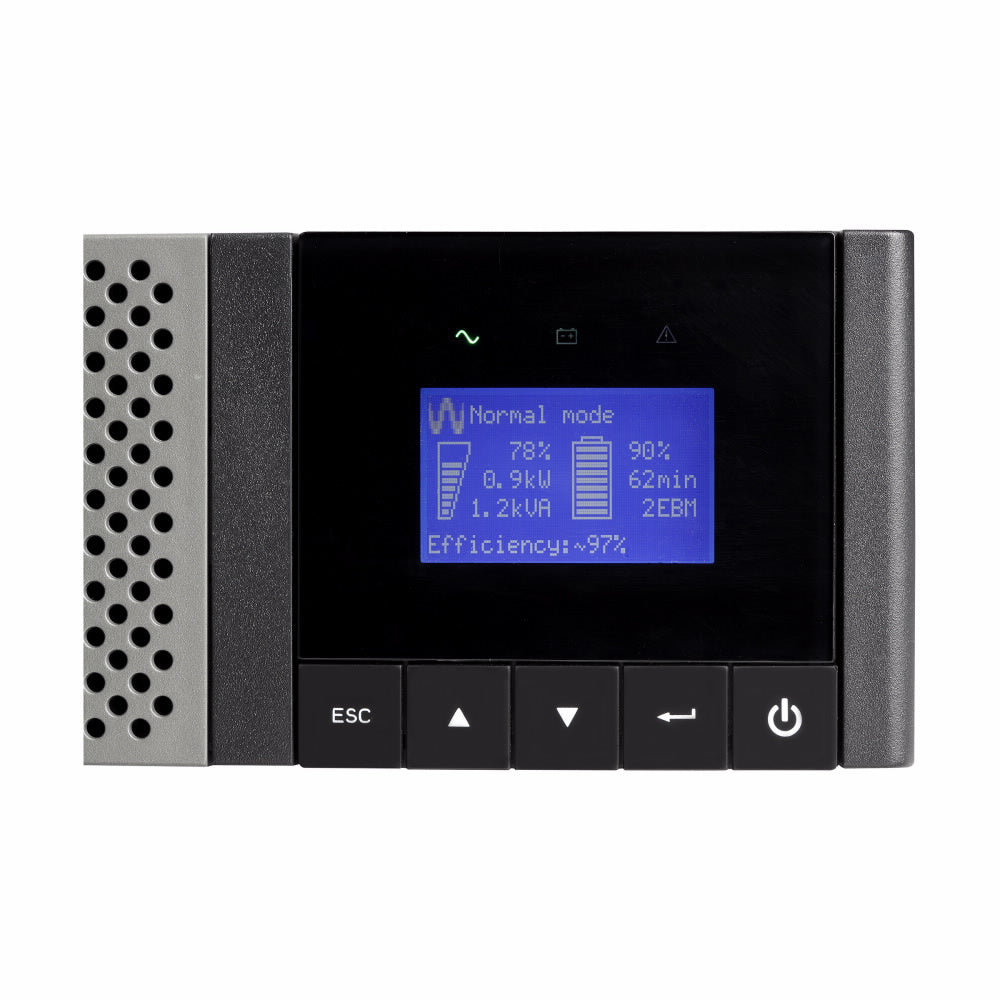

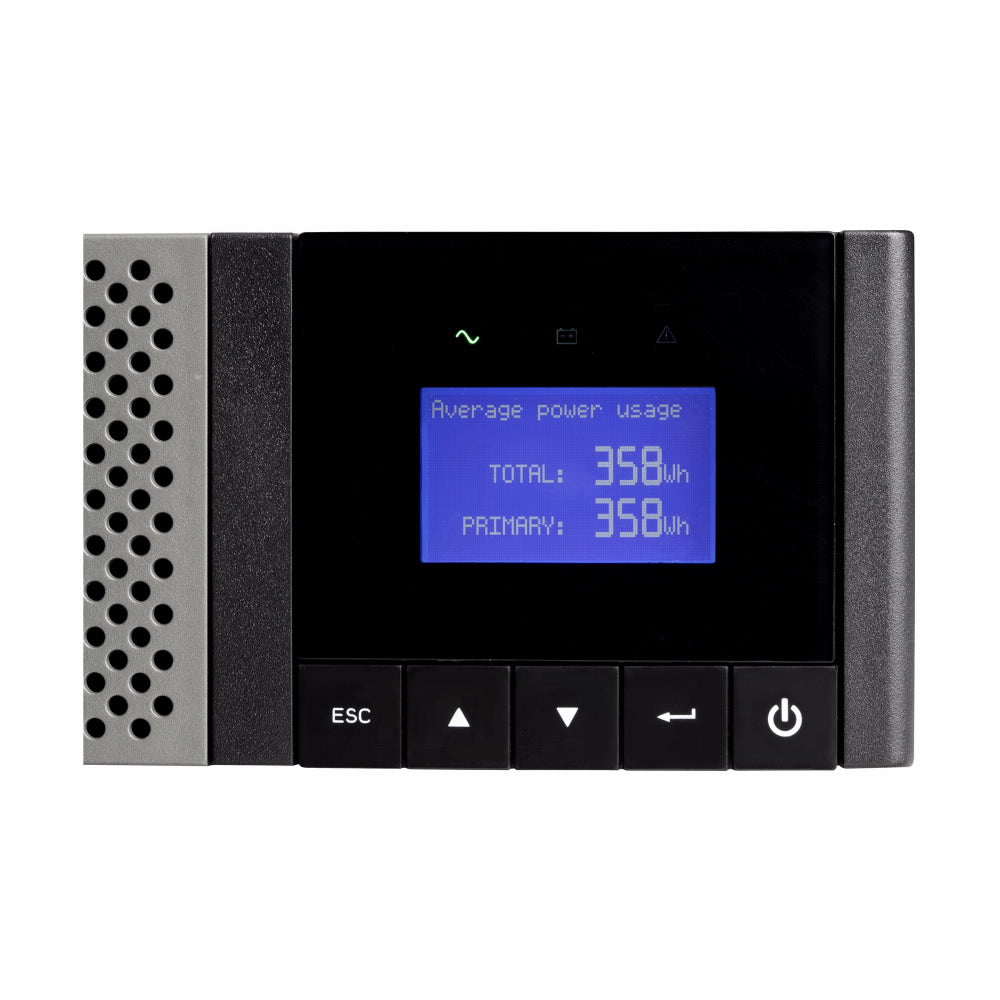

User Interface | LCD graphical display |
LEDs | Load protected, battery and fault |
Communication Ports | 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
Communications Card Slots | 1 slot for ConnectUPS-MS network management card |
Power Management Software | Eaton Intelligent Power Software Suite CD (included) |
Environmental & Standards | |
Heat Dissipation (BTU) | Line: 305, Battery: 2047 |
Audible Noise | <45 dBA |
Operating Temperature | 0°C–40°C (32°F–104°F) |
Performance - Safety - EMC | IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance) |
Safety markings | CE, CB report, TÜV |
Storage Temperature | -15°C–50°C (5°F–122°F) |
Relative Humidity | 20–95% non-condensing |
Altitude | Up to 10,000 ft (3000m) without de-rating |
