Eaton 5PX 5PX1500RT 1440VA/1440W 120V Rack/Tower Line Interactive UPS
$934.99
Eaton 5PX 5PX1500RT 1440VA/1440W 120V Rack/Tower Line Interactive UPS
General | |
Topology | Line interactive |

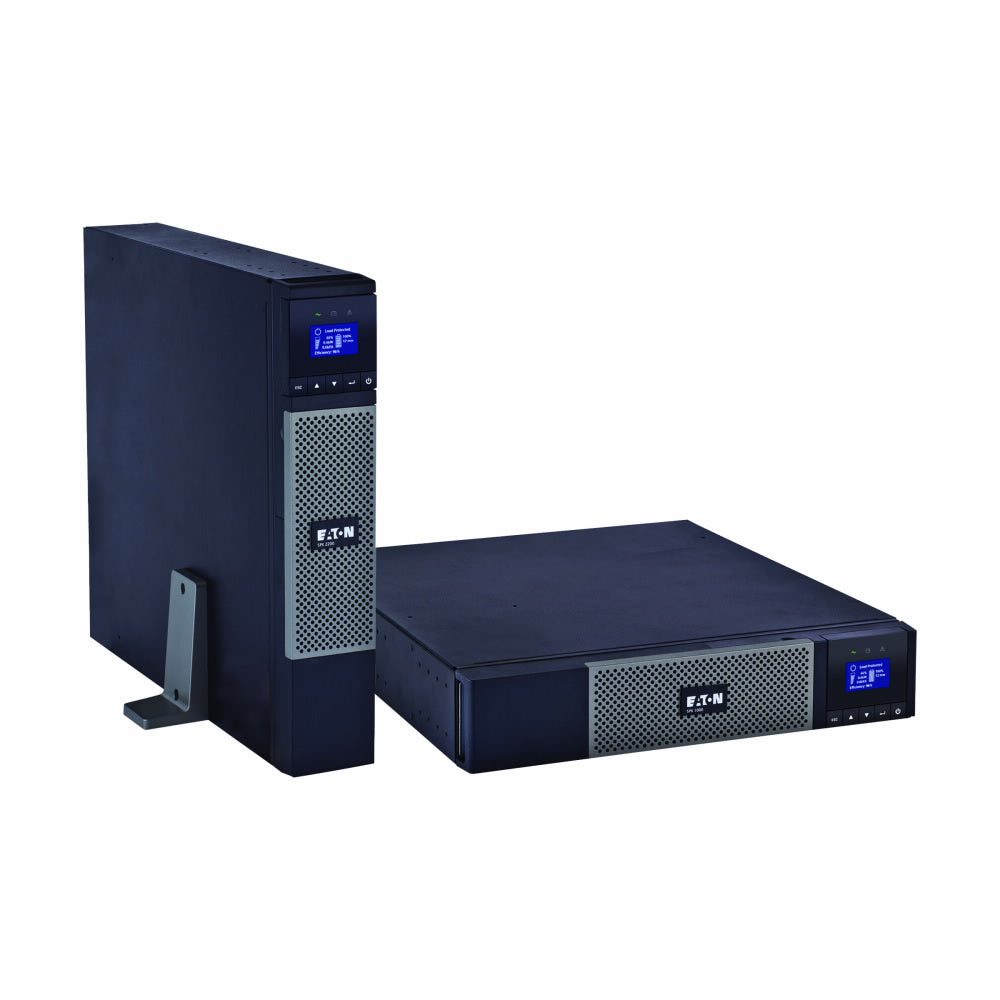

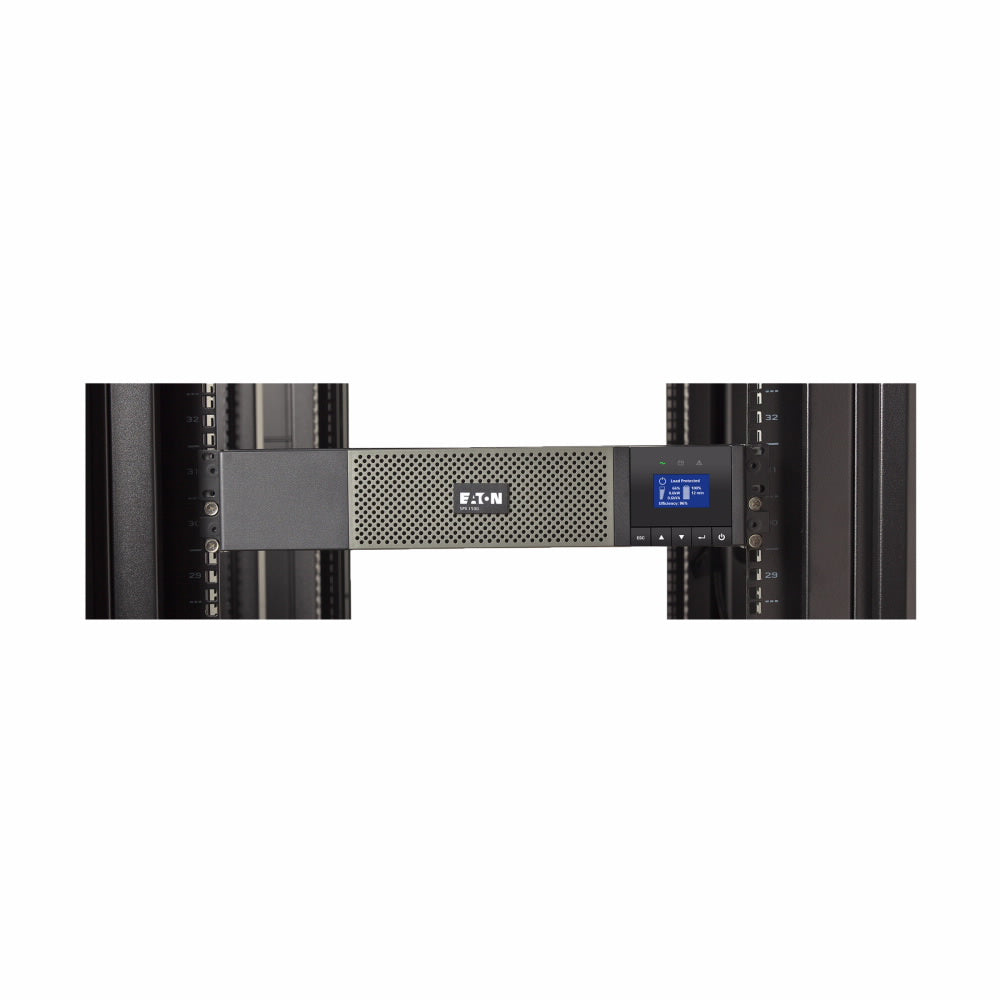

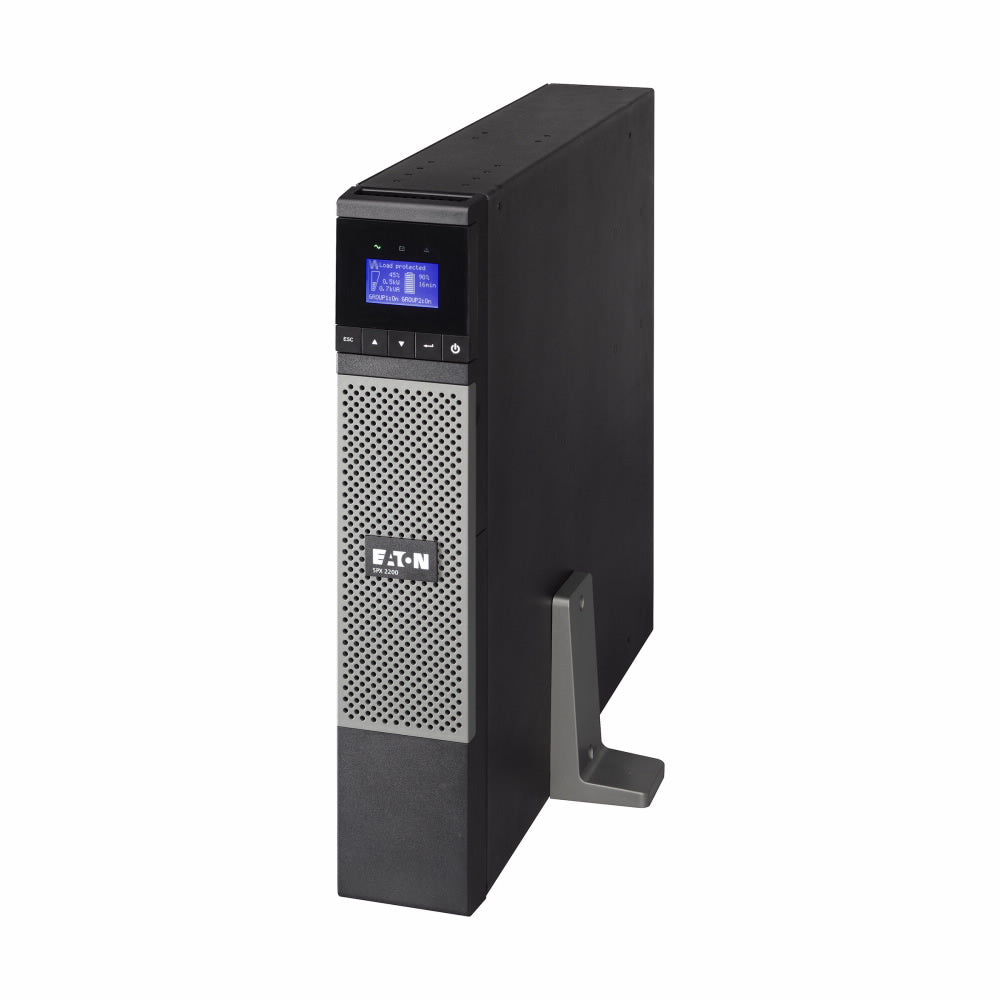

Configuration | Rack/Tower |
Catalog Number | 5PX1500RT |
Color | Black |
Rating (VA/Watts) | 1440/1440 |
Diagnostics | Full system self-test at power up |
UPS Bypass | EHBPL1500R-PDU1U (optional) |
Dimensions (H x W x D, inches) | 3.4 x 17.4 x 20.6 |
Dimensions (H x W x D, mm) | 86 x 441 x 522 |
Weight (kg) | 29 |
Weight (lbs) | 65 |
Warranty | 3 years on electronics, 3 years on batteries with registration |
Rail Kit Included | Tower stands and 4-post rail kit included |
Contents (Ships with the following items) |
5PX1500RT Four-post rail kit User manual CD Tower pedestals Intelligent Power Software Suite CD Quick start guide RS-232 serial cable USB cable Phillips head screw driver |
Electrical Input | |
Connection |
(1) NEMA 5-15P
|
Input Cord | 8 ft |
Input Voltage Range | 89–151 Vac (adjustable to 70–153 Vac) |
Nominal Voltage | 120 Vac (adjustable to100/120/127 Vac) |
Frequency | 50/60 Hz (auto-sensing) |
Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
Input Power Factor | 1 |
Electrical Output | |

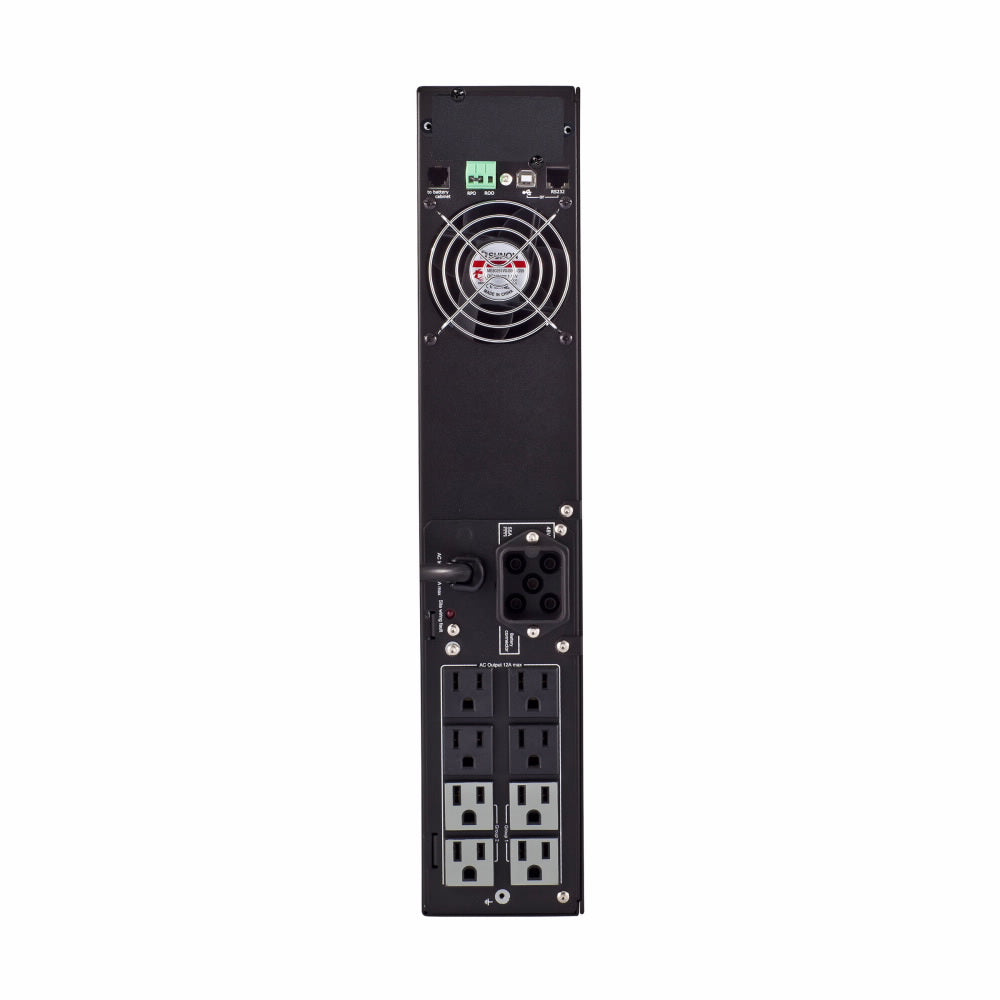

Output Receptacles |
(8) NEMA 5-15R
|
On Utility Voltage Regulation | 102–132 Vac |
On Battery Voltage Regulation | -10%, +6% of nominal |
Output Frequency | 50/60 Hz ±0.1 % (autosensing) |
Transfer Time | 1–4 ms typical |
Load Segments | Group 1: (2) 5-15R outlets Group 2: (2) 5-15R outlets view load segments application note |
Communications | |

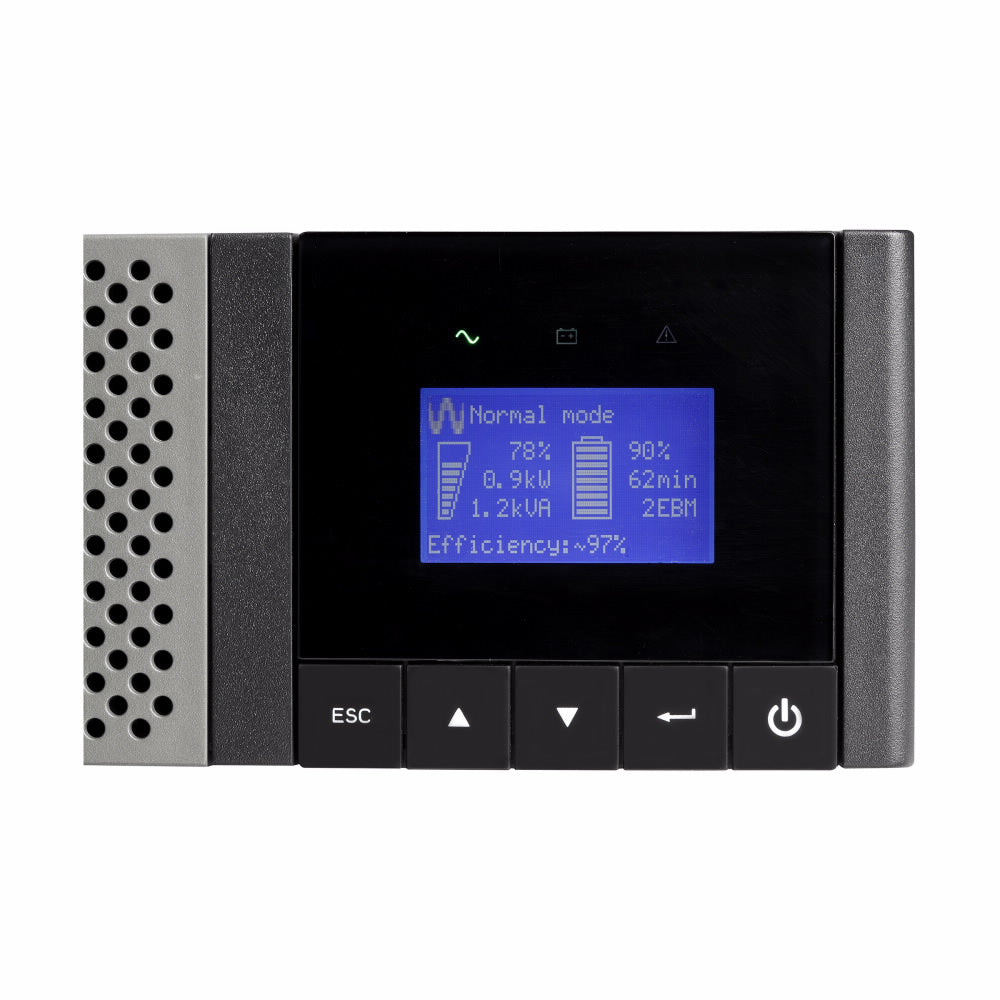

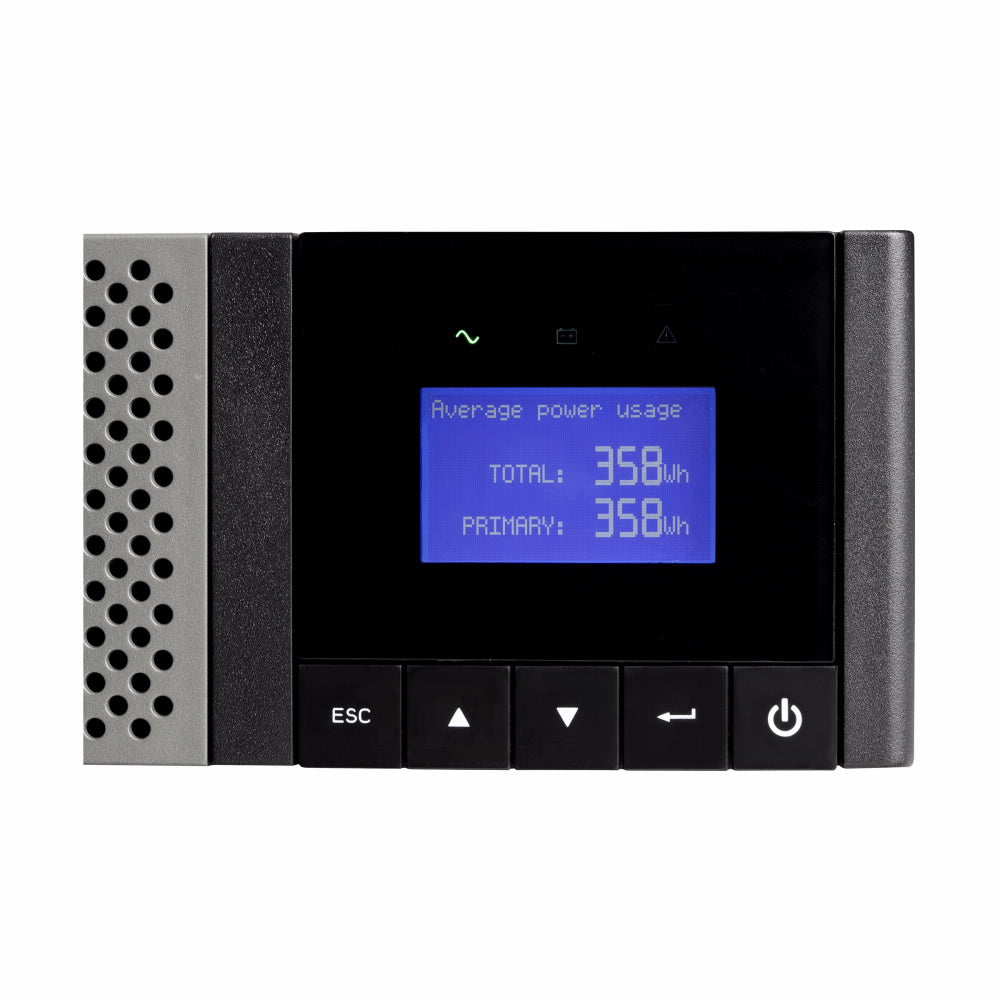

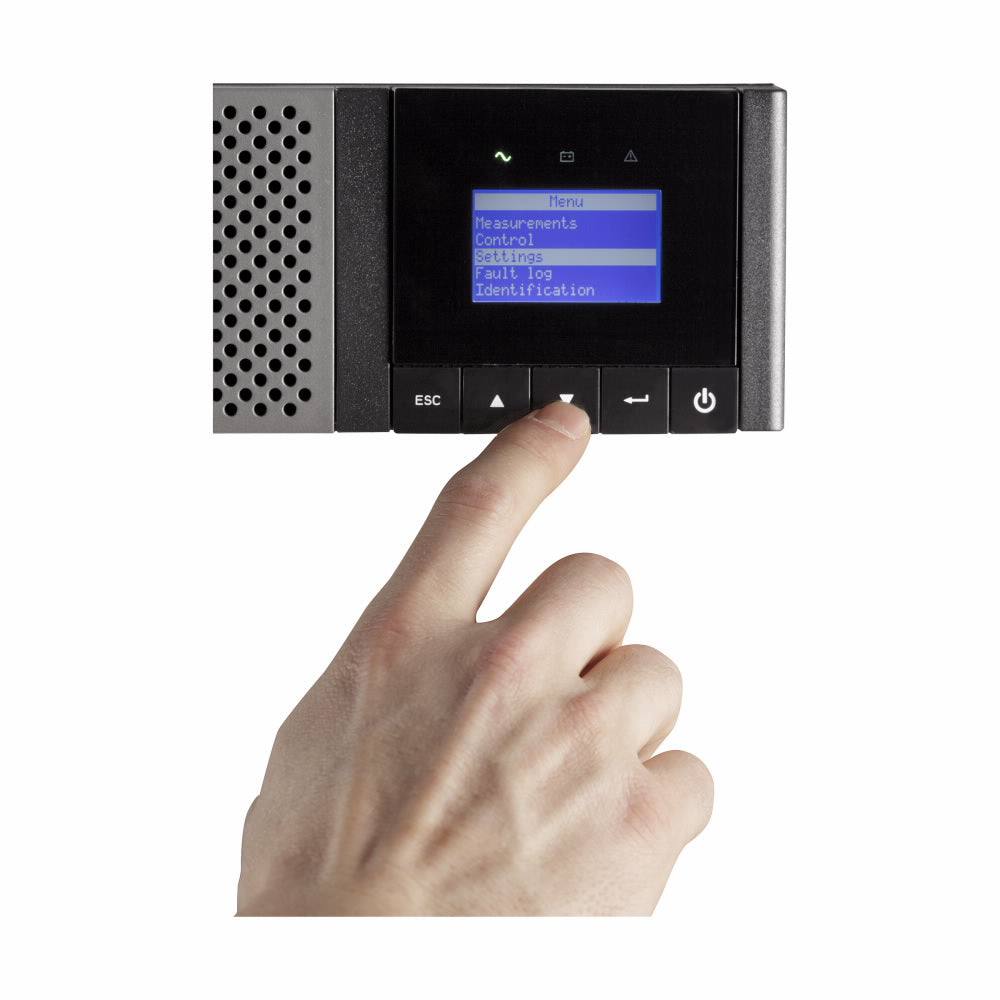

User Interface | LCD graphical display |
LEDs | Load protected, battery and fault |
Communication Ports | 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
Communications Card Slots | 1 slot for ConnectUPS-MS network management card |
Power Management Software | Eaton Intelligent Power Software Suite CD (included) |
Environmental & Standards | |
Heat Dissipation (BTU) | Line: 305, Battery: 2047 |
Audible Noise | <45 dBA |
Operating Temperature | 0°C–40°C (32°F–104°F) |
Performance - Safety - EMC | UL1778; UL497A; cUL |
Safety markings | UL, cUL |
EMC Markings | FCC Part 15 subpart B Class A |
Storage Temperature | -15°C–50°C (5°F–122°F) |
Relative Humidity | 20–95% non-condensing |
Altitude | Up to 10,000 ft (3000m) without de-rating |
