Eaton 5PX 5PX2200RT 1950VA/1920W 120V Rack/Tower Line Interactive UPS
$1,583.99
Eaton 5PX 5PX2200RT 1950VA/1920W 120V Rack/Tower Line Interactive UPS
| General | |
| Topology | Line interactive |

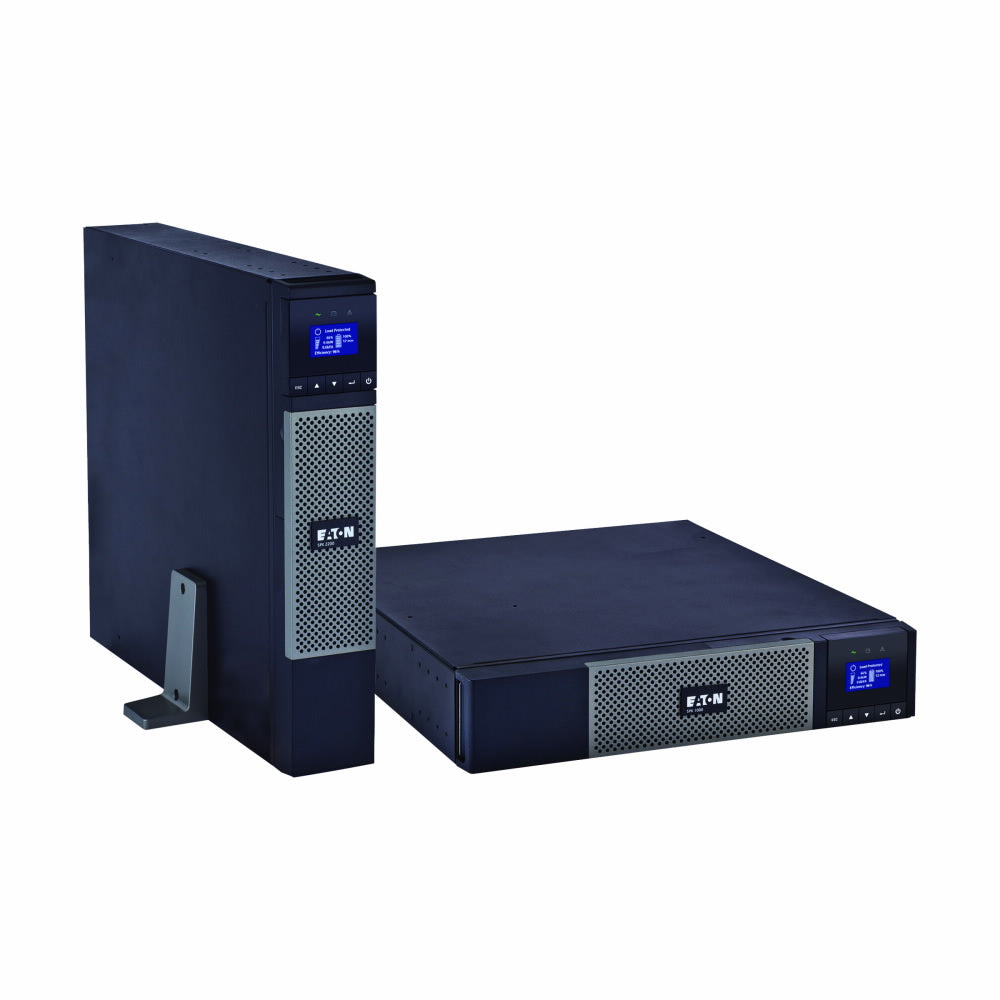

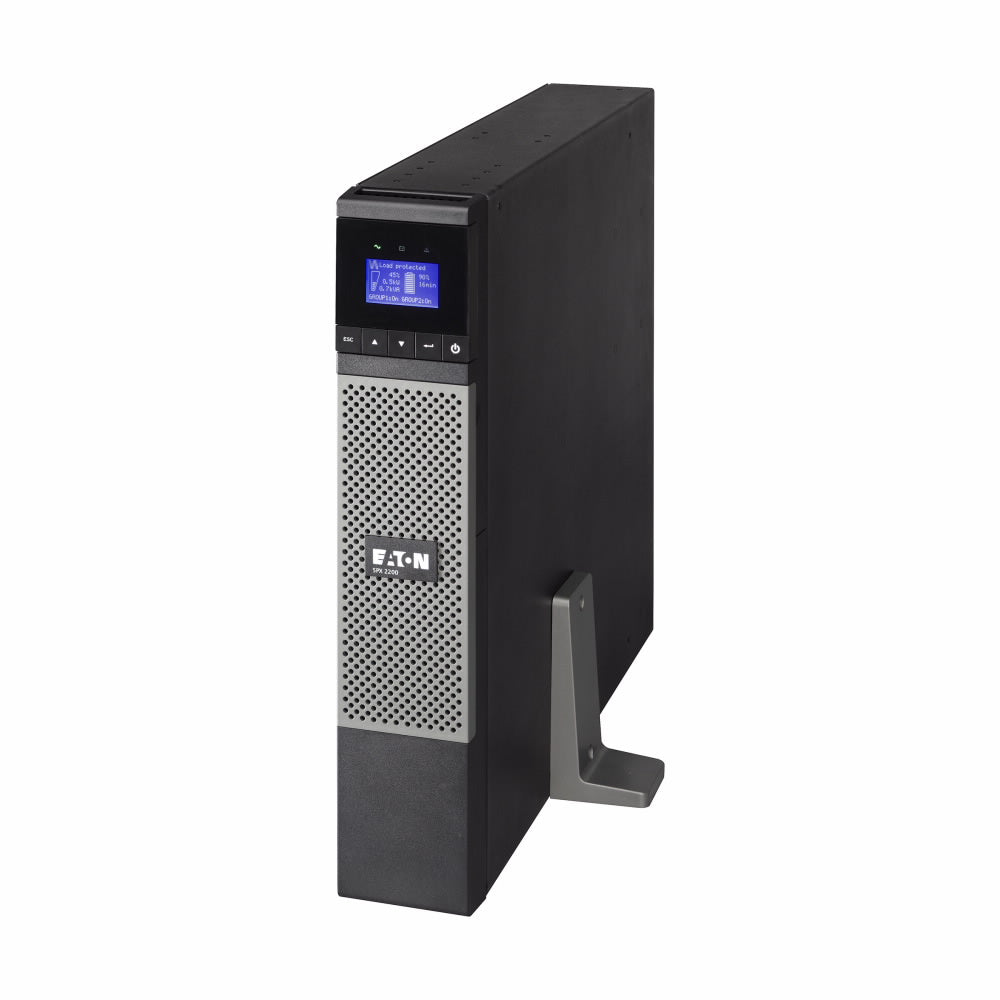

| Configuration | Rack/Tower |
| Catalog Number | 5PX2200RT |
| Color | Black |
| Rating (VA/Watts) | 1950/1920 |
| Diagnostics | Full system self-test at power up |
| UPS Bypass | EHBPL2000R-PDU1U (optional) |
| Dimensions (H x W x D, inches) | 3.4 x 17.4 x 20.6 |
| Dimensions (H x W x D, mm) | 86 x 441 x 522 |
| Weight (kg) | 30 |
| Weight (lbs) | 65 |
| Warranty | 3 years on electronics, 3 years on batteries with registration |

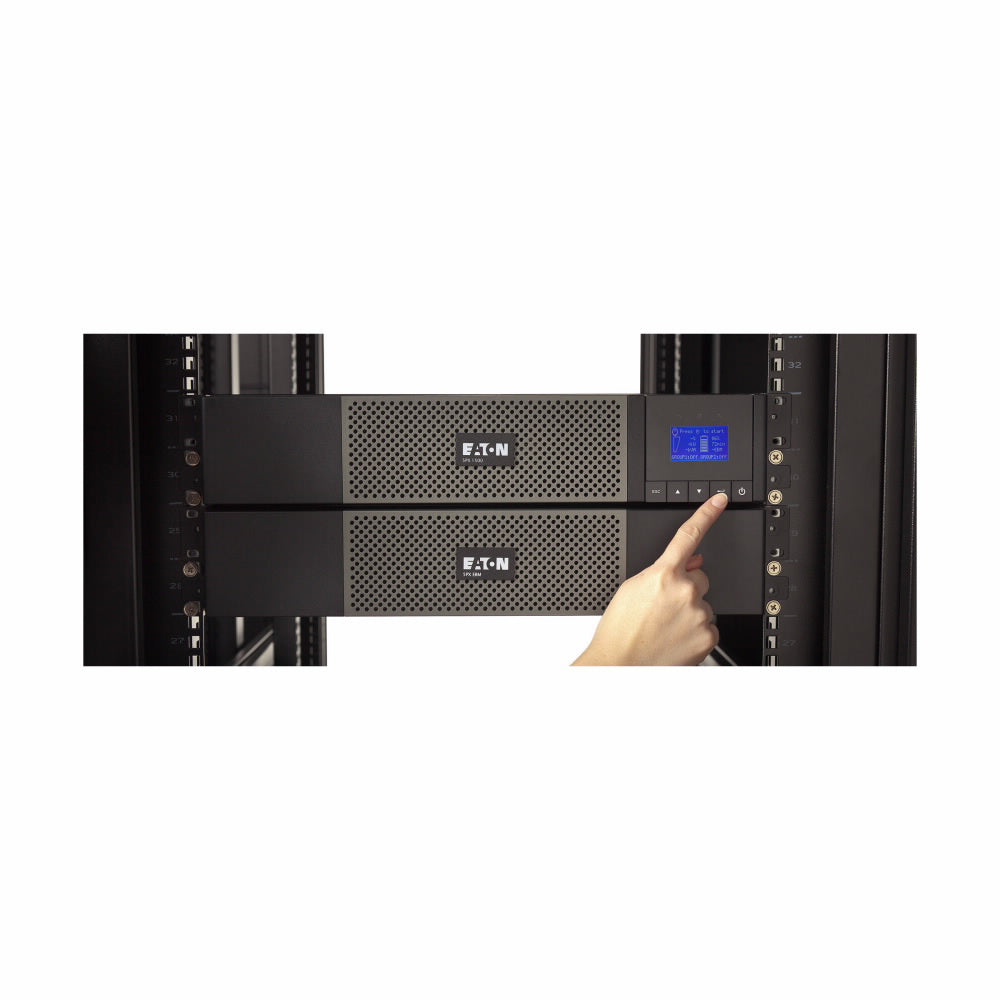

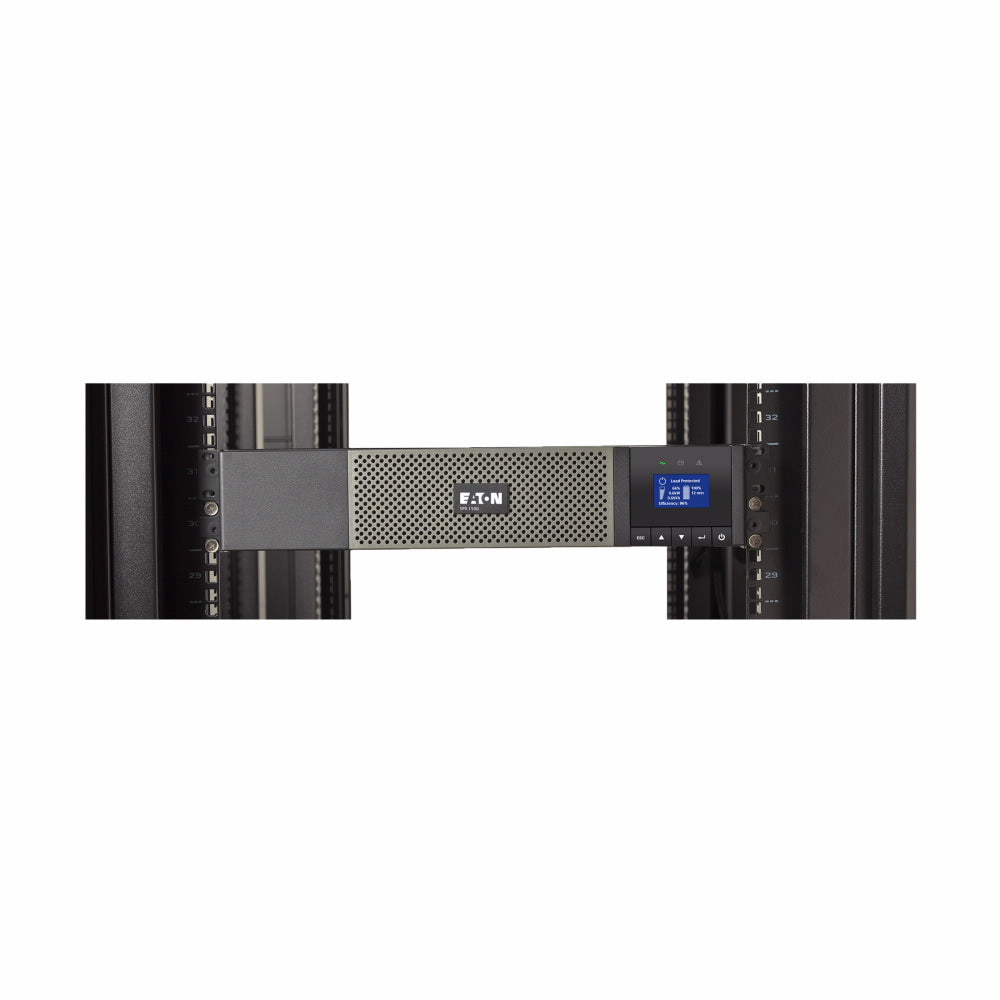

| Rail Kit Included | Tower stands and 4-post rail kit included |
| Contents (Ships with the following items) |
5PX2200RT Four-post rail kit User manual CD Tower pedestals Intelligent Power Software Suite CD Quick start guide RS-232 serial cable USB cable Phillips head screw driver |
| Electrical Input | |
| Connection |
(1) NEMA 5-20P
|
| Input Cord | 8ft |
| Input Voltage Range | 89–151 Vac (adjustable to 70–153 Vac) |
| Nominal Voltage | 120 Vac (adjustable to100/120/127 Vac) |
| Frequency | 50/60 Hz (auto-sensing) |
| Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Input Power Factor | 0.98 |
| Electrical Output | |

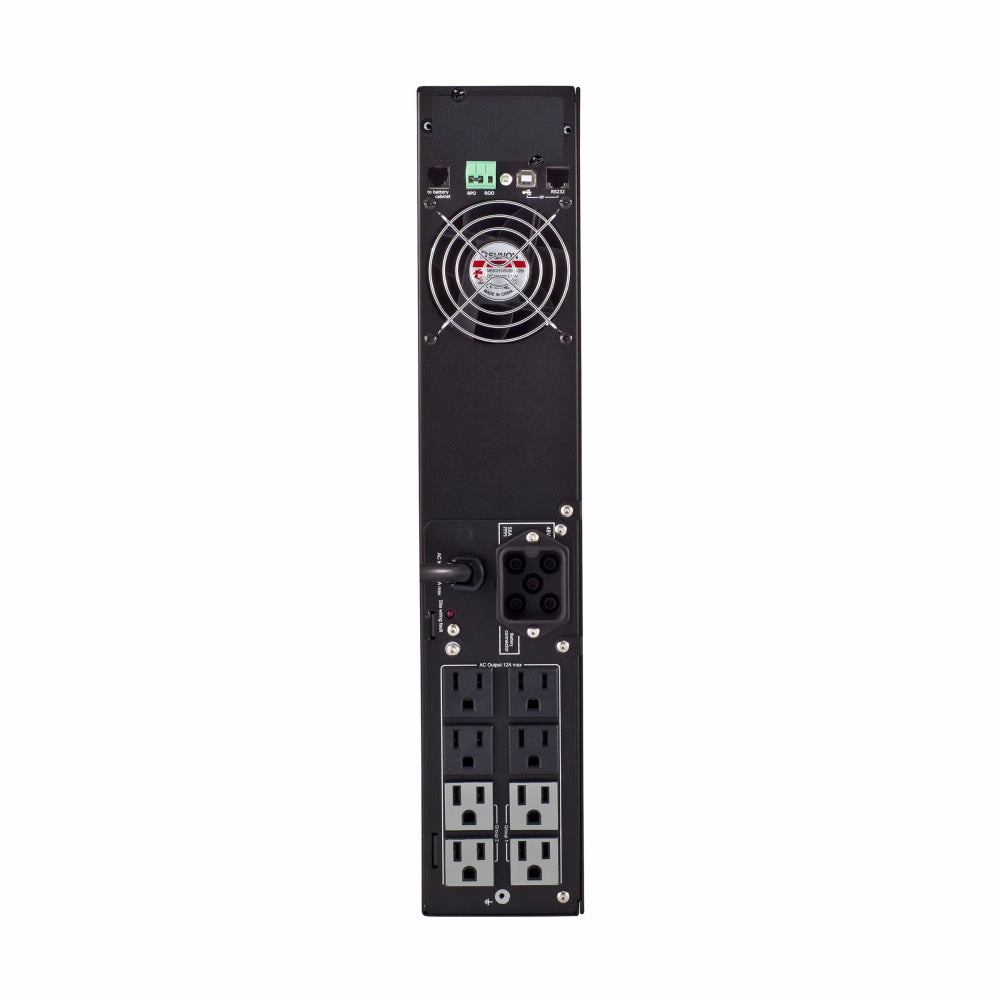

| Output Receptacles |
(8) NEMA 5-20R
|
| On Utility Voltage Regulation | 102–132 Vac |
| On Battery Voltage Regulation | -10%, +6% of nominal |
| Output Frequency | 50/60 Hz ±0.1 % (autosensing) |
| Transfer Time | 1–4 ms typical |
| Load Segments | Group 1: (2) 5-20R outlets Group 2: (2) 5-20R outlets view load segments application note |
| Communications | |

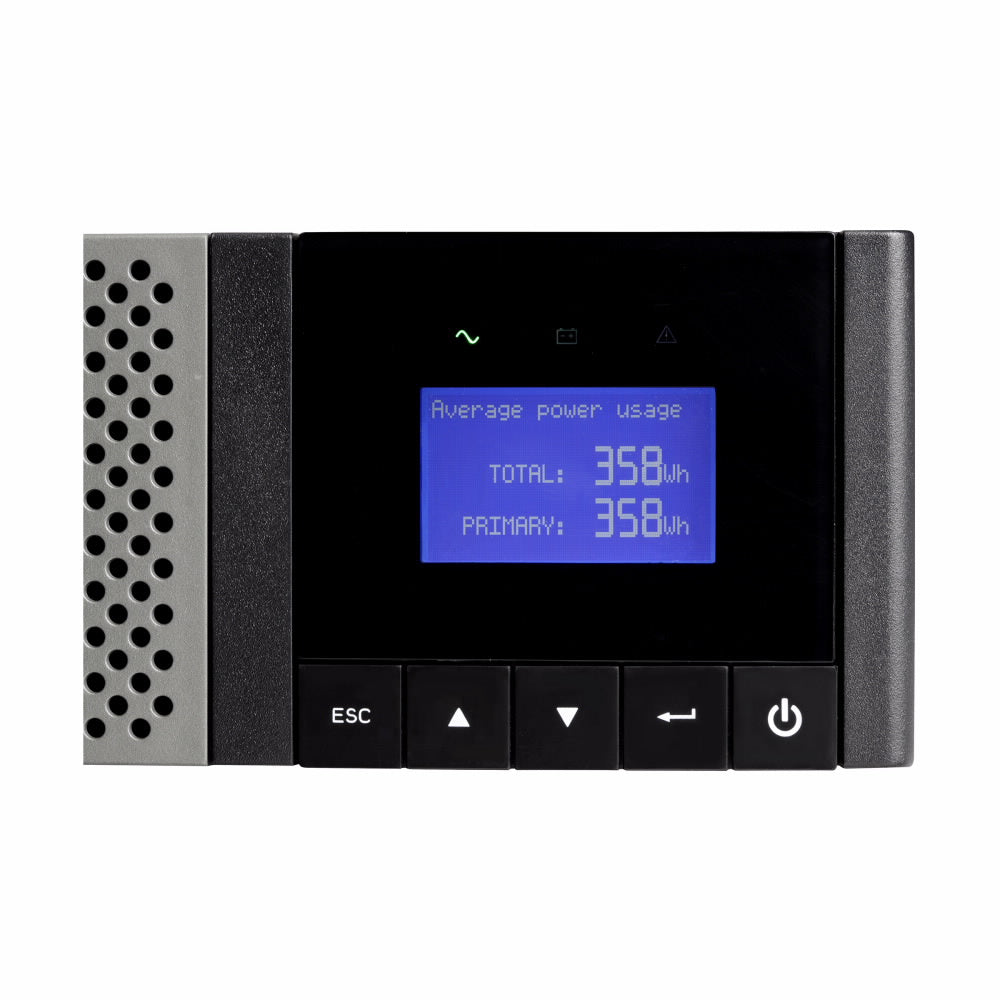

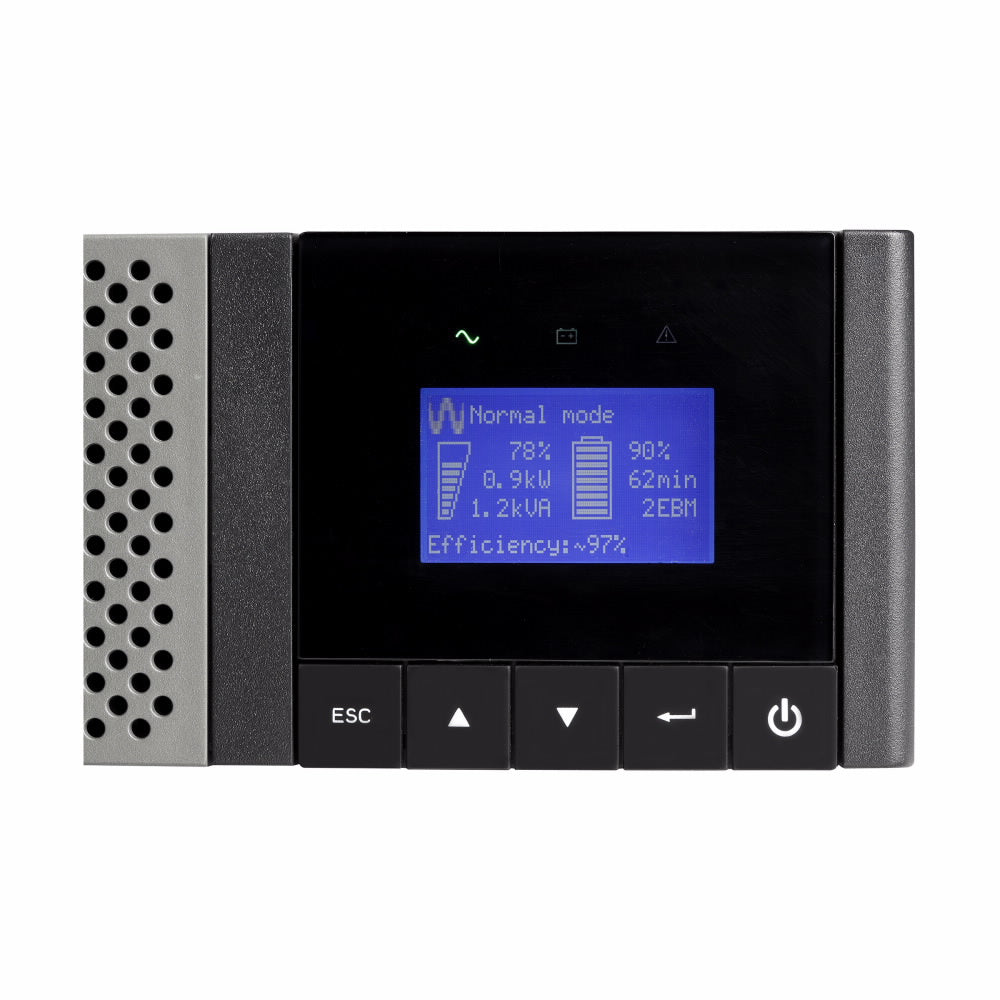

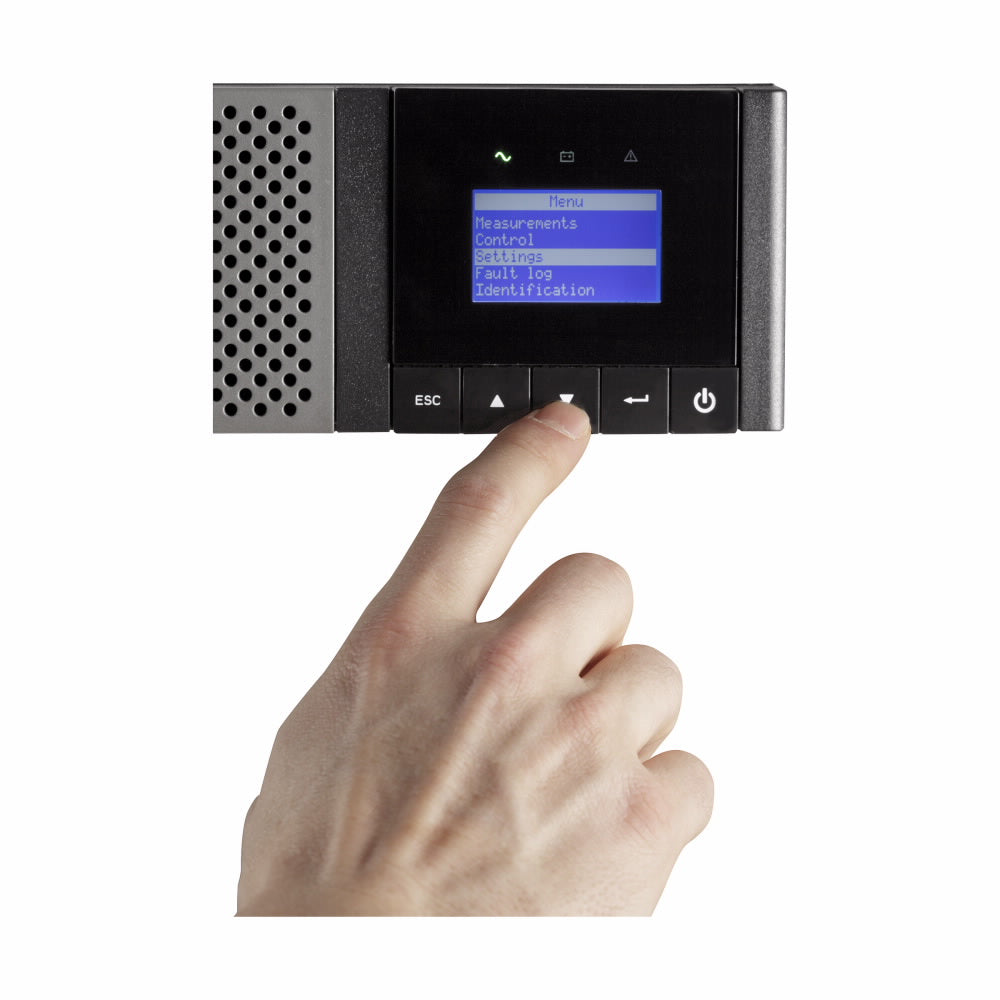

| User Interface | LCD graphical display |
| LEDs | Load protected, battery and fault |
| Communication Ports | 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) |
| Communications Card Slots | 1 slot for ConnectUPS-MS network management card |
| Power Management Software | Eaton Intelligent Power Software Suite CD (included) |
| Environmental & Standards | |
| Heat Dissipation (BTU) | Line: 305, Battery: 2047 |
| Audible Noise | <45 dBA |
| Operating Temperature | 0°C–40°C (32°F–104°F) |
| Performance - Safety - EMC | UL1778; UL497A; cUL |
| Safety markings | UL, cUL |
| EMC Markings | FCC Part 15 subpart B Class A |
| Storage Temperature | -15°C–50°C (5°F–122°F) |
| Relative Humidity | 20–95% non-condensing |
| Altitude | Up to 10,000 ft (3000m) without de-rating |
