$2,214.99 Sale Save

Only 0 left in stock

Eaton 5PX 5PX3000iRT2U 3000VA/2700W 208/230V Rack/Tower Line Interactive UPS


General
Topology Line interactive

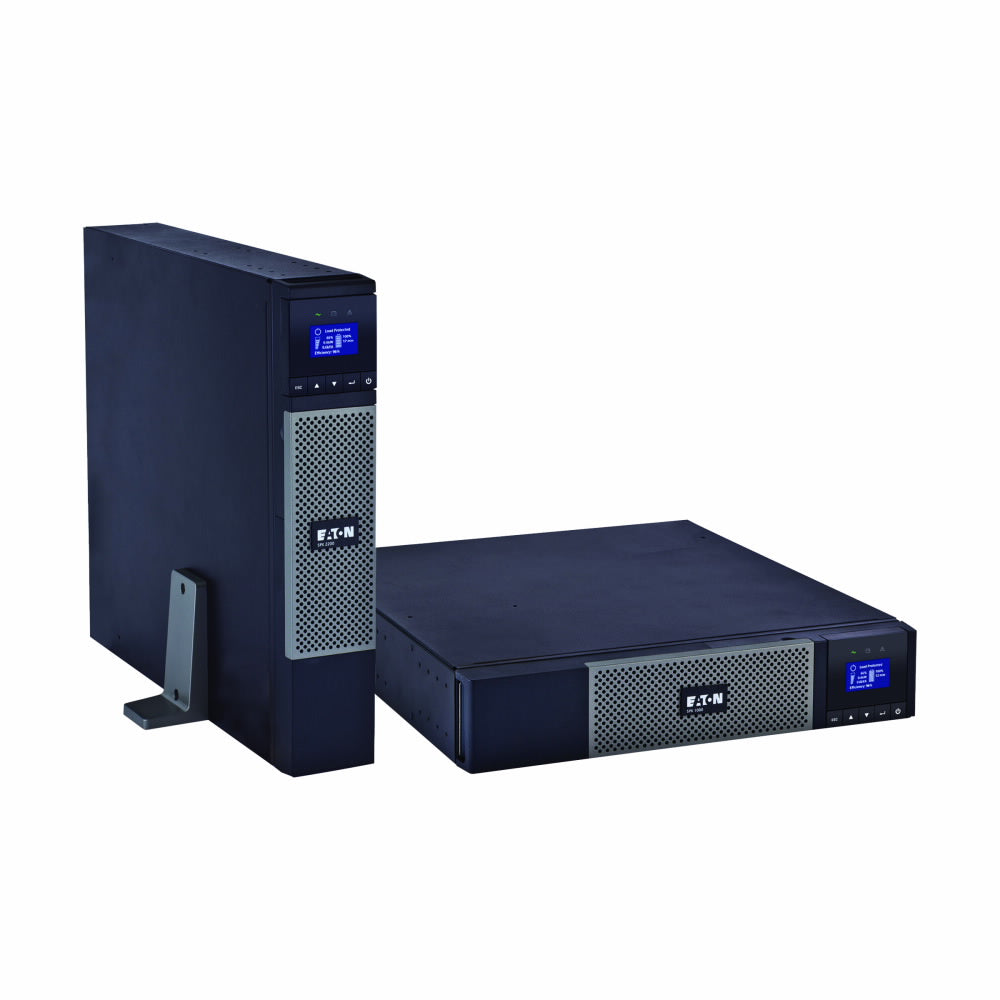

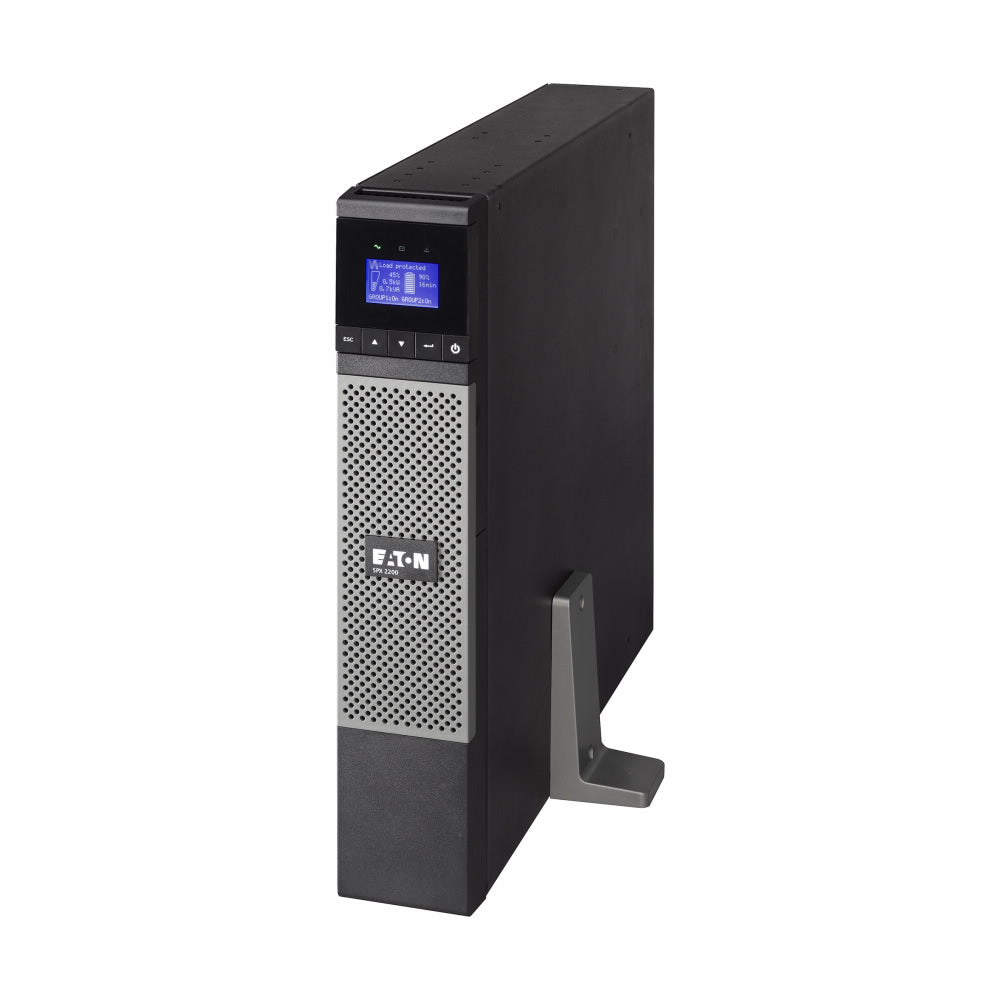

Configuration Rack/Tower
Catalog Number 5PX3000iRT2U
Color Black
Rating (VA/Watts) 3000/2700

Diagnostics Full system self-test at power up
Dimensions (H x W x D, inches) 3.4 x 17.4 x 25.5
Dimensions (H x W x D, mm) 86 x 441 x 647
Weight (kg) 38
Weight (lbs) 84
Warranty 3 years on electronics, 3 years on batteries with registration

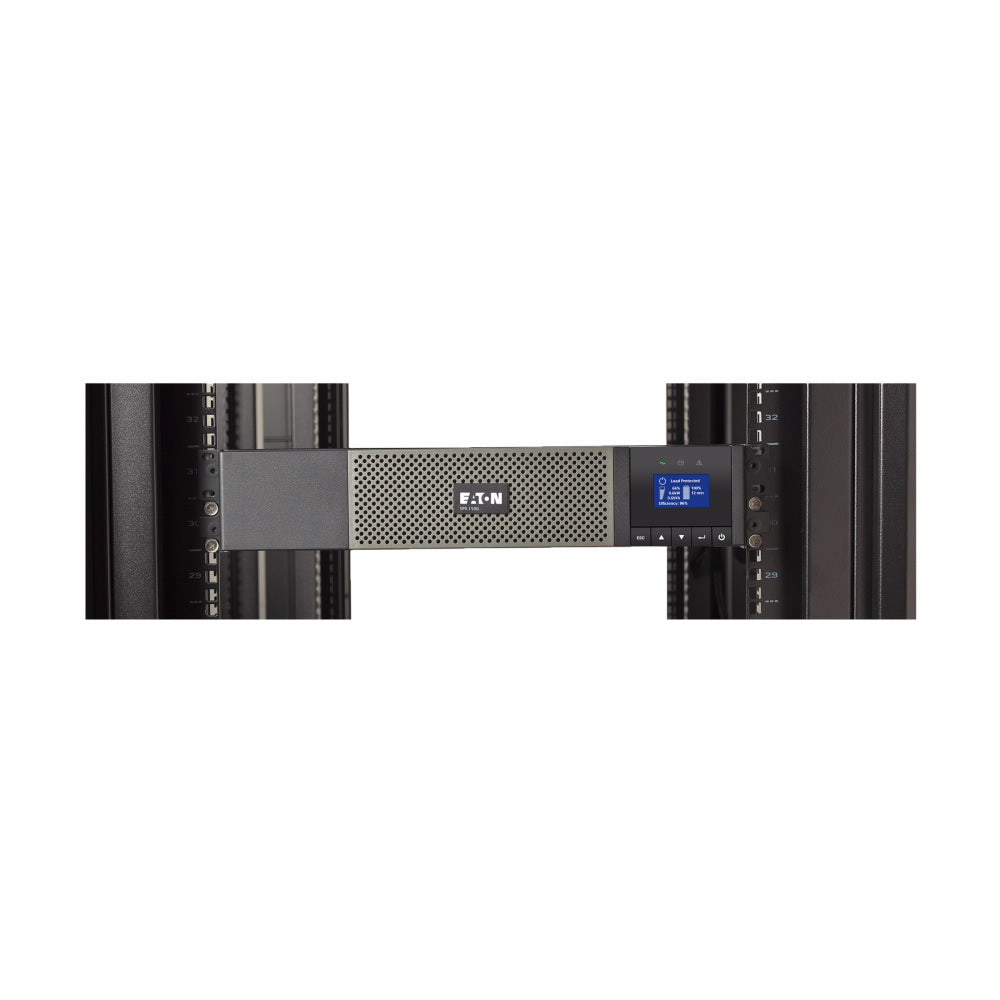

Rail Kit Included Tower stands and 4-post rail kit included
Contents
(Ships with the following items)
5PX3000iRT2U
Four-post rail kit
User manual CD
Tower pedestals
Intelligent Power Software Suite CD
Quick start guide
RS-232 serial cable
USB cable
2 IEC to IEC jumper cables
Phillips head screw driver
Electrical Input
Connection
(1) IEC-320-C20

Input Voltage Range 160–294 Vac (adjustable to 150–294 Vac)
Nominal Voltage 230 Vac (adjustable to 200/208/220/230/240 Vac)
Frequency 50/60 Hz (auto-sensing)
Frequency Range 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Input Power Factor 0.9

Electrical Output

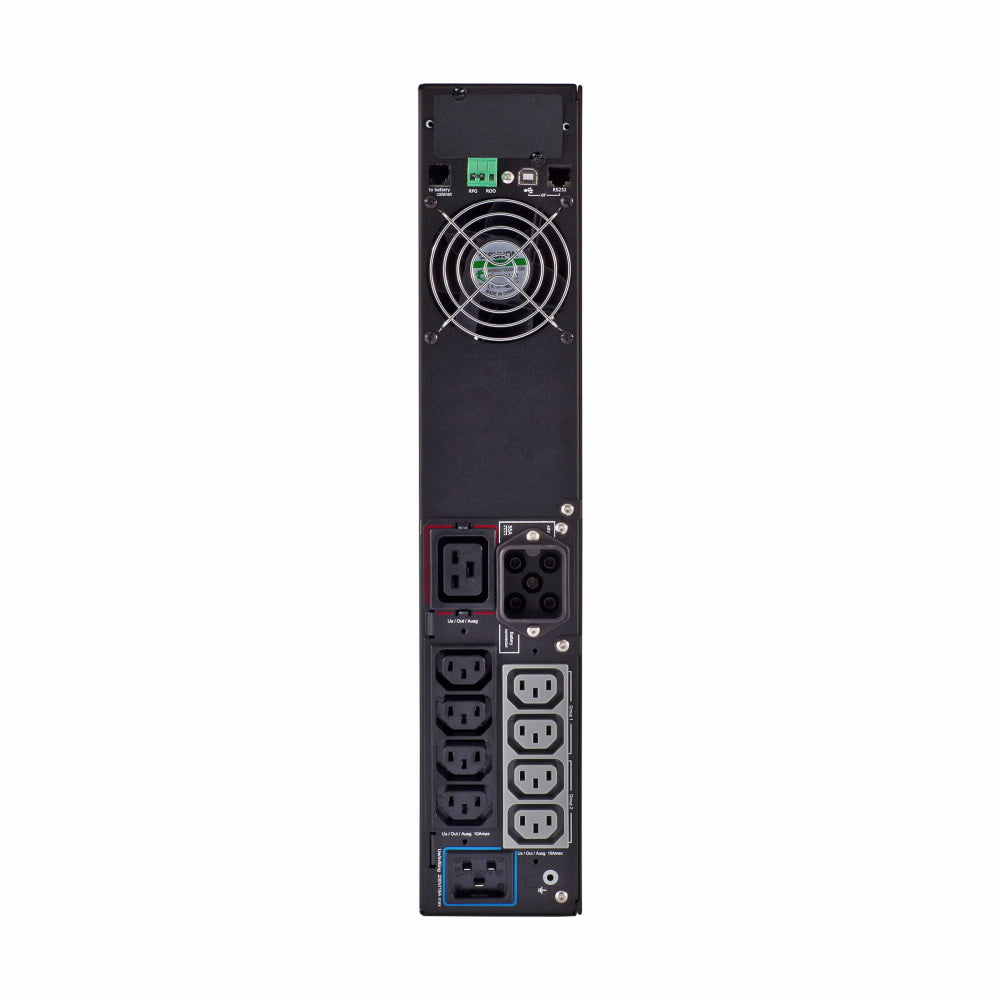

Output Receptacles
(8) IEC-320-C13

(1) IEC-320-C19

On Utility Voltage Regulation 184–265 Vac
On Battery Voltage Regulation -10%, +6% of nominal
Output Frequency 50/60 Hz ±0.1 % (autosensing)
Transfer Time 1–4 ms typical
Load Segments Group 1: (2) C13 outlets Group 2: (2) C13 outlets
view load segments application note
Communications

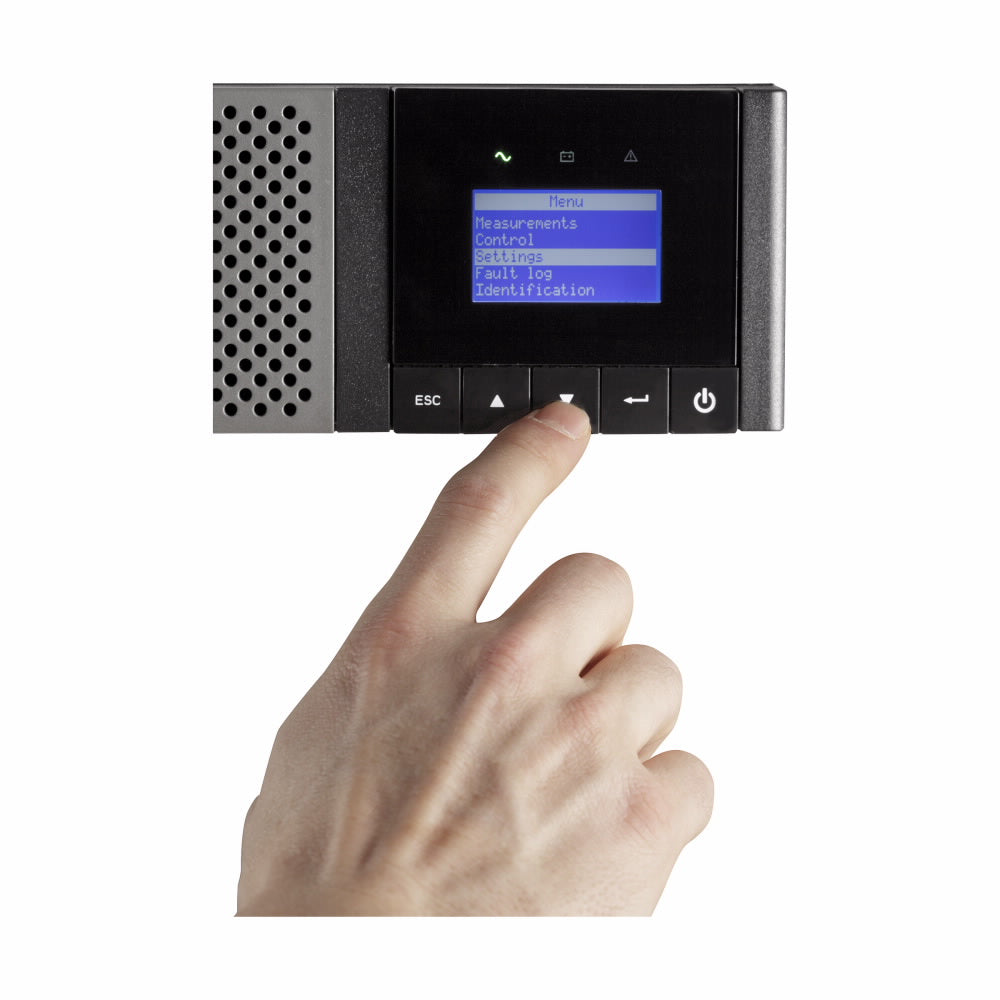

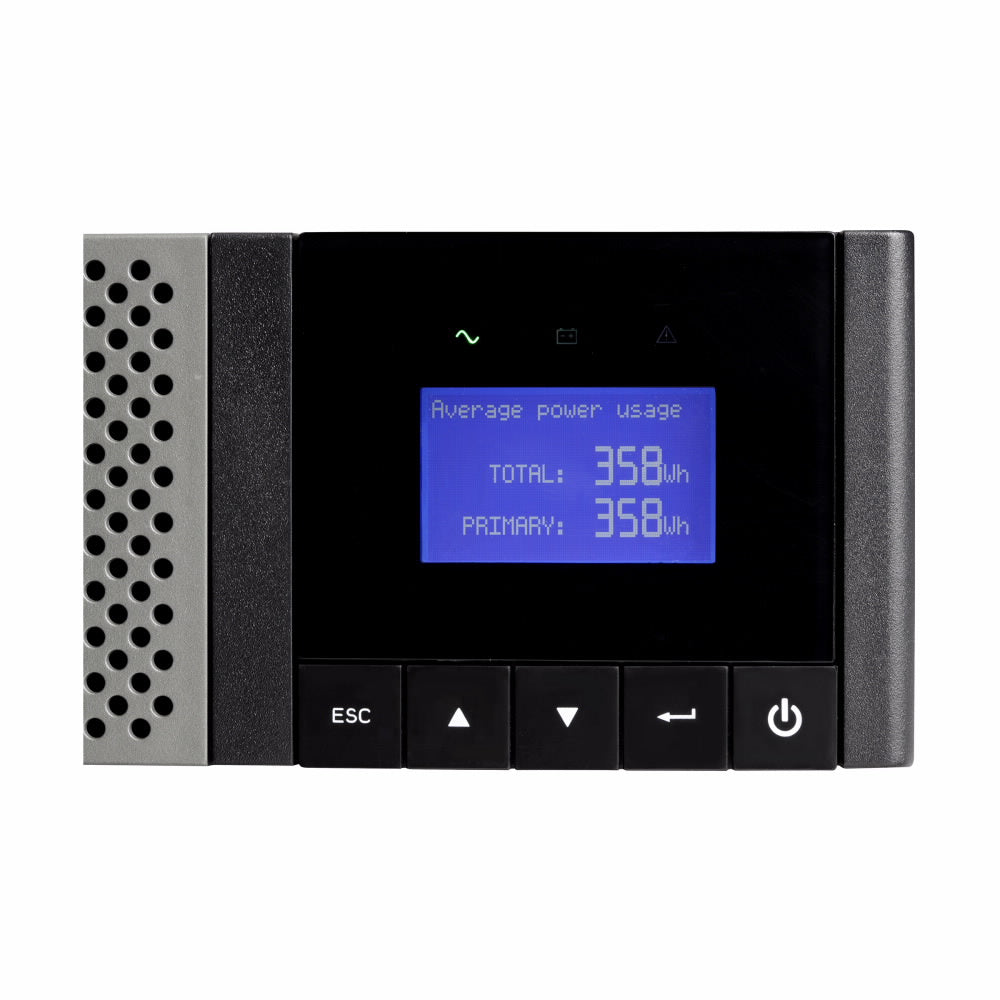

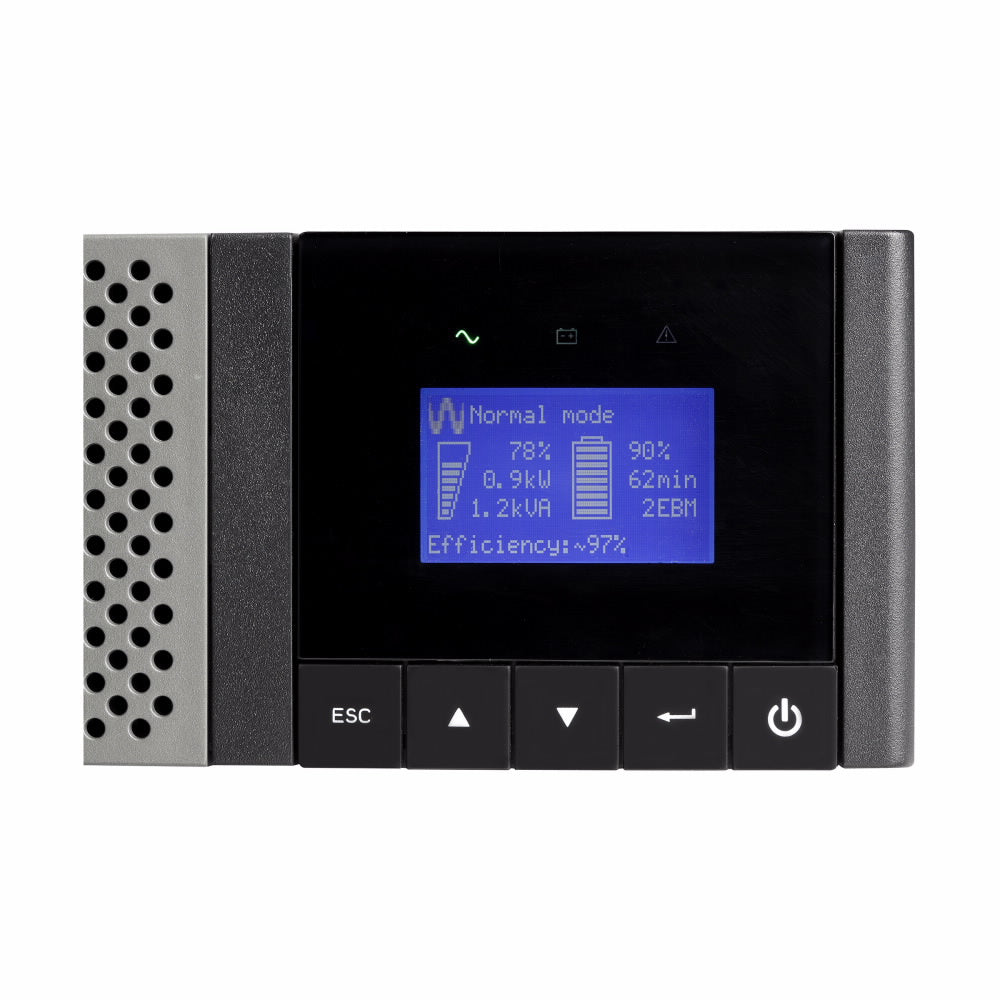

User Interface LCD graphical display
LEDs Load Protected, Battery, and Fault
Communication Ports 1 USB HID compliant port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously)
Communications Card Slots 1 slot for ConnectUPS-MS network management card
Power Management Software Eaton Intelligent Power Software Suite CD (included)

Environmental & Standards
Heat Dissipation (BTU) Line: 305, Battery: 2047
Audible Noise <50 dBA
Operating Temperature 0°C–40°C (32°F–104°F)
Performance - Safety - EMC IEC/EN 62040-1-1 (Safety), IEC/EN 62040-2 (EMC), IEC/EN 62040-3 (Performance)
Safety markings CE, CB report, TÜV
Storage Temperature -15°C–50°C (5°F–122°F)
Relative Humidity 20–95% non-condensing
Altitude Up to 10,000 ft (3000m) without de-rating
