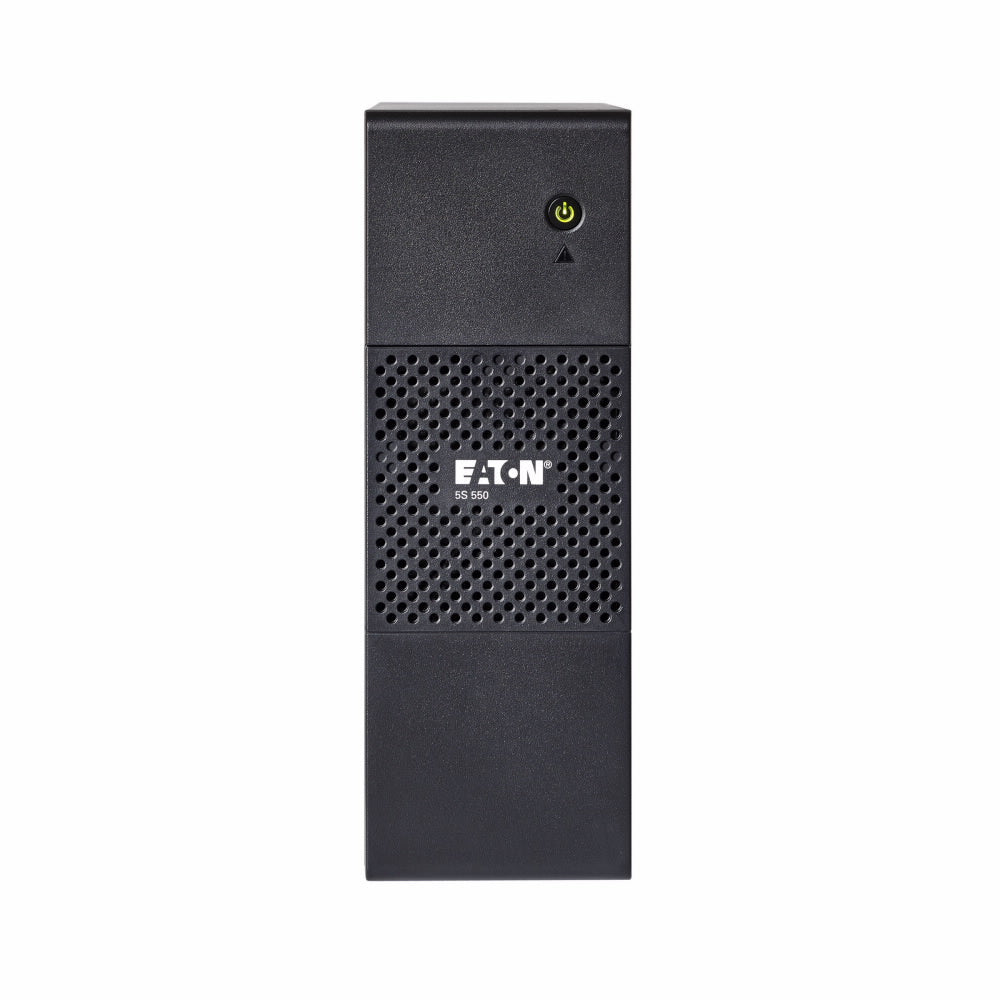

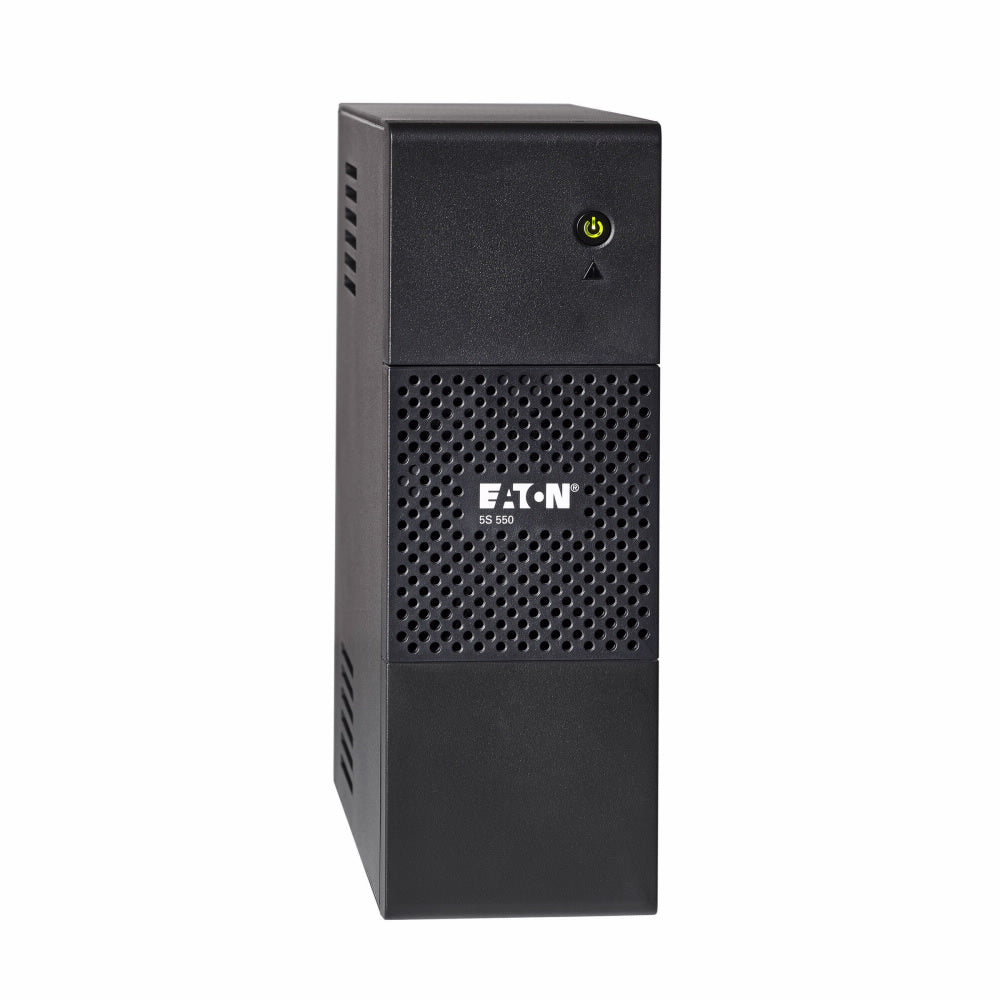

Eaton 5S 5S700G 700VA / 420W 230V Line-interactive Tower UPS 3 Year Warranty
Eaton 5S 5S700G 700VA / 420W 230V Line-interactive Tower UPS 3 Year Warranty
| General | |
| Topology | Line-interactive |
| Configuration | Tower |
| Catalog Number | 5S700G |
| UPC Number | 743172 04314 6 |
| Color | Black |
| Rating (VA/Watts) | 700/420 |
| Diagnostics | Full system self test at power up |
| Dimensions (H x W x D, inches) | 9.8 x 3.4 x 10.2 |
| Dimensions (H x W x D, mm) | 249 x 86 x 259 |
| Weight (kg) | 5.9 |
| Weight (lbs) | 13.1 |
| Warranty | 3 years, includes batteries |
| Contents (Ships with the following items) |
UPS USB cable User manual |
| Efficiency | >95% |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 175-275 Vac |
| Nominal Voltage | 230Vac |
| Operating Frequency | 50/60 Hz (autosensing) |
| Frequency Range | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) |
| Electrical Output | |
| Nominal Voltage | 230 Vac |
| Output Receptacles |
(6) IEC-320-C13
|
| Communications | |
| Communication Ports | USB HID port as standard, 6-ft USB cable included |
| Power Management Software | Enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion Software |
| Environmental & Standards | |
| RoHS Compliance | Yes |
| Surge Protection | Yes. Line & network line |
| Audible Noise | < 25 dB in normal mode |
| Operating Temperature | 0 to 35°C (32°F to 95°F) |
| Performance - Safety - EMC | UL 1778, UL497A |
| Safety markings | CE / cTUVus |
| Storage Temperature | -15°C – 40°C (5°F – 104°F) |
| Relative Humidity | 0–90% non-condensing |
