Eaton 5S 5S700LCD 700VA / 420W 120V Line-interactive Tower UPS
$247.90
Eaton 5S 5S700LCD 700VA / 420W 120V Line-interactive Tower UPS 3 Year Warranty
General specifications
| Product Name | Eaton 5S UPS |
| Catalog Number | 5S700LCD |
| UPC | 743172043542 |
| Dimensions (DxHxW) inches |
10.2 x 9.8 x 3.4 |
| Weight | 13.1 LBS |
Electrical output

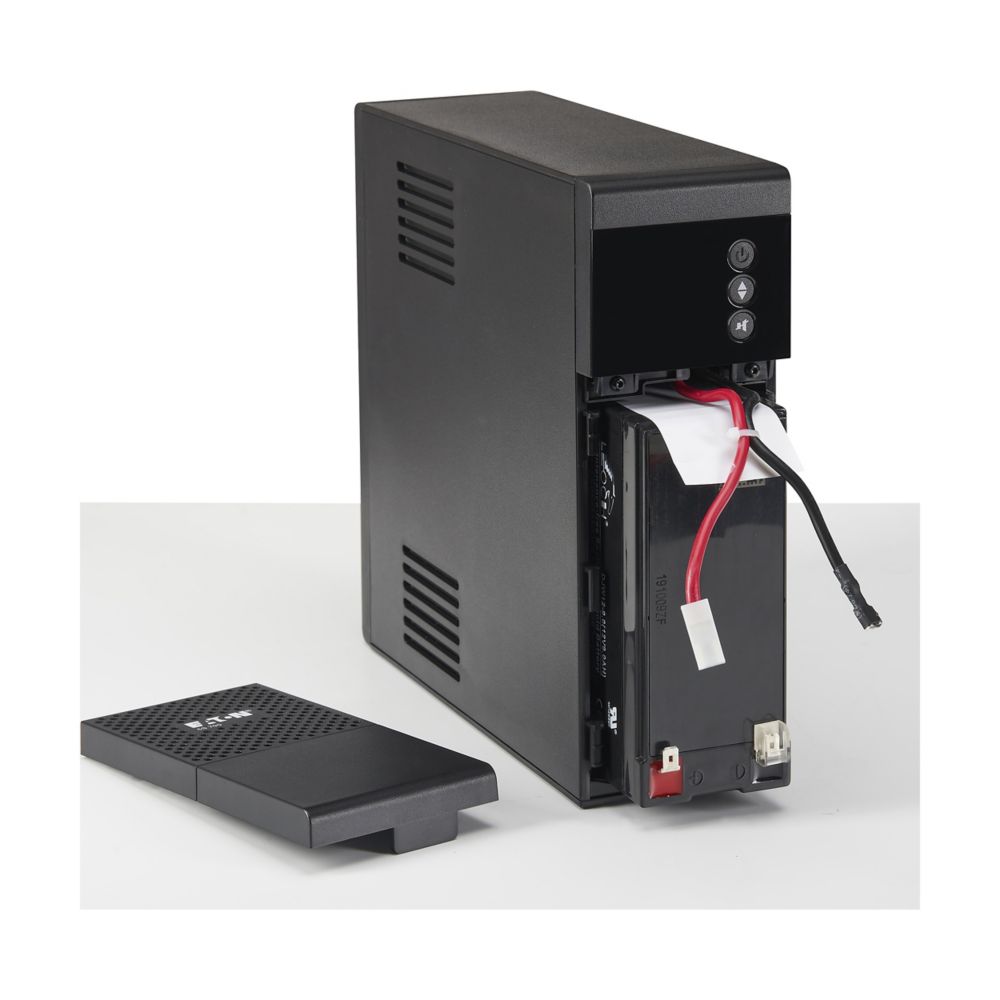

| Battery type | Sealed, lead-acid |

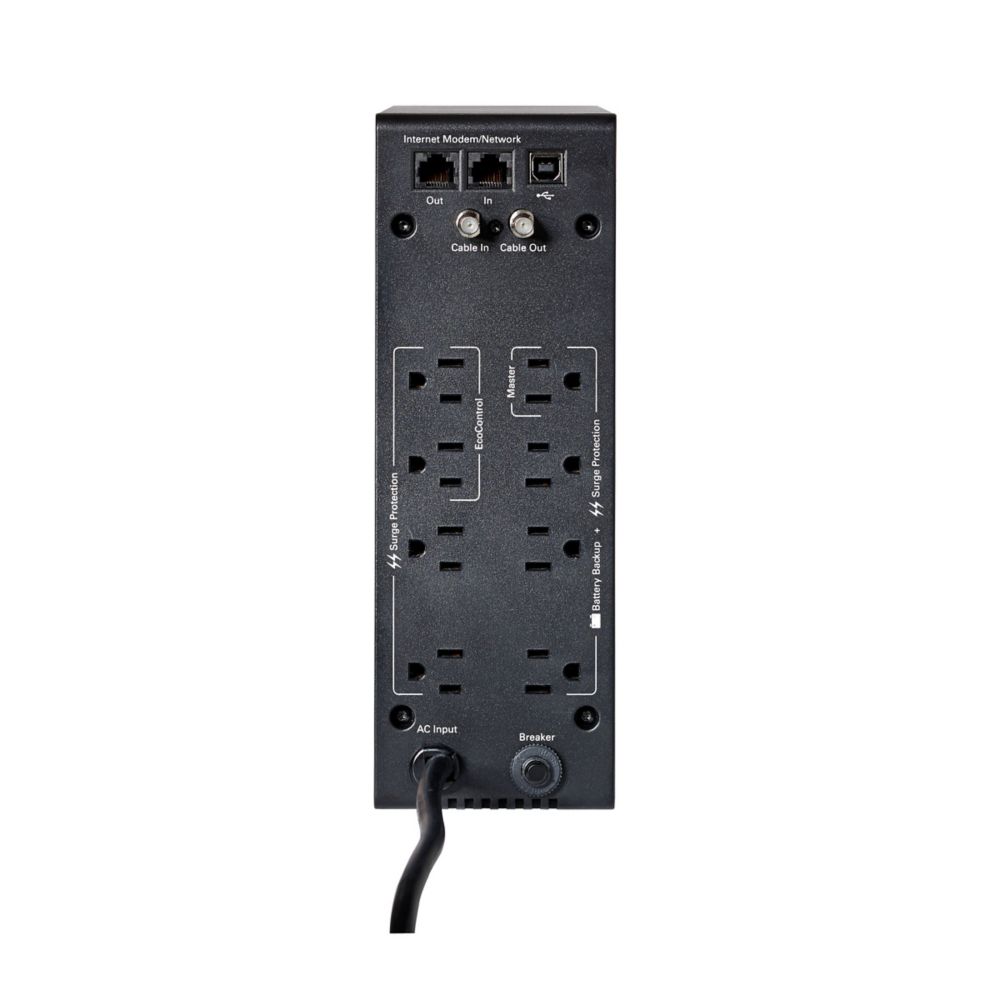

| Receptacle | (8) 5-15R |
| VA rating | 700 VA |
| Wattage | 525 W |
| Output nominal voltage | 100/120/127V |
| Topology | Line-interactive |
Electrical input
| Input connection | 5-15P |
| Input nominal voltage | 120V |
| Input cord length | 6 ft |
| Input voltage range | 93-138 Vac |
| Input frequency range | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) |
| Communication | USB HID port as standard, 6-ft USB cable included |
| Software compatibility | Eaton UPS Companion software |
Environmental
| Noise level | <25 dB at 1 meter |
| Temperature range | 0° to 35°C (32° to 95°F) |
| Relative humidity | 0-93% non-condensing |
Additional specifications
| Construction type | Free standing model |
| Package contents | UPS, USB cable, User manual, Important safety instructions, & Limited warranty |
| Efficiency | 95% |
| Surge protection | Yes |
