$468.99 Sale Save

Only 0 left in stock

Eaton 5SC 5SC1500 1440VA / 1080W 120V Line-interactive Tower UPS 3 Year Warranty

General
Topology Line Interactive
Configuration Tower
Catalog Number 5SC1500
Color Black
Rating (VA/Watts) 1500/1080

Dimensions (H x W x D, inches) 8.2 x 5.9 x 16.1
Dimensions (H x W x D, mm) 209 x 150 x 410
Weight (kg) 15.4
Weight (lbs) 34.0
Warranty 3-Year warranty covering UPS and battery with a full UPS service plan and battery replacement after online registation.

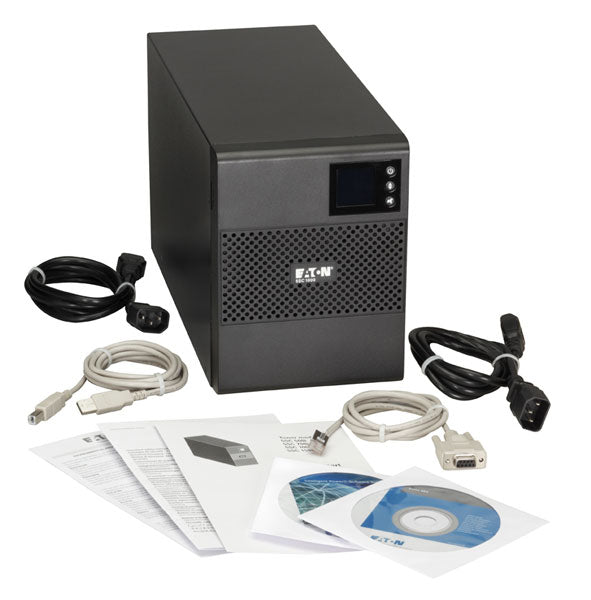

Contents
(Ships with the following items)
5SC UPS
User manual CD
Eaton Intelligent Power Manager Software CD
USB cable
Serial Cable (RJ45 to DB9)
Important Safety Instructions
Limited Warranty Details
Efficiency Up to 94%

Electrical Input
Connection
(1) NEMA 5-15P

Input Cord 6 feet (1.8 meters)
Input Voltage Range 96 - 144 Vac
Nominal Voltage 120Vac
Frequency 50/60 Hz
Frequency Range 60 Hz: 55–65 Hz
50 Hz: 45–55 Hz

Electrical Output
Nominal Voltage 120V Default (100/110)

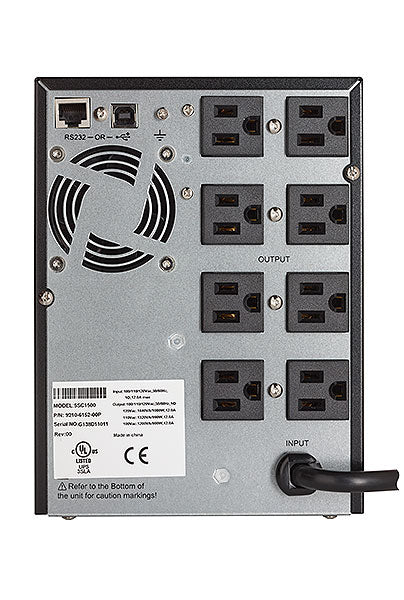

Output Receptacles
(8) NEMA 5-15R

Efficiency (Normal Mode) Up to 94%
​
Communications
User Interface Graphical display. UPS status in a single view.
LEDs UPS on LED
Communication Ports RS-232 (RJ45) port; USB port as standard (HID). 6-foot RS-232 and USB cables included
Power Management Software Eaton Intelligent Power Software Suite CD (included)

Environmental & Standards
RoHS Compliance Yes
Audible Noise <55 dB at 1 meter
Operating Temperature 0 to 35°C (32°F to 90°F)
Safety markings CE/cULus/NOM
EMC Markings IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Storage Temperature 0 to 40°C (32°F to 104°F)
Relative Humidity 0–90% non-condensing
