Eaton 5SC 5SC500 500VA / 350W 120V Line-interactive Tower UPS
$239.90
Eaton 5SC 5SC500 500VA / 350W 120V Line-interactive Tower UPS 3 Year Warranty
| General | |
| Topology | Line Interactive |
| Configuration | Tower |
| Catalog Number | 5SC500 |
| Color | Black |
| Rating (VA/Watts) | 500/350 |
| Dimensions (H x W x D, inches) | 8.2 x 5.9 x 9.5 |
| Dimensions (H x W x D, mm) | 209 x 150 x 240 |
| Weight (kg) | 6.9 |
| Weight (lbs) | 15.2 |
| Warranty | 3-Year warranty covering UPS and battery with a full UPS service plan and battery replacement after online registation. |

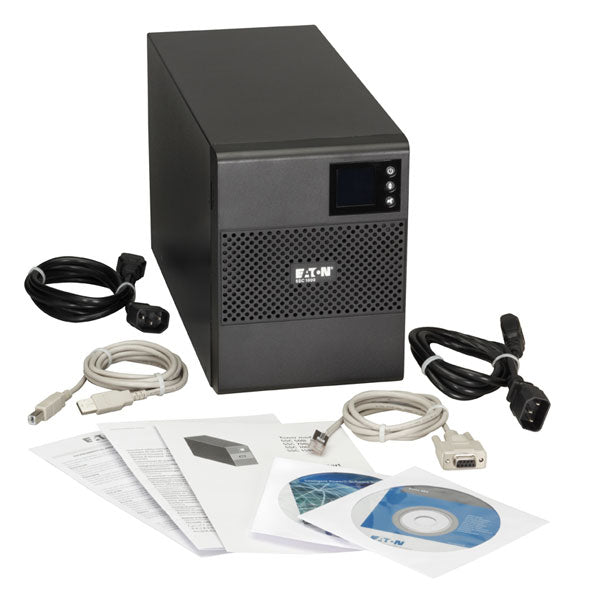

| Contents (Ships with the following items) |
5SC UPS User manual CD Eaton Intelligent Power Manager Software CD USB cable Serial Cable (RJ45 to DB9) Important Safety Instructions Limited Warranty Details |
| Efficiency | Up to 94% |
| Electrical Input | |
| Connection |
(1) NEMA 5-15P
|
| Input Cord | 6 feet (1.8 meters) |
| Input Voltage Range | 96 - 144 Vac |
| Nominal Voltage | 120Vac |
| Frequency | 50/60 Hz |
| Frequency Range | 60 Hz: 55–65 Hz 50 Hz: 45–55 Hz |
| Electrical Output | |
| Nominal Voltage | 120V Default (100/110) |
| Output Receptacles |
(4) NEMA 5-15R
|
| Efficiency (Normal Mode) | Up to 94% |
| Communications | |
| User Interface | Graphical display. UPS status in a single view. |
| LEDs | UPS on LED |
| Communication Ports | RS-232 (RJ45) port; USB port as standard (HID). 6-foot RS-232 and USB cables included |
| Power Management Software | Eaton Intelligent Power Software Suite CD (included) |
| Environmental & Standards | |
| RoHS Compliance | Yes |
| Audible Noise | <55 dB at 1 meter |
| Operating Temperature | 0 to 35°C (32°F to 90°F) |
| Safety markings | CE/cULus/NOM |
| EMC Markings | IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A |
| Storage Temperature | 0 to 40°C (32°F to 104°F) |
| Relative Humidity | 0–90% non-condensing |
