Liebert NX 20kVA / 16kW 3-Phase UPS Battery Backup System (No Batteries)

$3,189.90
Adding to Cart Added to Cart

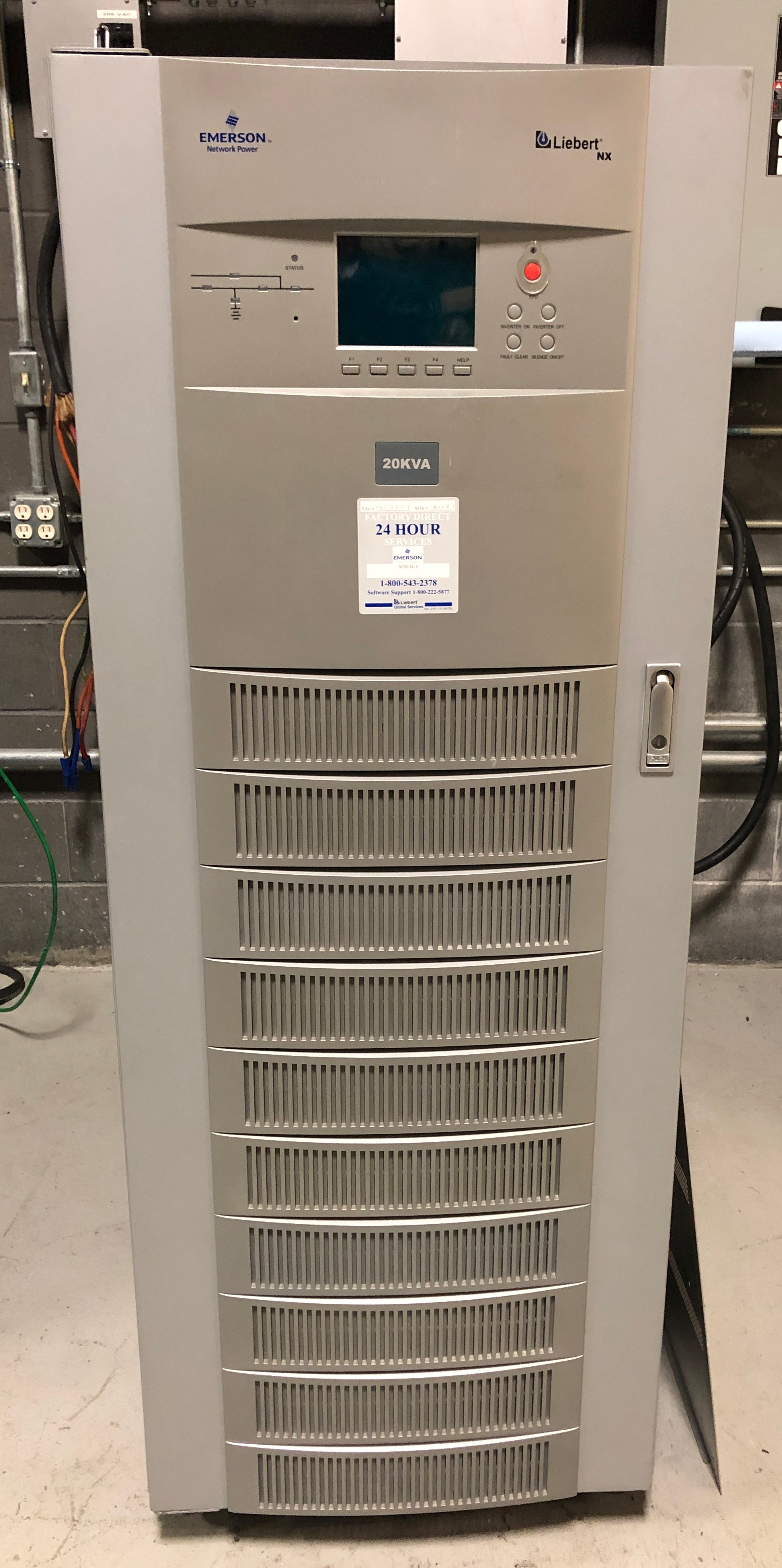

Preowned Liebert NX 20kVA / 17.8kW 3-Phase UPS Battery Backup System (No Batteries)

Liebert NXb 20kVA is a mid-sized, three-phase uninterruptible power supply (UPS) system that delivers complete, centralized data center power protection. Designed to meet the high availability power needs of a wide variety of IT applications and equipment, the UPS combines compact size, advanced operating features and low cost of ownership.



Module Input: 3-Phase 3+N+G
VAC: 208/120
Amps: 56A
Hz: 60
Input kVA: 20kVA
Input KW: 16kW

Short Circuit Current Rating: 35KA Min 4% Impedance from a 65kVA Source
DE Input in DTY: 3+G
Volts: 331-240
Amps: 73A
MAX@ 240VDC

Output: 3+N+G
VAC: 208/120
Amps: 56A
Hz: 60
Output kVA: 20kVA
Output KW: 16kW

Weight: 1400lbs

Model NXb 20



NOTES:  Due to multiple units being available - actual system, serial number and data tag of unit purchased may be different than pictured.  System may show minor signs of wear consistent with previous installation.  Wiring and startup of system by trained/certified professional required.
