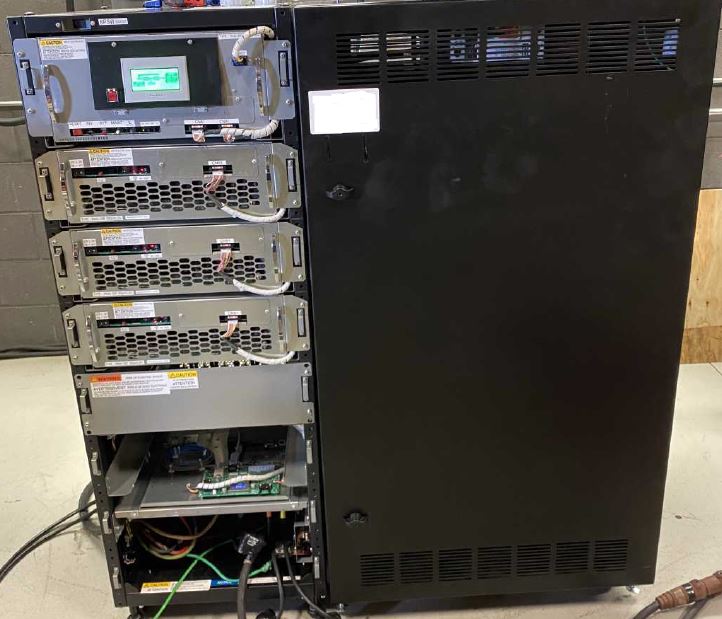

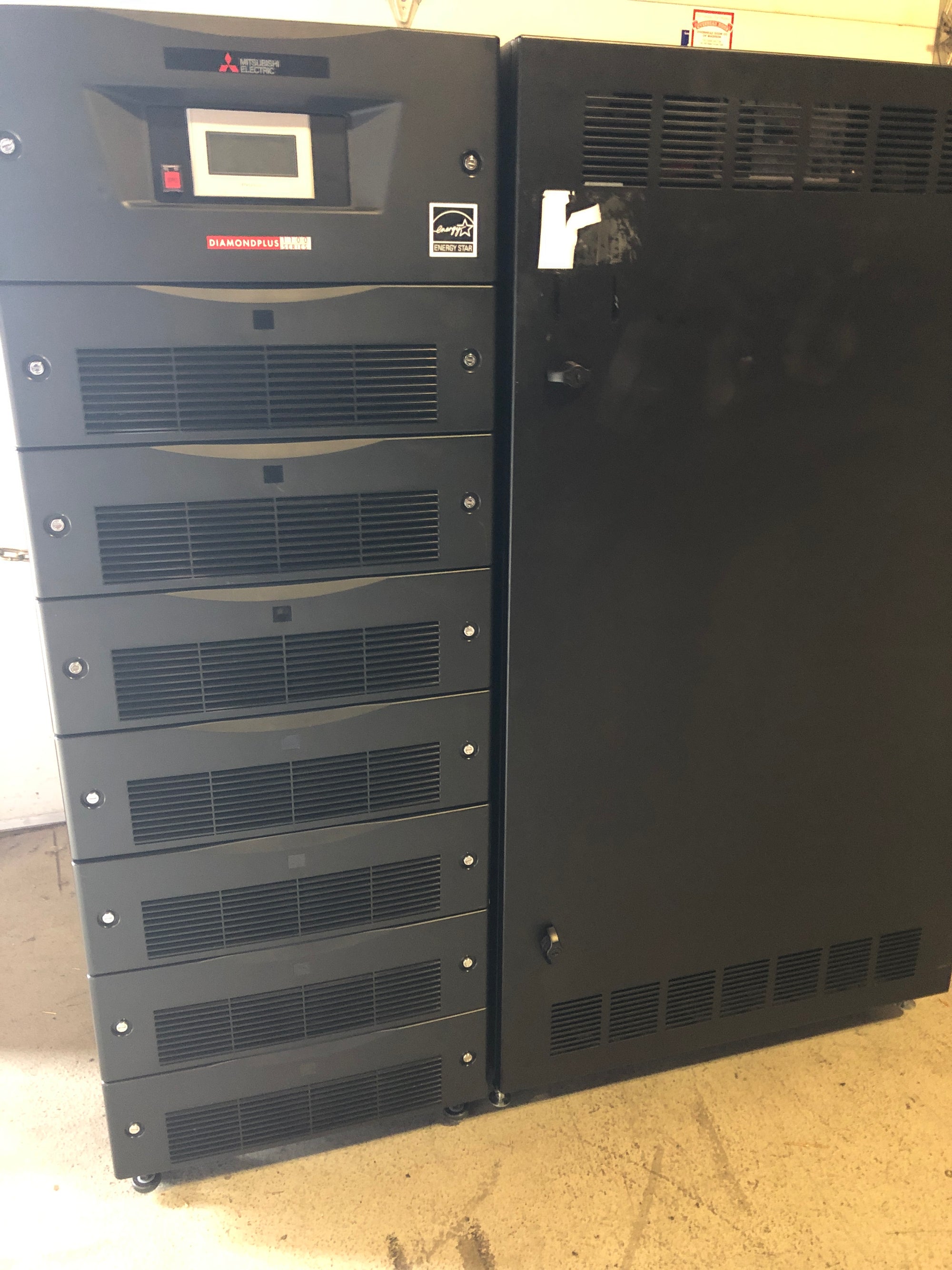

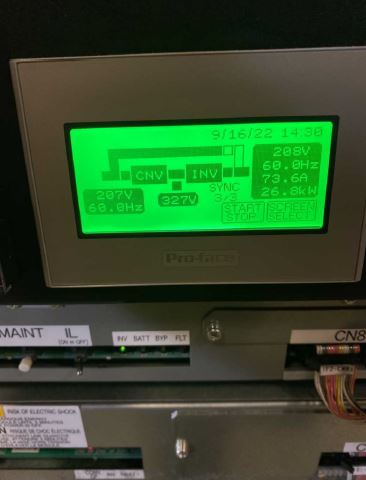

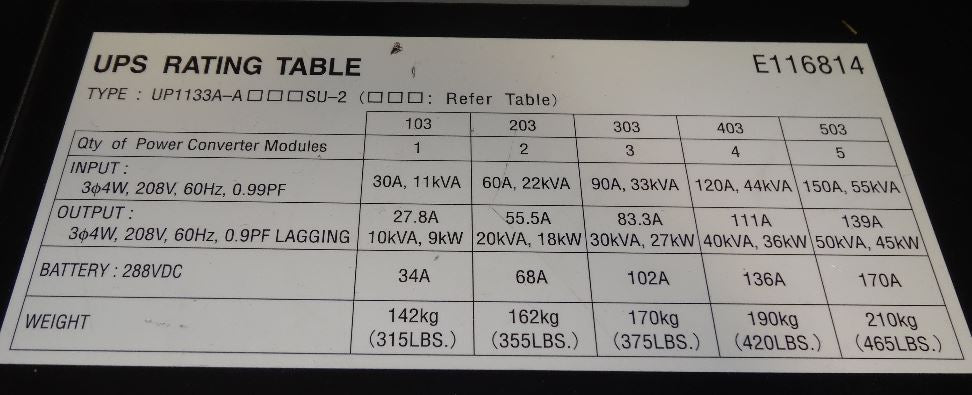

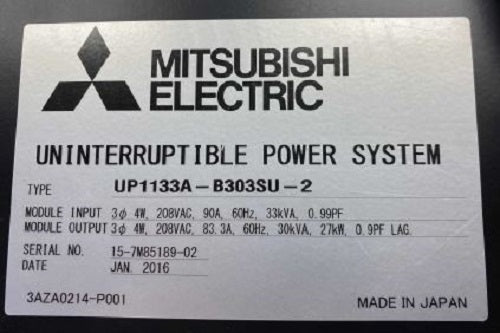

Mitsubishi Diamond Plus 1100 Series 20kVA 208VAC 3Phase UPS System

• Configuration:  3-phase, 4-wire, plus ground
• Voltage: 208 V +15% ~ -30%
• Frequency: 60 Hz +/- 10%
• Reflected Current THD: 4% typical at 100% load; 7% typical at 50% load

• Configuration 3-phase, 4-wire
• Voltage 120/208 V
• Voltage Stability +/-1%
• Frequency 60 Hz
• Frequency Stability +/-0.01% in free running mode
• Power Factor 0.9 nominal
• Power Factor range 0.9 ~ 1.0 lagging (within output kW rating)

• Voltage THD 2% typical THD at 100% linear load 5% typical THD at 100% non-linear load

• Transient Response +/-3% typical at 100% load step +/-1% typical at loss/return of AC power +/-5% typical at load transfer to/from static bypass

• Transient Recovery 16.7 ms

• Voltage Unbalance 2% typical at 100% unbalanced load
• Phase Displacement 1deg. typical at 100% load
• Inverter Overload 125% for 60 seconds, 150% for 30 seconds
• System Overload 1000% for 1 cycle (with bypass available)
• Crest Factor Capabilities 2.5 : 1 E

NOTES:

System retired from functional setting and professionally re-certified.

System may show minor signs or wear consistent with previous installation.

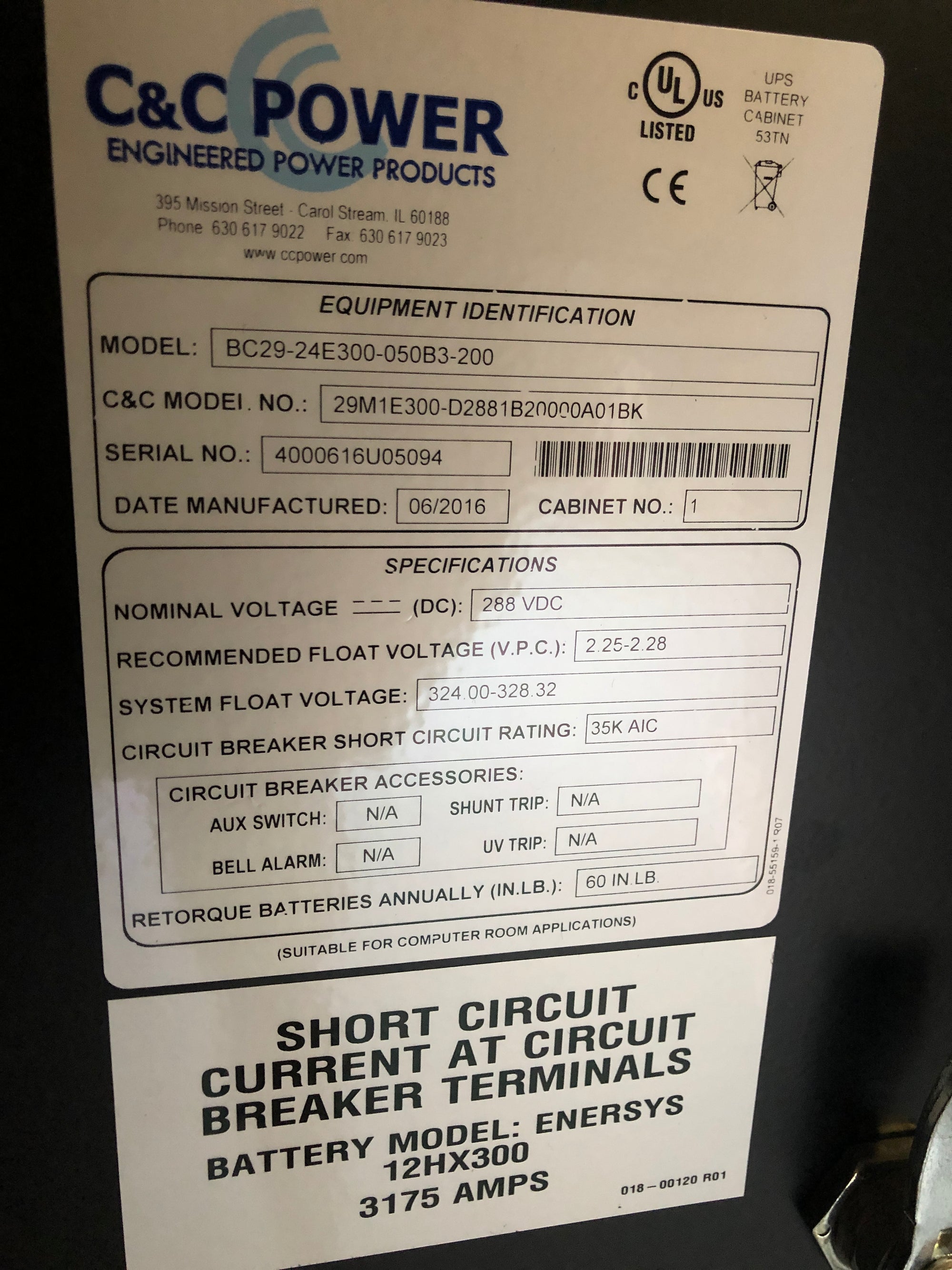

Please allow time for NEW batteries to be installed

Wiring and startup of system by trained/certified professional required.
