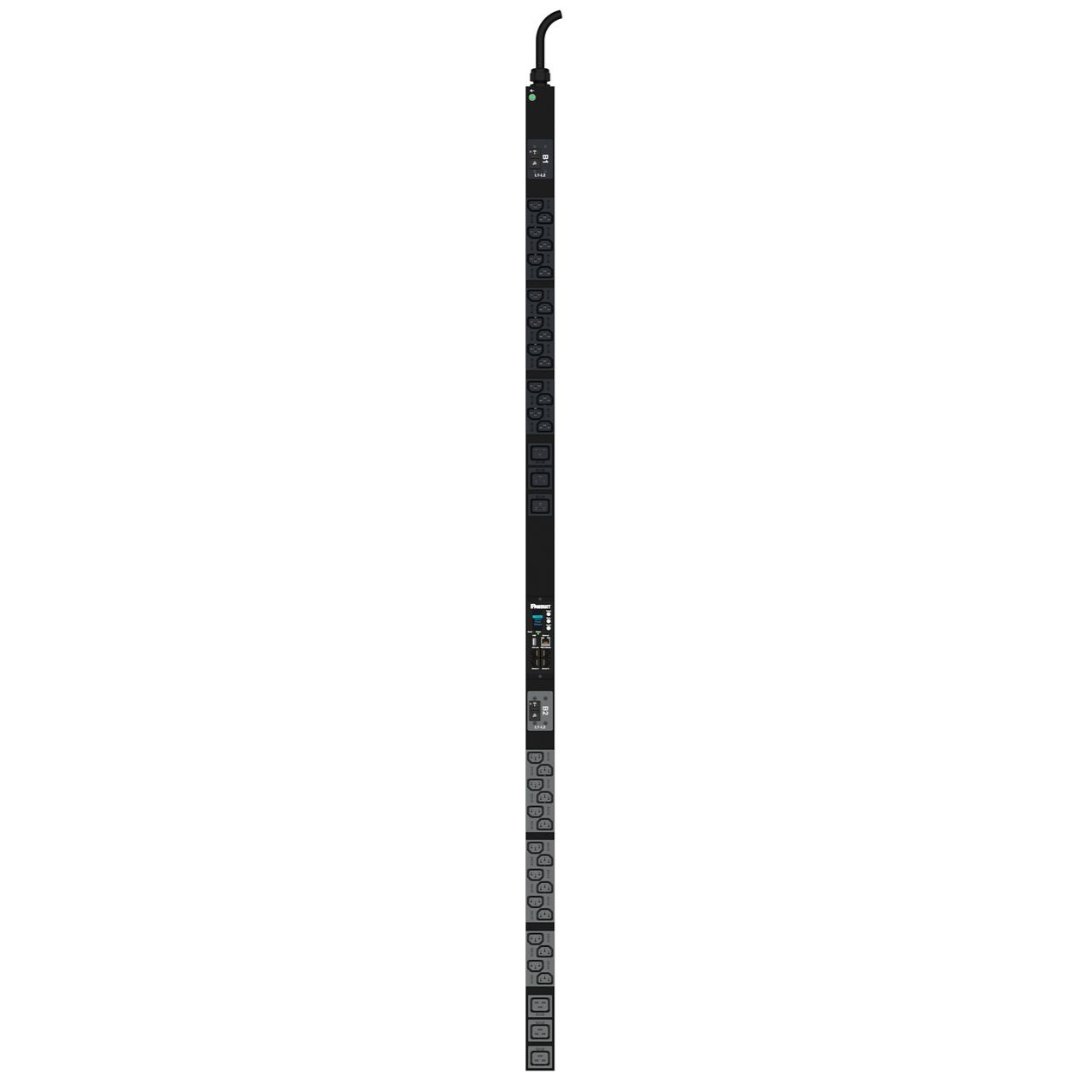

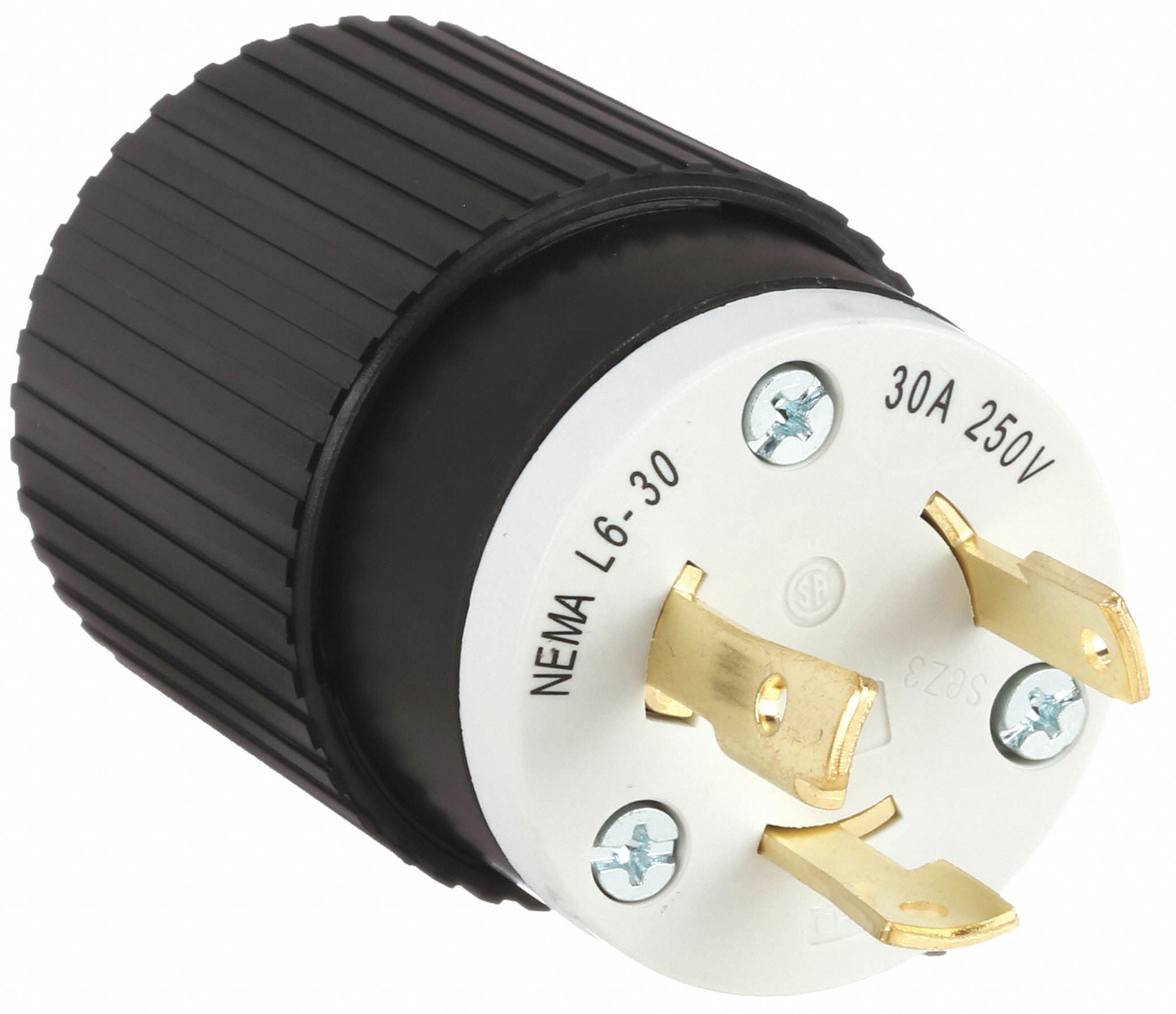

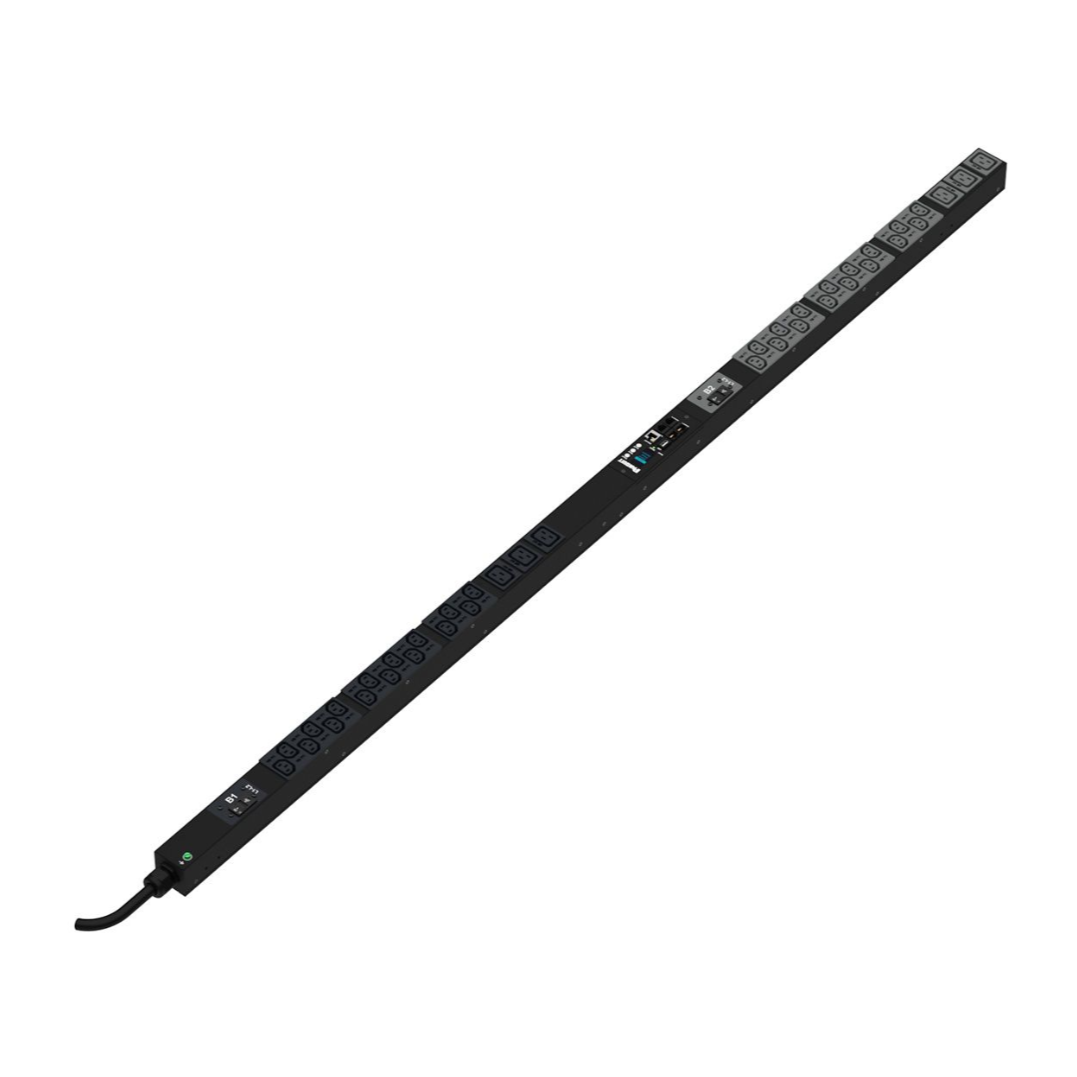

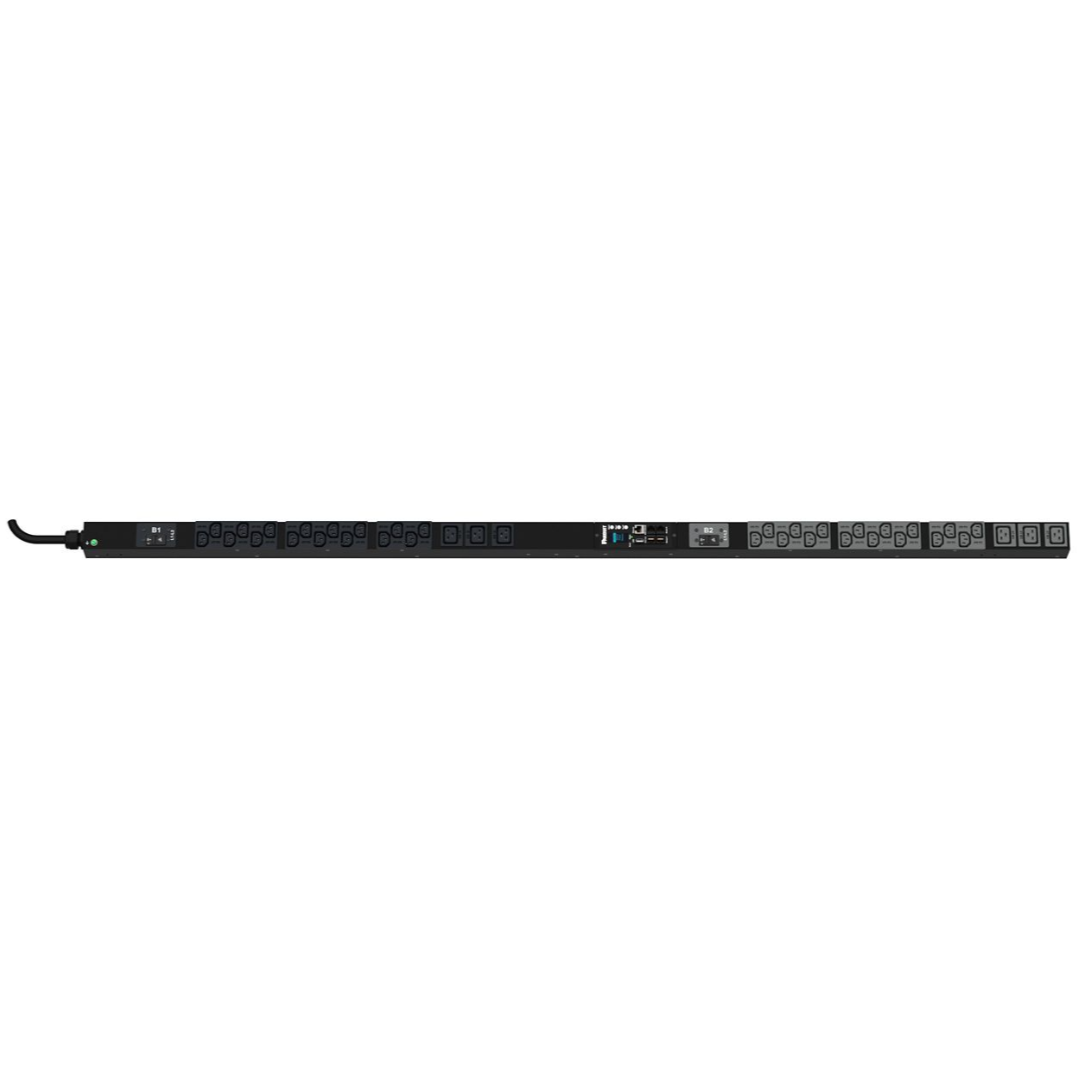

Panduit G5 Intelligent MI Series PDU, 0U, AC 100-240V, NEMA L6-30P (P38D25M)

The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy monitoring device. These Panduit iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit’s G5 iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.

Panduit SmartZone G5 iPDU Highlights:

• Cable Retention: Innovative cable tie accepting outlets allow for secure cord retention (C13 & C19 only) using a cable tie for added safety and security. (Panduit part number: PLT2I-C0)

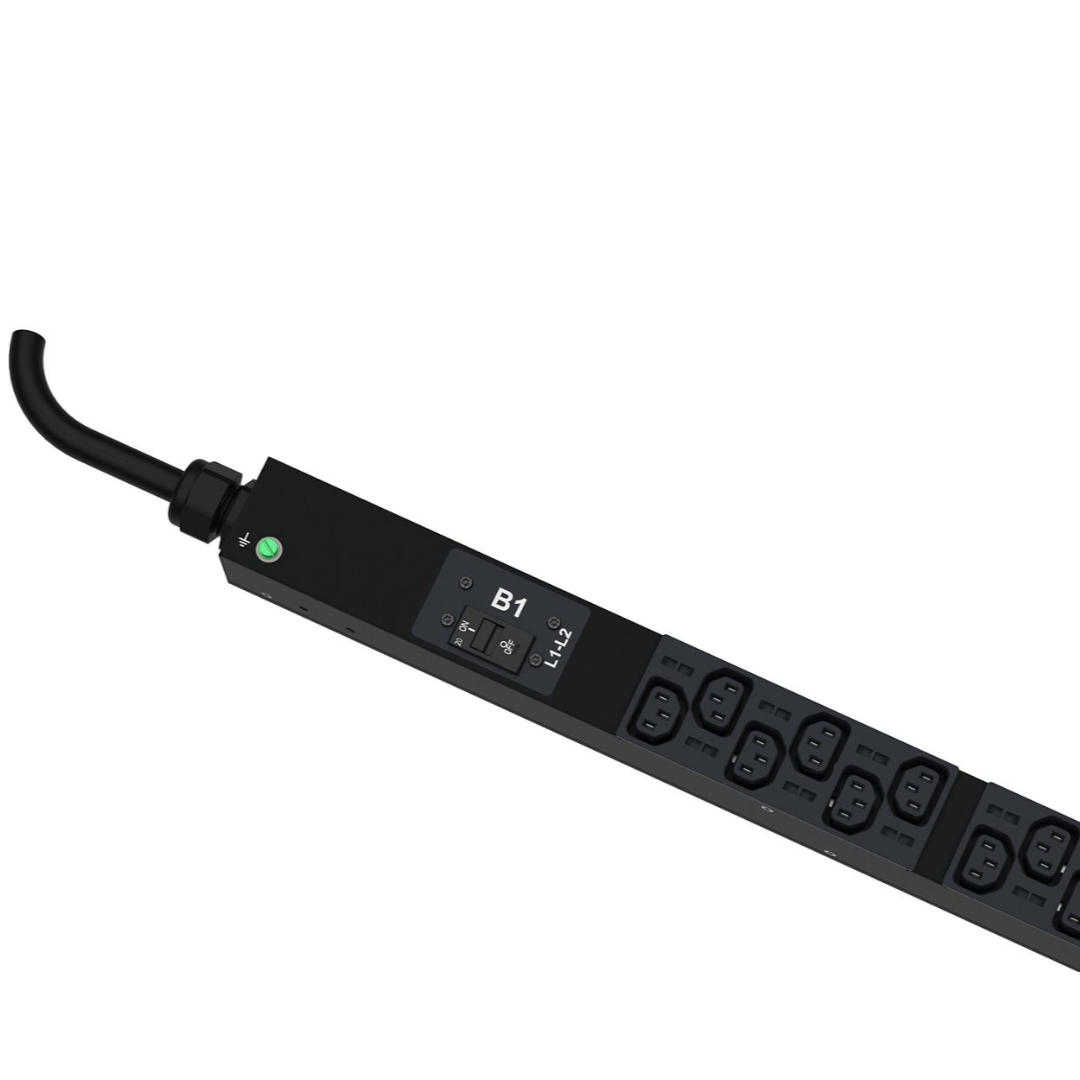

• Circuit Breakers: Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions*
• Color Coded Circuits*: Easily identify phase to outlet banks to aid in fault isolation or load balancing External Chassis
• Ground: Meets NEC requirements and installation guidelines for IT equipment
• Load Balancing: Monitored through visual display on oLED (for 3 phase units only)
• Multiple Input Plug Options: A full breadth offering to seamlessly interoperate with existing building power wiring schemes
• Multiple Mounting Options: Enables simple out of the box commissioning and flexibility with Panduit cabinets and industry standard mounting features enabling installation into third party cabinets
• Mounting Buttons: Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units
• Supported Metering: Frequency, VA, PF, plus aggregate and per phase Amperage, Voltage, Wattage, and Kilowatts

Specifications:
