Tripp-lite SU20K3/3PM 3-Phase 120/208V Power Module UPS & Battery Cabinets

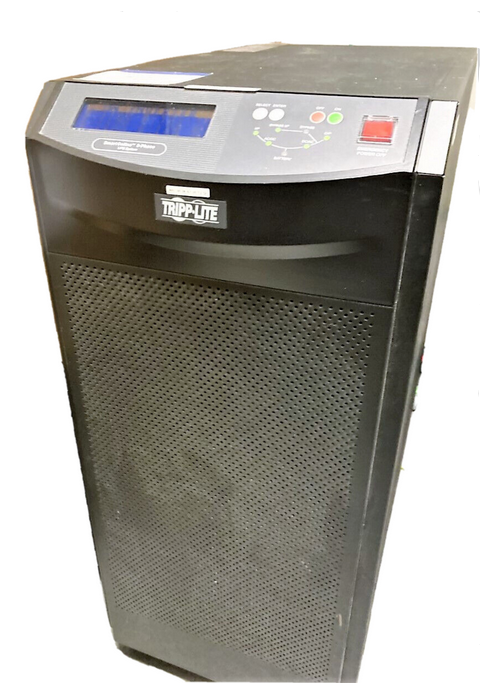

Tripp Lite 20kVA 3-Phase Smart Online Tower UPS. The SU20K3/3 Smart Online 3-Phase Intelligent, True On-Line UPS System providing mission-critical equipment with the highest level of power protection available.

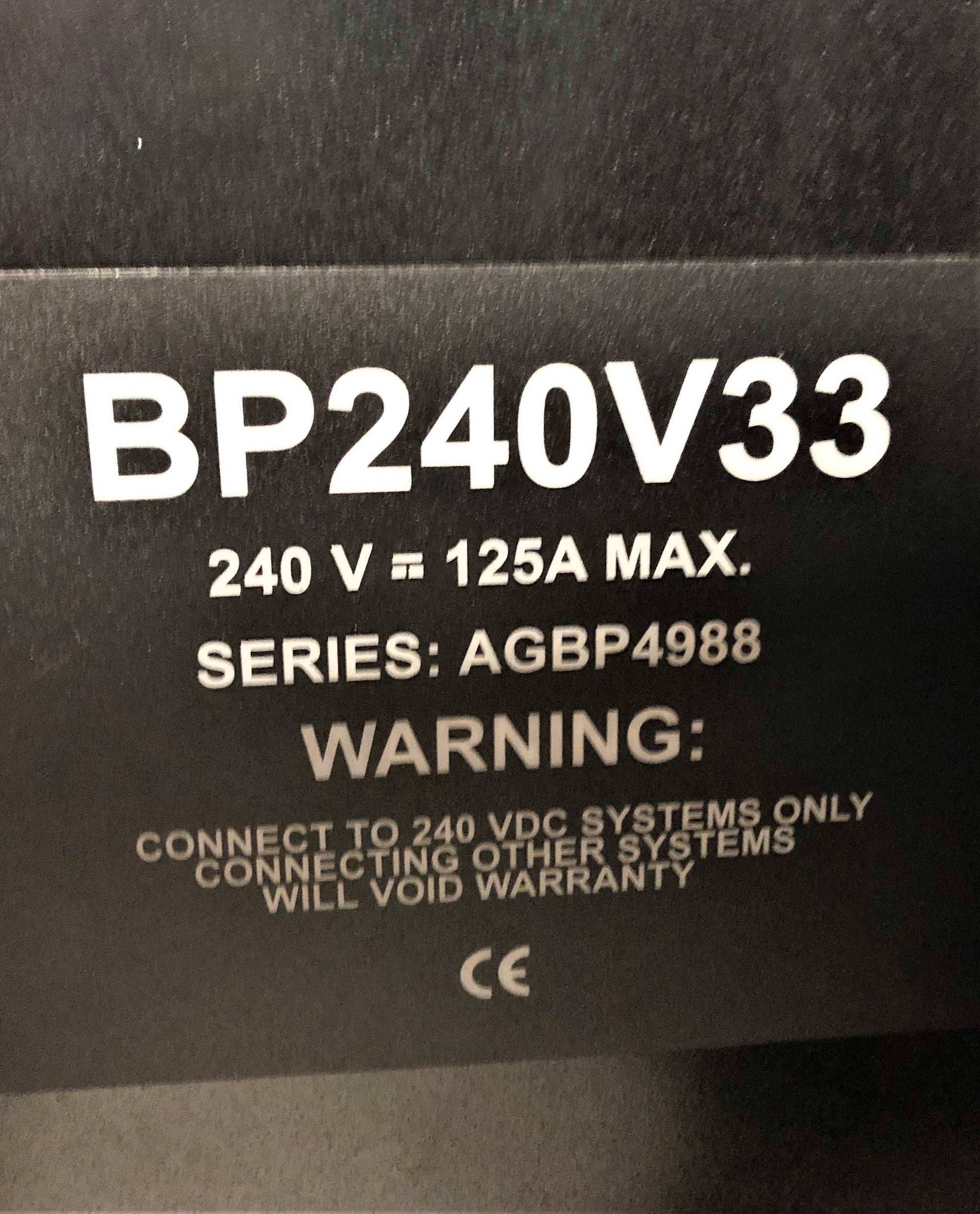

Configuration includes UPS and (2) BP240V33 battery Cabinets (no batteries).
Specifications:
Frequency Compatibility: 50/60Hz
Output Nominal Voltage: 120/208V
DC System Voltage (VDC): 240
Recommended Electrical Service: 120/208V AC (3-Phase, 4 Wire, wye)
Maximum Input Amps: 60
Input Connection Type: Hardwire
Voltage Compatibility (VAC): 120; 208; 3-Phase

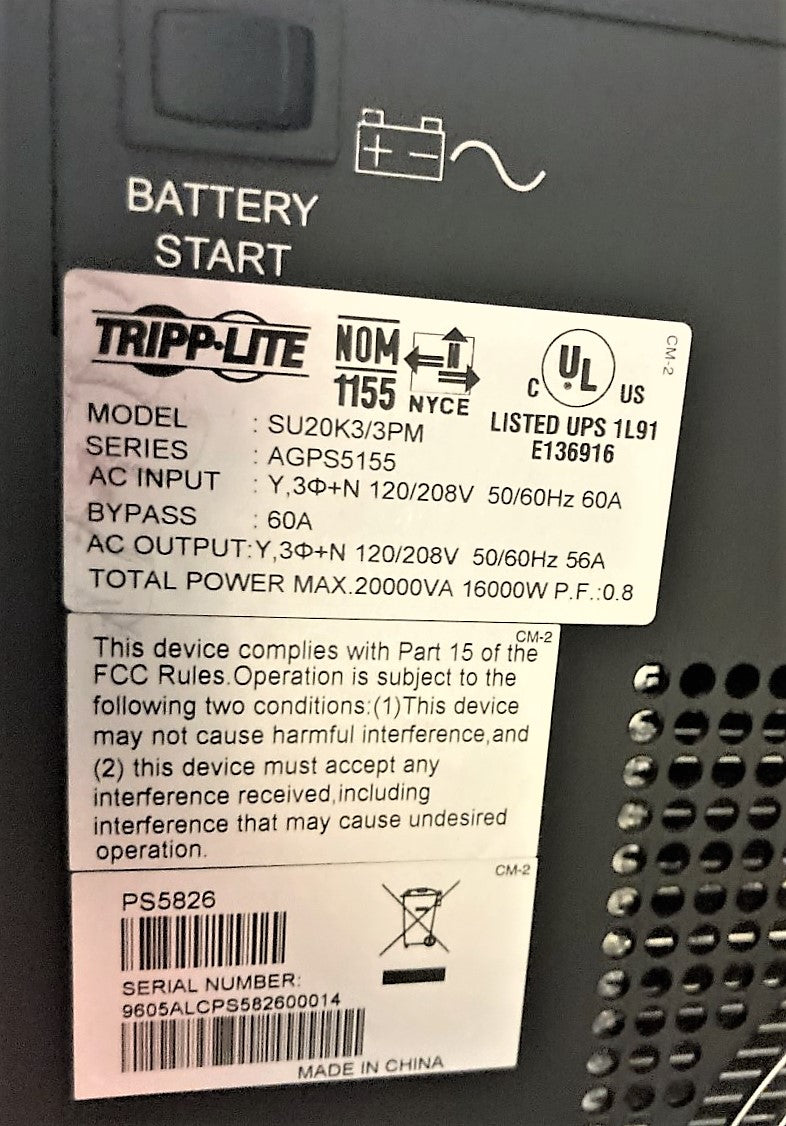

Model: SU20K3/3PM
NOTES:
System retired from functional setting and professional re-certified. May may show minor signs of wear consistent with previous installation.
Batteries not included with system but maybe be provided for additional fee.
Wiring and startup of system by trained/certified professional required.
