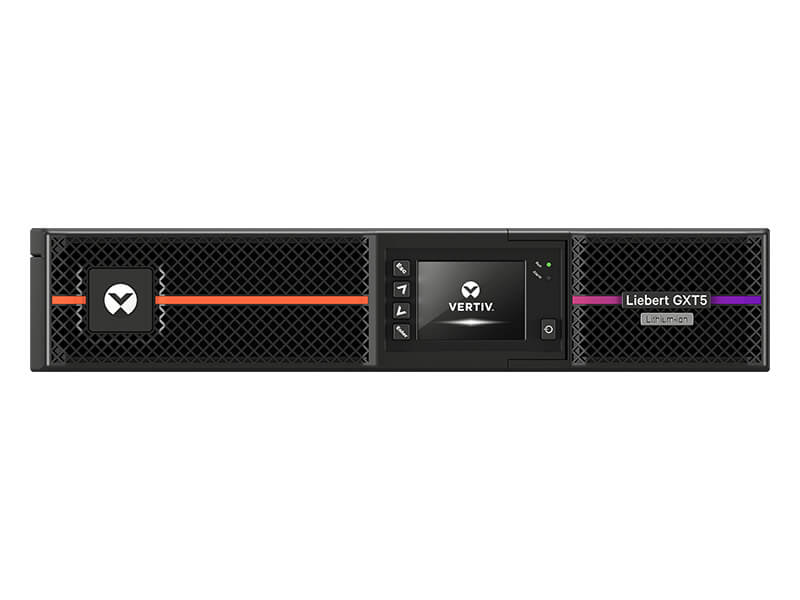

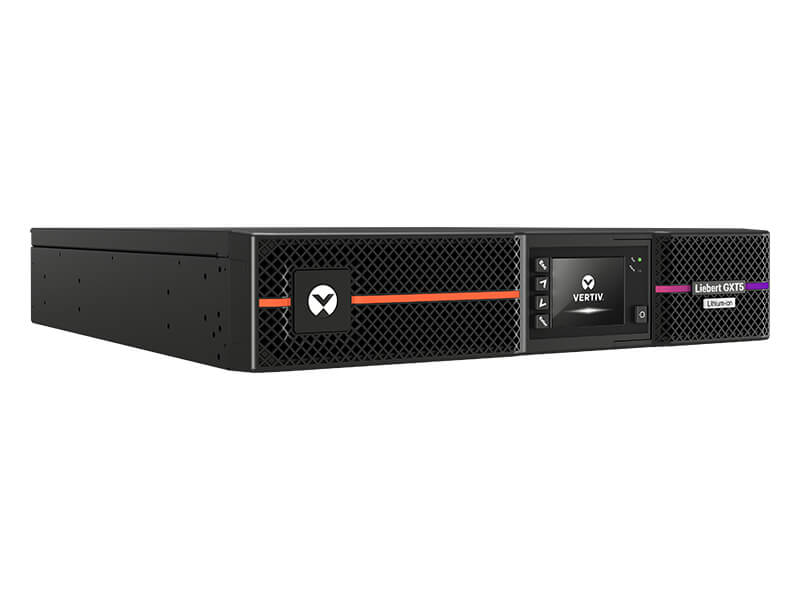

Vertiv GXT5 Lithium-Ion Online UPS 3000VA/2700W 120V Tower/Rack UPS with Network Card (GXT5LI-3000LVRT2UXLN)
The Vertiv™ Liebert® GXT5 Lithium-Ion double-conversion online UPS provides the highest level of power conditioning and power protection for critical business IT systems such as network equipment and business servers. This ensures that your mission-critical systems and applications are protected in the event of any utility power problems such as power surges or a complete loss of power. The Liebert® GXT5 UPS protects against the widest range of power problems and seamlessly switches to battery backup if the quality of the input power is outside of acceptable operating levels.
HighLights;
- Lowest total cost of ownership over the lifetime of the UPS. The expected useful life of the Lithium-Ion batteries is up to 3 times that of VRLA batteries which translates into fewer battery replacements over the life of the UPS.
- Lithium-Ion battery technology delivers more runtime and faster recharge time, and offers better performance at higher temperatures and supports up to 10 times more discharge cycles compared to standard VRLA batteries.
- The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss.
- Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments.
- Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment.
- Standard 5-year warranty provides peace of mind your investment is protected.
SPECIFICATIONS
MODEL NUMBER | GXT5LI-3000LVRT2UXLN | |||||
Power rating | 3000VA (2700W) | |||||
Voltage nominal |
120VAC Default; 100/110/115/120V/125VAC (User-Configurable) |
|||||
Voltage range |
Nominal (Full Load): 102 - 150 VAC; Maximum: 60 - 150 VAC |
|||||
Frequency | 40- 70Hz | |||||
Voltage | 120VAC | |||||
Waveform | Pure sine wave | |||||
Transfer time (typical) | 0ms | |||||
Efficiency | Up to 92% in online mode; 98% in Active ECO Mode | |||||
Battery type | Lithium-Ion (LiFePO4) | |||||
External battery cabinet |
VEBCLI-48VRT1U | |||||
Typical recharge | 2 hrs to 90% | |||||
Dimensions (W x D x H) |
16.9 x 21.5 x 3.4 mm |
|||||
Weight | 48.5 lbs | |||||
Input plug | NEMA L5-30P | |||||

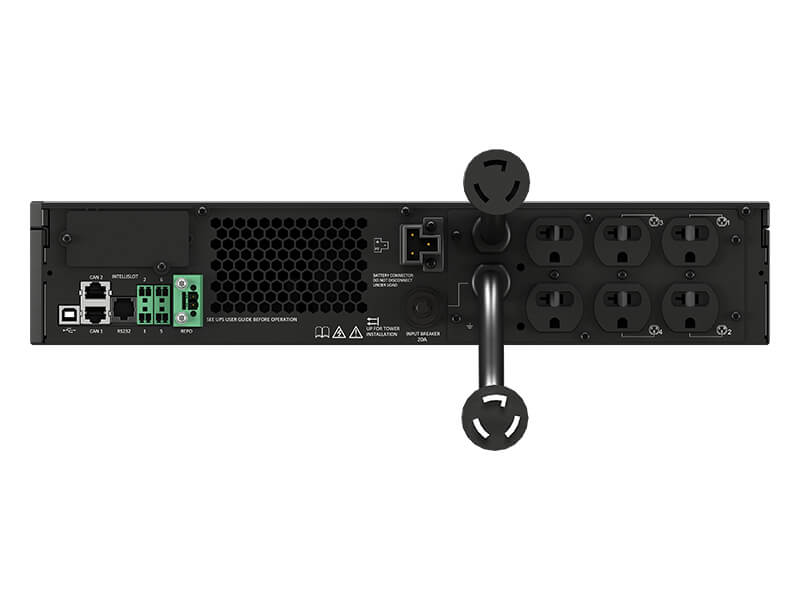

Receptacles |
(1) NEMA L5-30R, (6) NEMA 5-15/20R |
|||||
Operating temperature |
32°F to 104°F (0°C to 40°C) (10% Derating at 50°C) |
|||||
Audible noise | < 48 dB | |||||
Network Surge | IEC 61000-4-5, ANSI C62.41, Category B | |||||
Agency | UL 1778, UL 1973, UL 1642, Energy Star 2.0, RoHS, WEEE, REACH | |||||
Warranty | 5 years on UPS and Battery | |||||
Options | USB, RS232, Dry-Contact Terminal Block, Intellislot (for Management Cards) | |||||

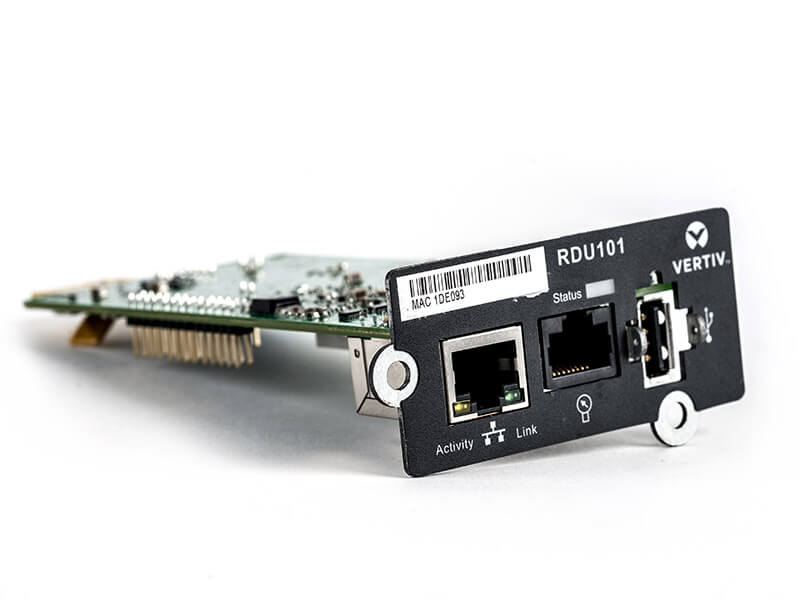

Management Card |
RDU101 |
|||||
Other | Color graphic LCD with gravity sensing orientation |
