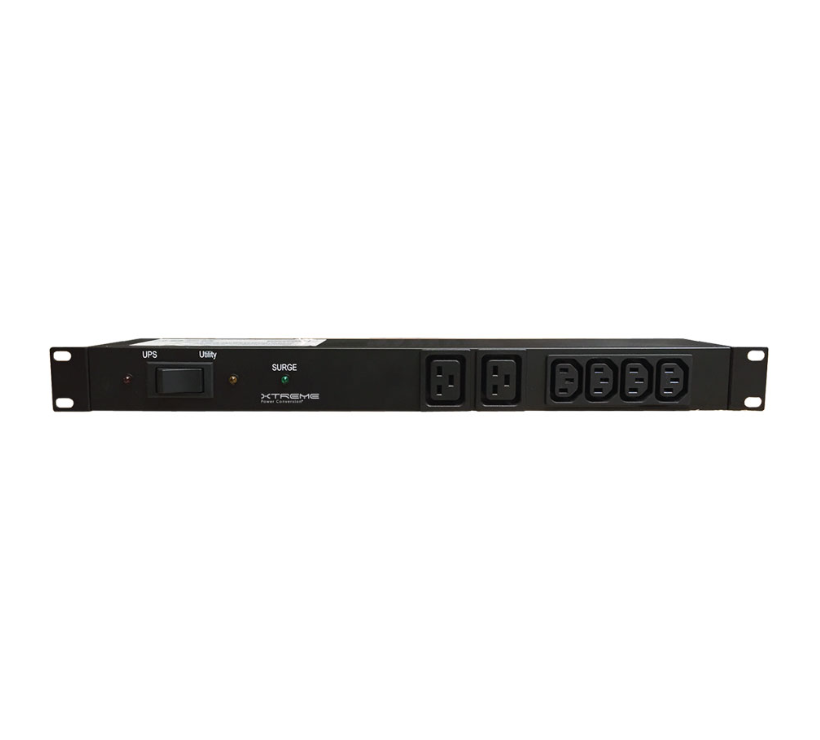

XPCC XBDM-1020HV Bypass Distribution Module 20A/230VAC (90000092)
The XBDM ensures continuous uptime for your critical electronics. This maintenance bypass module allows you to manually transfer critical loads from UPS power to utility power using a bypass switch, enabling UPS repair or replacement without power interruption to the load. Transferring back to protected UPS power is just as easy; simply return the bypass switch to the UPS position.

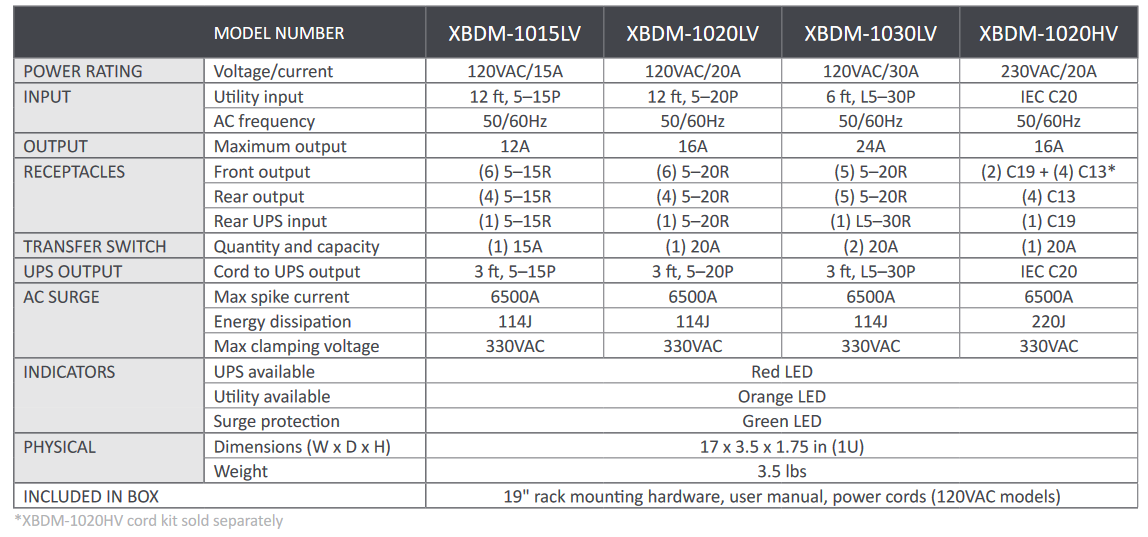

Product Snapshot
- Power Rating: 230VAC/20A
- Utility Input: IEC C20
- AC Frequency: 50/60Hz
- Maximum Output: 16A
- Front Output: (2) C19 + (4) C13*
- Rear Output: (4) C13
- Rear UPS Input: (1) C19
- Cord to UPS Output: IEC C20
- Dimensions: 17 x 3.5 x 1.75 in (1U)
- Weight: 3.5 lbs
