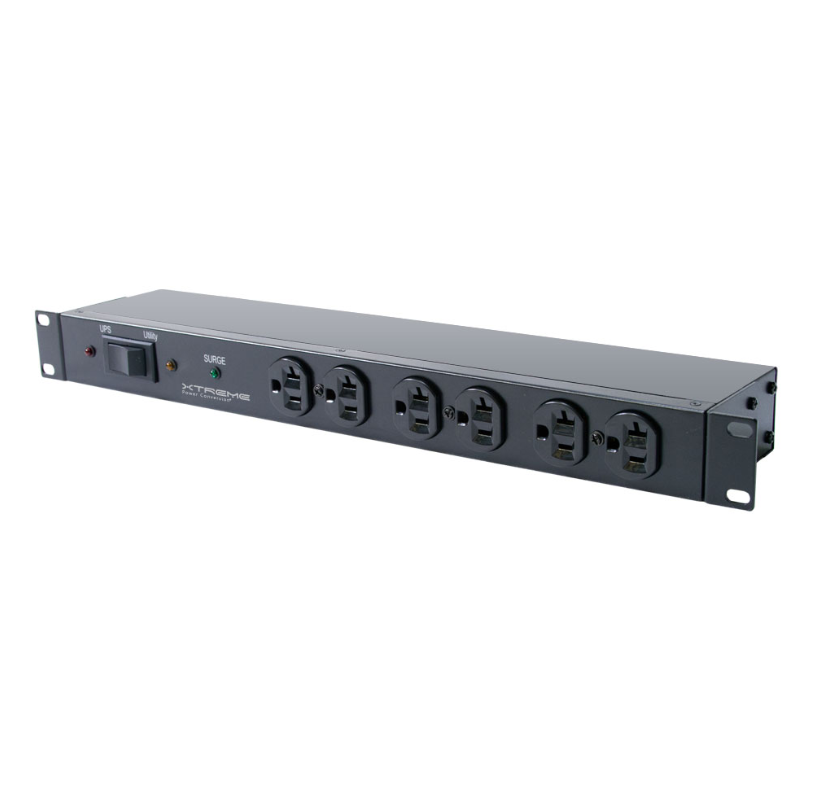

Xtreme Power Conversion XBDM-1020LV Bypass Distribution Module (90000091)
The XBDM ensures continuous uptime for your critical electronics. This maintenance bypass module allows you to manually transfer critical loads from UPS power to utility power using a bypass switch, enabling UPS repair or replacement without power interruption to the load. Transferring back to protected UPS power is just as easy; simply return the bypass switch to the UPS position.

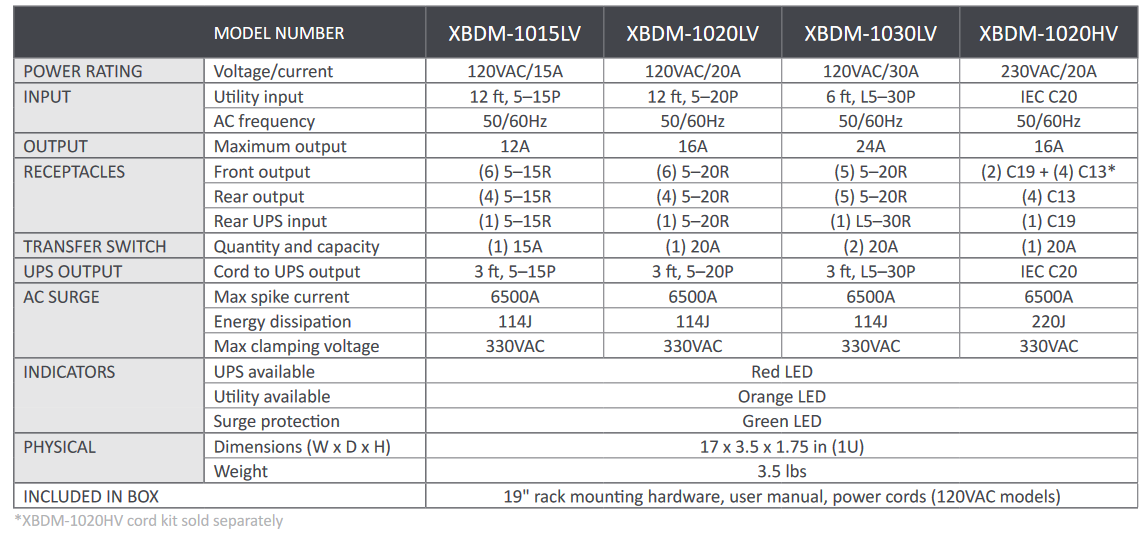

Product Snapshot:
- Power Rating: 120VAC/20A
- Utility Input: 12 ft, 5–20P
- AC Frequency: 50/60Hz
- Maximum Output: 16A
- Front Output: (6) 5–20R
- Rear Output: (4) 5–20R
- Rear UPS Input: (1) 5–20R
- Cord to UPS Output: 3 ft, 5–20P
- Dimensions: 17 x 3.5 x 1.75 in (1U)
- Weight: 3.5 lbs
