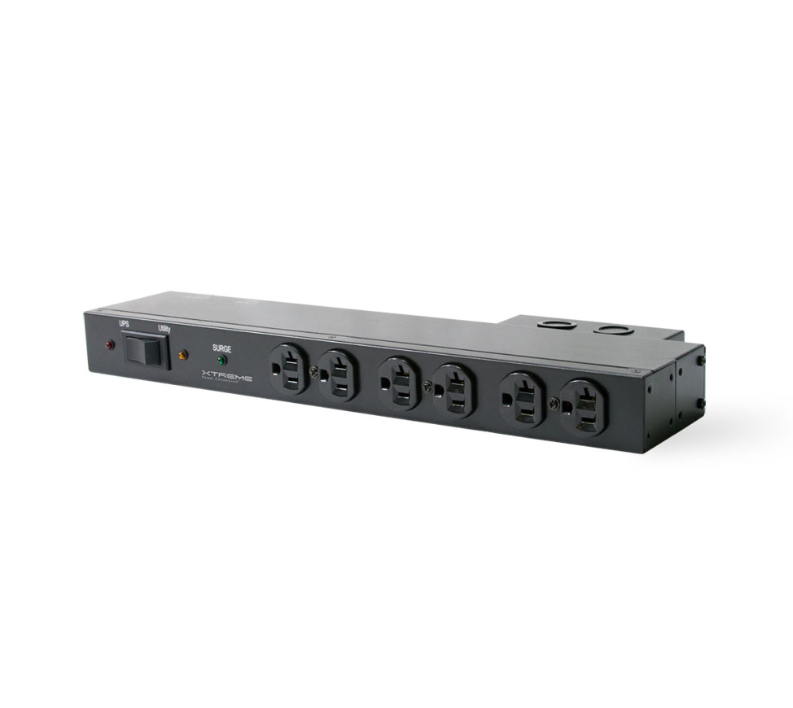

Xtreme Power Conversion XBDM-15RHW Bypass Distribution Module (90000088)

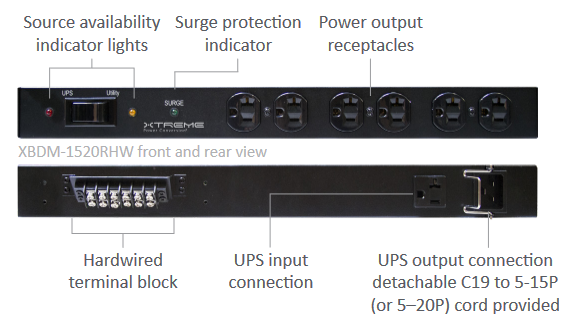

The XBDM HW ensures continuous uptime for your critical electronics. This maintenance bypass module allows you to manually transfer critical loads from UPS power to utility power using a bypass switch, enabling UPS repair or replacement without power interruption to the load. Transferring back to protected UPS power is just as easy; simply return the bypass switch to the UPS position.

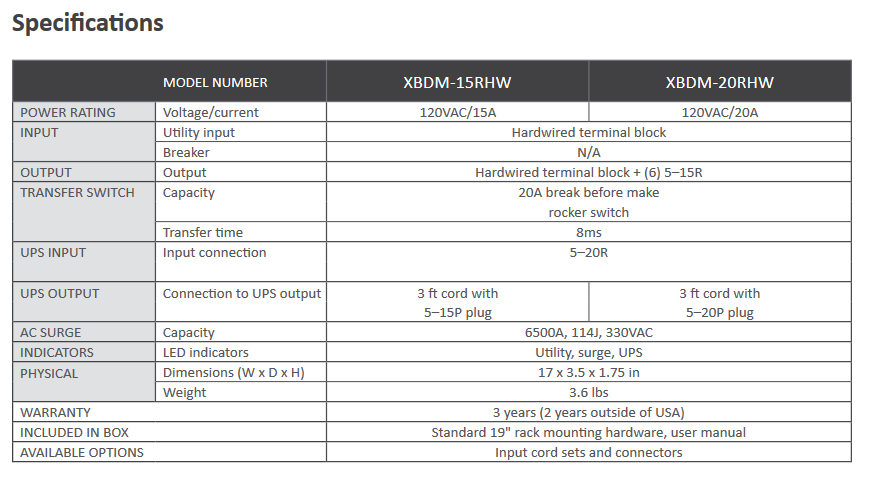

Product Snapshot:
- Voltage/current: 120VAC/15A
- Utility Input: Hardwired terminal block
- Breaker: N/A
- Output: Hardwired terminal block + (6) 5–15R
- Input Connection: 5–20R
- Connection to UPS Output: 3 ft cord with 5–15P plug
- Capacity: 6500A, 114J, 330VAC
- LED Indicators: Utility, surge, UPS
- Dimensions (W x D x H): 17 x 3.5 x 1.75 in
- Weight: 3.6 lbs
