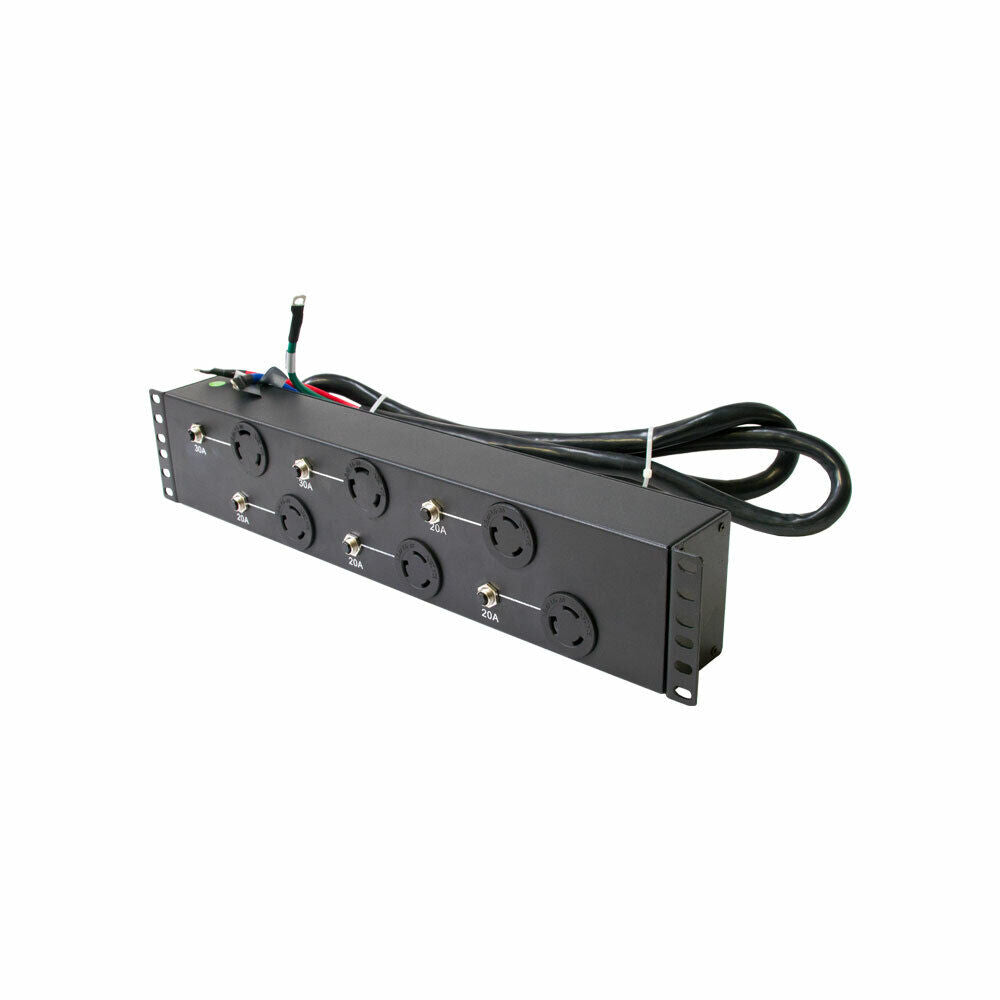

Xtreme Power Conversion XPD32 90000252 30A 240V 2U 19” Basic Rack PDU
Improve data center power distribution with the XPDU family, a series of power distribution units that combine the key features needed to manage high density equipment racks or wiring closets.
XPDUs deliver reliable power distribution to multiple units of connected equipment by adding up to 24 receptacles to your rack space. These PDUs compliment your current power source and are compatible with any manufacturer's UPS.
Highlights:
- Available 120V models: 15A, 20A
- Available 208/230V & 240/120V models: 30A, 50A
- Vertical and horizontal configurations
- 3 year full warranty (USA and Canada)

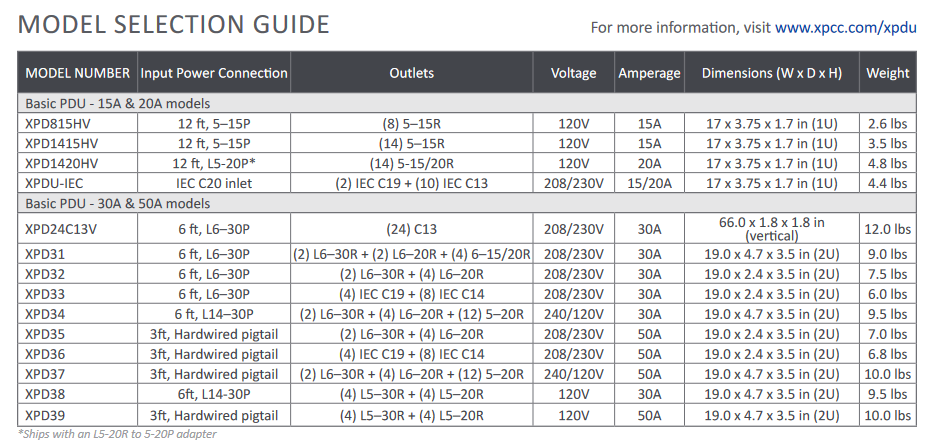

Specifications:
| Model number | XPD32 |
| Input connection | 6 ft, L6–30P |
| Outlets | (2) L6–30R + (4) L6–20R |
| Voltage | 208/230V |
| Amperage | 30A |
| Dimensions (WxDxH) | 19.0 x 2.4 x 3.5 in (2U) |
| Weight | 7.5 Lbs |
