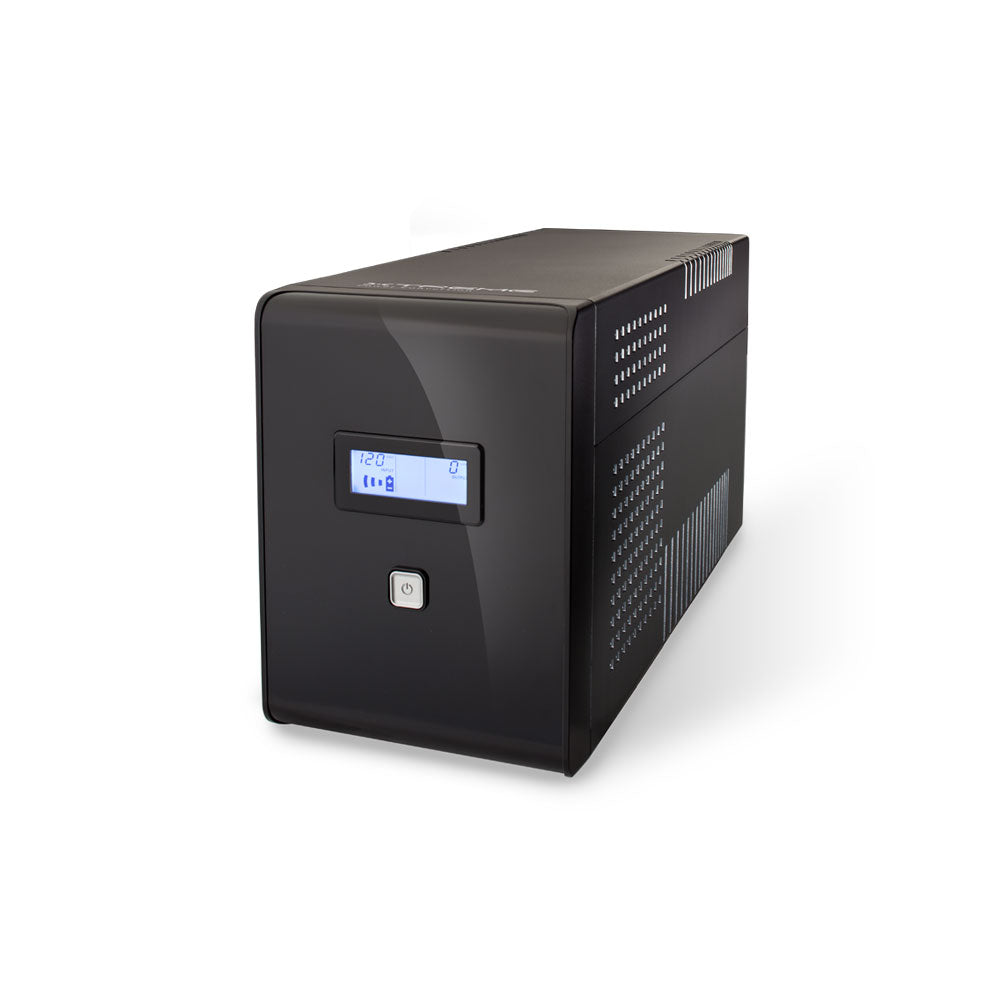

Xtreme Power Conversion S70-1000 1000VA/600W 120V Line Interactive Tower UPS
$219.00
Xtreme Power Conversion S70-1000 1000VA/600W 120V Line Interactive Tower UPS
Power quality disturbances including voltage fluctuations, over voltage, under voltage, and voltage blackouts occur unexpectedly. In the event of any of these common power problems, the S70 UPS activates to protect all connected critical loads—ranging from your computer to your business telephone system.
The S70 streamlines installation to just a few simple steps, allowing backup power protection right out of the box. The smart LCD screen offers real-time monitoring of UPS parameters while shutdown and monitoring software enables UPS and remote device control over your network.
Product Snapshot
- Available models: 500VA, 700VA, 1000VA, 1500VA, 2000VA
- Smart LCD display
- Auto restart
- Automatic voltage regulation (AVR)
- UL and cUL listed, RoHS compliant
- Primary applications: home or small office, desktop computers, routers, and switches
- 3 years electronics, 3 years battery warranty (USA and Canada)
| MODEL NUMBER | S70-500 | S70-700 | S70-1000 | S70-1500 | S70-2000 | |
|---|---|---|---|---|---|---|
| INPUT | Capacity | 500VA (300W) | 700VA (420W) | 1000VA (600W) | 1500VA (900W) | 2000VA (1200W) |
| Voltage | 120VAC | |||||
| Frequency | 60Hz | |||||
| OUTPUT | Voltage | 120VAC | ||||
| Waveform | Sine wave (normal), simulated sine wave (battery mode) | |||||
| Frequency | 60Hz ± 1Hz | |||||
| Transfer time | 4ms (typical) | |||||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | ||||
| Battery quantity and size | (1) 12V 7AH | (1) 12V 9AH | (2) 12V 7AH | (2) 12V 9AH | ||
| Recharge | 4–6 hours to 90% capacity | |||||
| PHYSICAL | UPS dimensions (W x D x H) | 3.9 x 11.3 x 5.6 in | 5.7 x 13.8 x 6.3 in | 5.7 x 15.6 x 8.1 in | ||
| Shipping dimensions | 5.5 x 13.1 x 8.7 in | 7.5 x 17.4 x 10 in | 9.1 x 19.3 x 11.3 in | |||
| UPS weight | 9.5 lbs | 10.8 lbs | 17.6 lbs | 24.5 lbs | 25.4 lbs | |
| Shipping weight | 10.1 lbs | 11.5 lbs | 19.4 lbs | 27.1 lbs | 28.0 lbs | |
| Line cord | 5 ft 5–15P | C13 to 5–15P* | 5 ft 5–15P | 4 ft 5–15P | 4 ft 5–20P | |

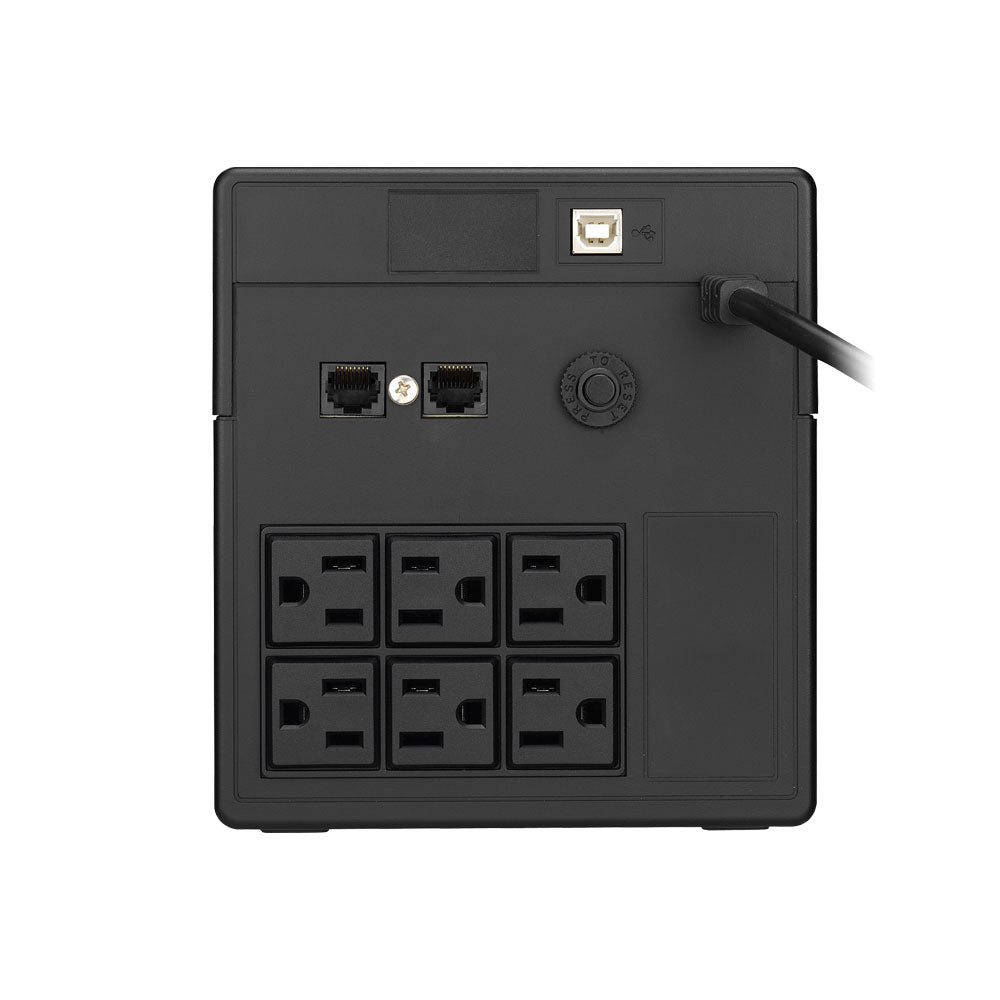

| Receptacles | (4) 5–15R | (6) 5–15R | (8) 5–15R | |||
| Cooling | Convection cooled | Fan cooled | ||||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||||
| Humidity | 0–90% | |||||
| Altitude | 11,500 ft above sea level | |||||
| INDICATORS & ALARMS | LCD display | AC mode, battery mode, load/battery level, input/output voltage, overload fault, low battery | ||||
| Data line protection | N/A | RJ45 | ||||
| APPROVALS | RoHS | UL, cUL, RoHS | ||||
| WARRANTY | 3 years electronics, 3 years battery (USA and Canada) | |||||
| COMMUNICATIONS INTERFACE | USB | USB, RS-232 | ||||
| INCLUDED IN BOX | Shutdown and monitoring software, USB cable, user manual | |||||
