Xtreme Power Conversion XST-400 400VA / 240W 120V Standby UPS
The compact XST is a single phase standby UPS designed to deliver power protection to small routers, switches, desktop PCs, VoIP equipment, phone systems, and point of sale equipment. A vital addition to any home office, it enables graceful shutdown of equipment during a longer power outage.
Product Snapshot
| MODEL NUMBER | XST-400 | XST-600 | XST-800 | |
|---|---|---|---|---|
| INPUT | Capacity | 400VA (240W) | 600VA (360W) | 800VA (480W) |
| Voltage | 120VAC | |||
| Frequency | 60Hz | |||
| OUTPUT | Voltage | 120VAC | ||
| Waveform | Sine wave (normal), simulated sine wave (battery mode) | |||
| Frequency | 60Hz ± 1Hz | |||
| Transfer time | 2–6ms | |||
| BATTERY | Battery type | Sealed, maintenance free lead acid | ||
| Battery quantity and size | (1) 12V 4.5AH | (1) 12V 7AH | (1) 12V 9AH | |
| Recharge | 8 hours to 90% capacity | |||
| PHYSICAL | UPS dimensions (W x D x H) | 3.2 x 8.9 x 8.1 in (vertical stand position) | ||
| Shipping dimensions | 4.7 x 11.4 x 11.0 in | |||
| UPS weight | 4.8 lbs | 5.9 lbs | 6.8 lbs | |
| Shipping weight | 5.6 lbs | 6.7 lbs | 7.6 lbs | |
| Line cord | 5 ft, 5–15P | |||

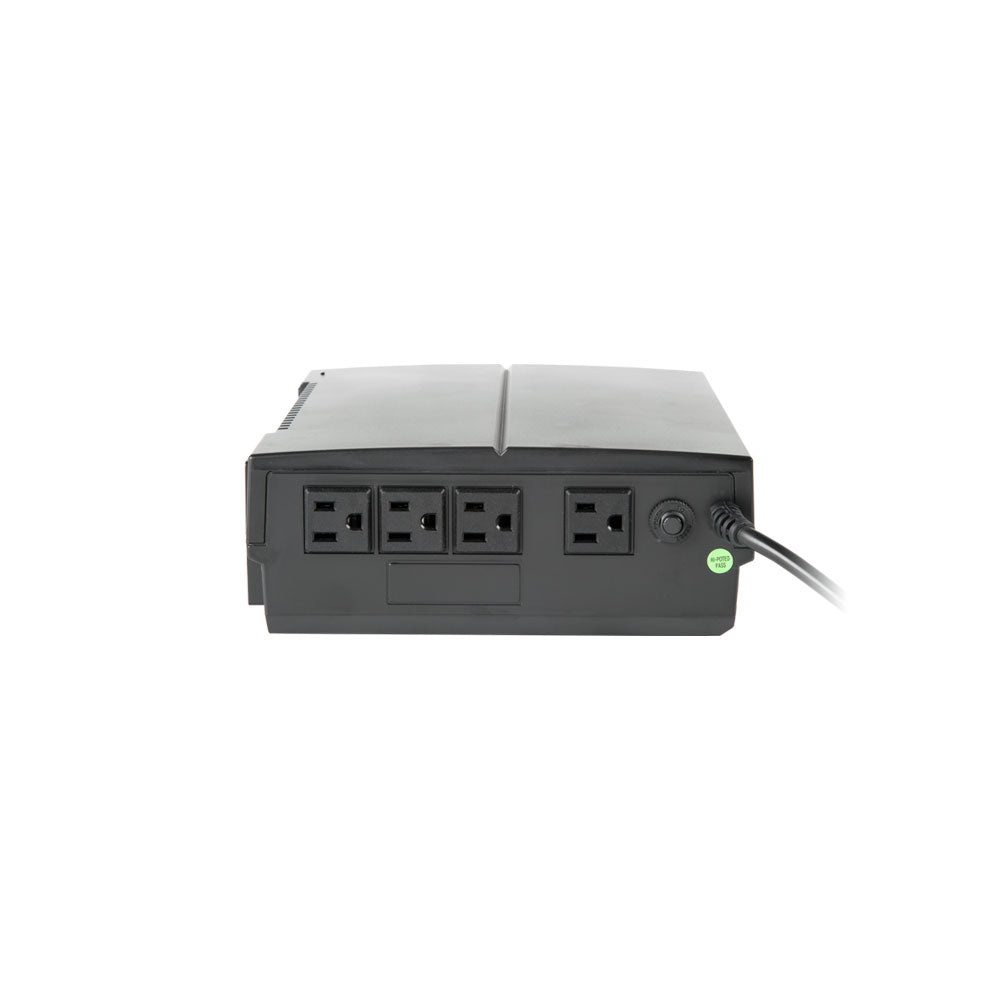

| Receptacles | (4) NEMA 5–15R | |||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||
| Humidity | 0–90% | |||
| Altitude | 11,500 ft above sea level | |||
| INDICATORS & ALARMS | AC mode | Blue LED ON | ||
| Battery mode | Blue LED flashes every 10 sec; audible alarm flashes every 10 sec | |||
| Low battery | Blue LED flashes every sec; red LED ON; audible alarm flashes every sec | |||
| Fault | Red LED ON; continuous audible alarm | |||
| Over temperature protection | Red LED flashes every 0.5 sec | |||
| WARRANTY | 2 years electronics, 2 years battery (USA and Canada) | |||
| COMMUNICATIONS INTERFACE | None | USB | ||
| INCLUDED IN BOX | User manual | ViewPower CD, USB cable, user manual | ||
|
|
