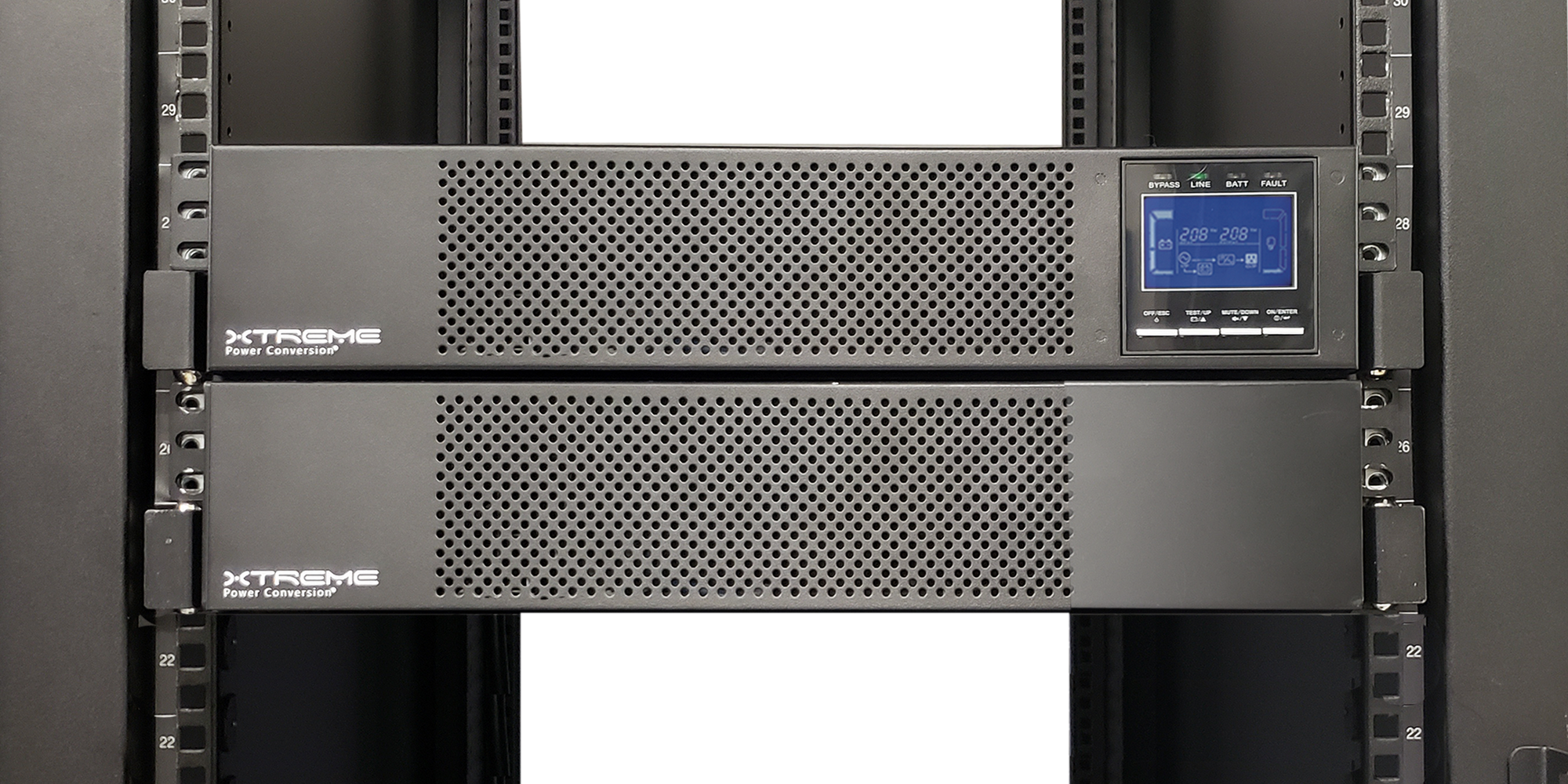

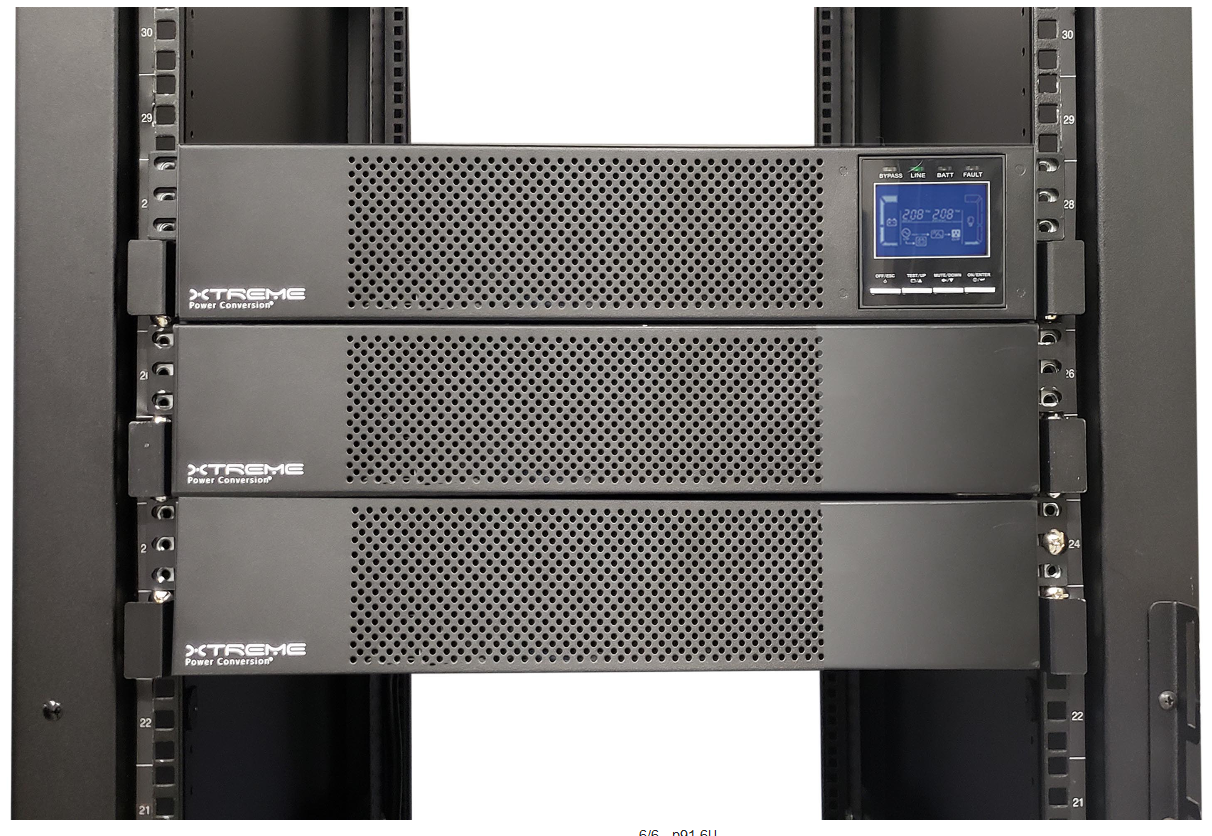

Xtreme Power P91-5k 5000VA/5kW 110-300VAC Online UPS

Designed for high density critical loads, the P91 delivers industry leading reliability, efficiency and flexibility.

P91 can be configured for online or ECO mode operation for efficiency of up to 99%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements.

Why Choose the P91 5–10kVA Series?

The P91 5–10kVA platform is designed for organizations that require enterprise-level online UPS protection with scalable runtime flexibility and centralized rack power architecture. Unlike many traditional UPS systems that force fixed runtime limitations, the P91 allows runtime engineering around actual operational requirements

Key Features:

• 5000VA / 5000W capacity

• Unity output power factor (1.0)

• Online double-conversion topology

• Pure sine wave output

• Zero transfer time

• External battery architecture

• Optional maintenance bypass support

• Up to 99% ECO mode efficiency

• Generator compatible operation

Ideal applications:

• Enterprise server infrastructure

• Telecom systems

• Healthcare technology

• Industrial automation

• Data closets and edge computing

• Network core infrastructure

• Broadcast systems

• Distributed enterprise IT environments

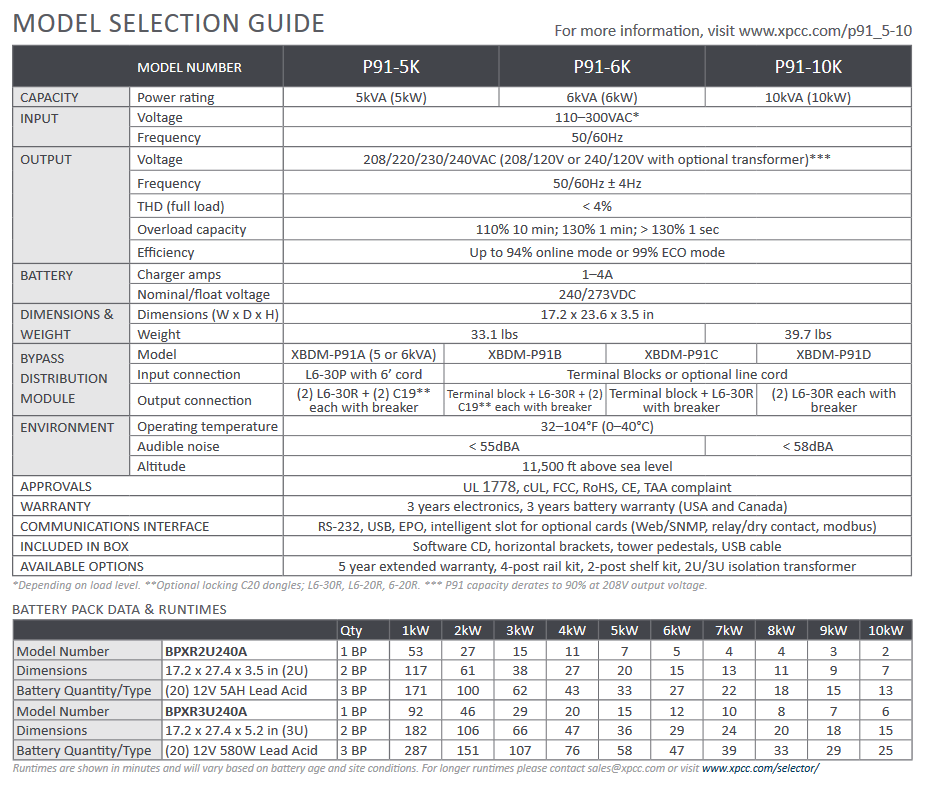

Specifications:

• Power ratings: 5kVA (5kW)
• Voltage: 110–300VAC
• Frequency: 50/60Hz +/-0.1Hz
• Line cord: L6-30P with 6’ cord
• Receptacles: (2) L6-30R + (2) C19 each with breaker
• Battery type: Lead acid
• Dimensions (W x D x H): 17.2 x 30 x 3.5 in (2U)
• Weight: 120lbs
• Warranty: 3 years electronics, 3 years battery warranty (USA and Canada)

NOTE:  System does not have internal batteries and requires an external battery module
